Rosco DMG DASH Quad Kit CRMX

Rosco's DMG DASH is the smallest member of Rosco’s MIX® Family of LED lights. Its compact design provides filmmakers with high quality light output and precise color control from a durable, handheld light fixture. This versatile LED light features powerful output from its durable and weatherproof 5″ x 3.1″ x 1.1″ (12.8cm x 8cm x 2.8cm) aluminum alloy housing. The DMG DASH has the same six-chip MIX LED technology that’s inside all of Rosco’s MIX LED lights to provide a broad color spectrum and superior color mixing. DMG DASH can also create white light with high CRI and TLCI values (1700K – 10,000K), and over 130 True Rosco Color™ gel matches.

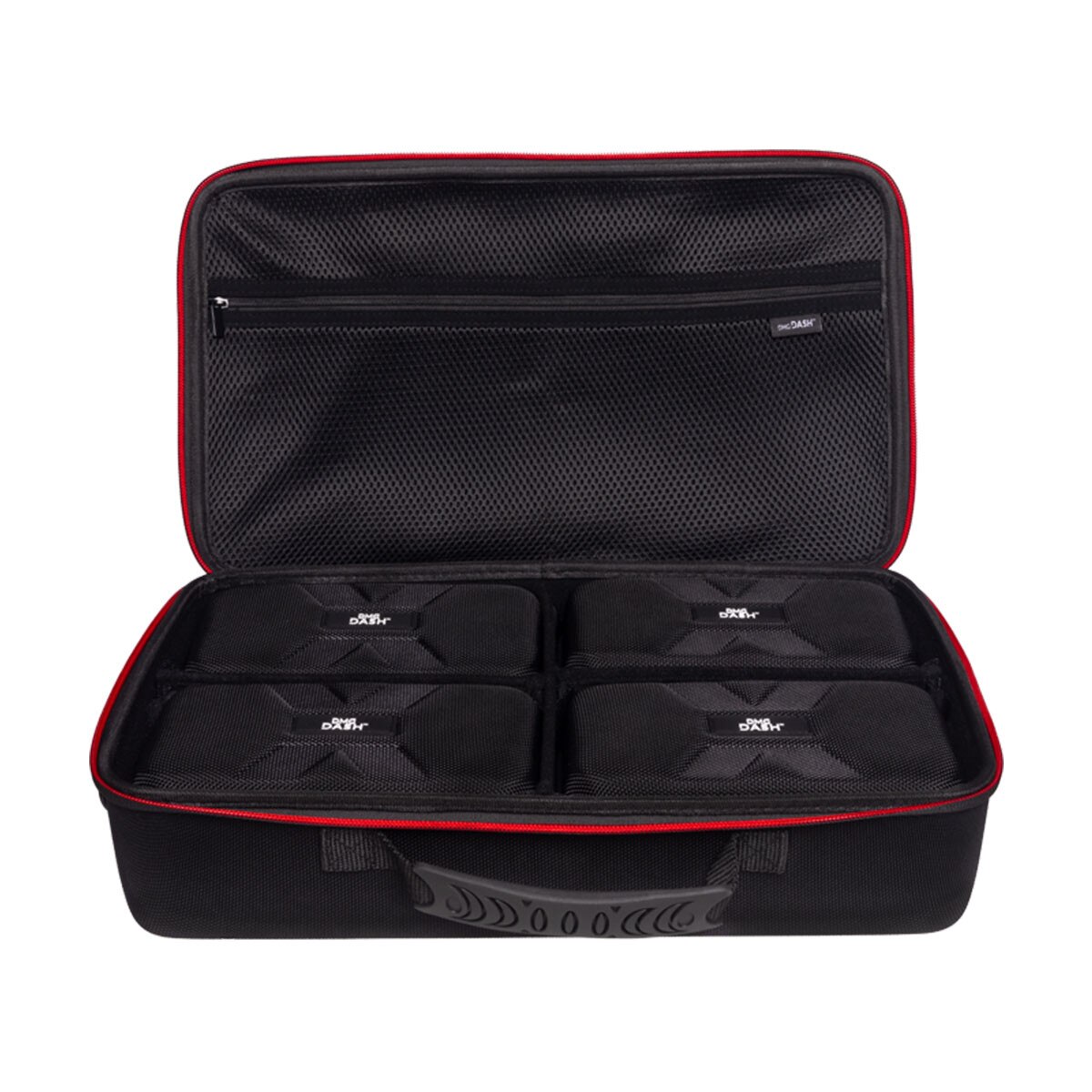

The DMG DASH Quad Kit CRMX contains four complete DMG DASH Pocket LED Kits inside a durable carrying case. Because each individual Pocket LED Kit is loaded with accessories, every Quad Kit comes with four full sets of beam-shaping and mounting accessories - plus a DMG DASH LINK4 that connects the four lights together.

Case Study: A "1 Minute" Introduction to DMG DASH by Tatiana Massano

Features:

Superior Color-Mixing:

• DMG DASH features Rosco’s patented, six-chip MIX® Technology – enabling it to produce the same color-quality and True Rosco Color™ gel matches that other MIX lights do!

Fully Accessorized:

• Every Quad Kit is loaded with four of everything, including Flat Diffusers, Dome Diffusers, Eggcrates, Gel Holders, Light Stand Mounts, Magnetic Mounts, Charging Cables, and Cases.

Multiple Control Options:

• DMG DASH is controlled by its onboard user interface, or via the free myMIX® app. A wireless DMX model featuring LumenRadio for control via W-DMX & CRMX is also available.

Pocket-Sized But Powerful:

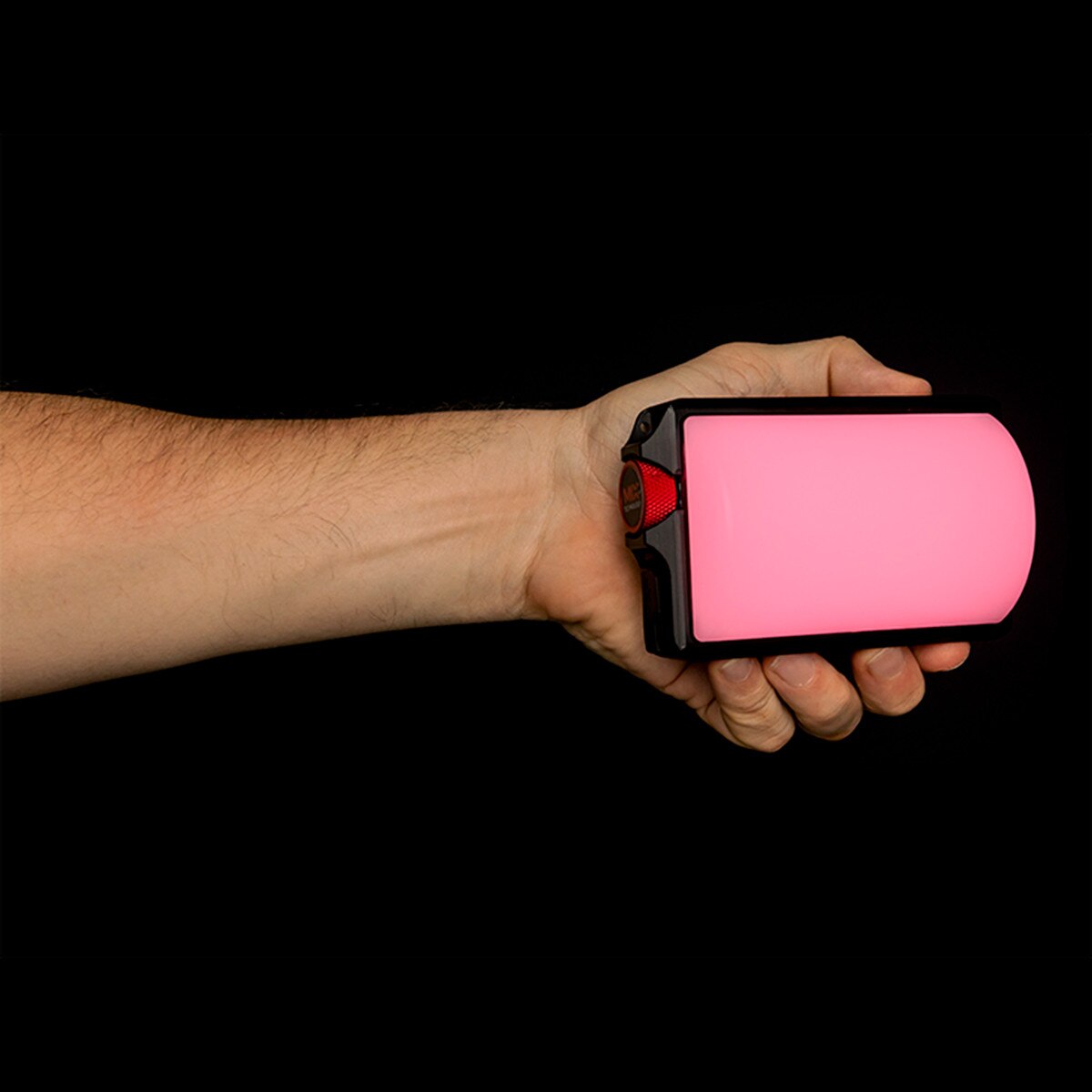

• Don’t let its small size fool you, the battery-operated DMG DASH can produce up to 500 lumens of output – all from a fixture that fits in the palm of your hand.

Link Together - Or Deploy Independently:

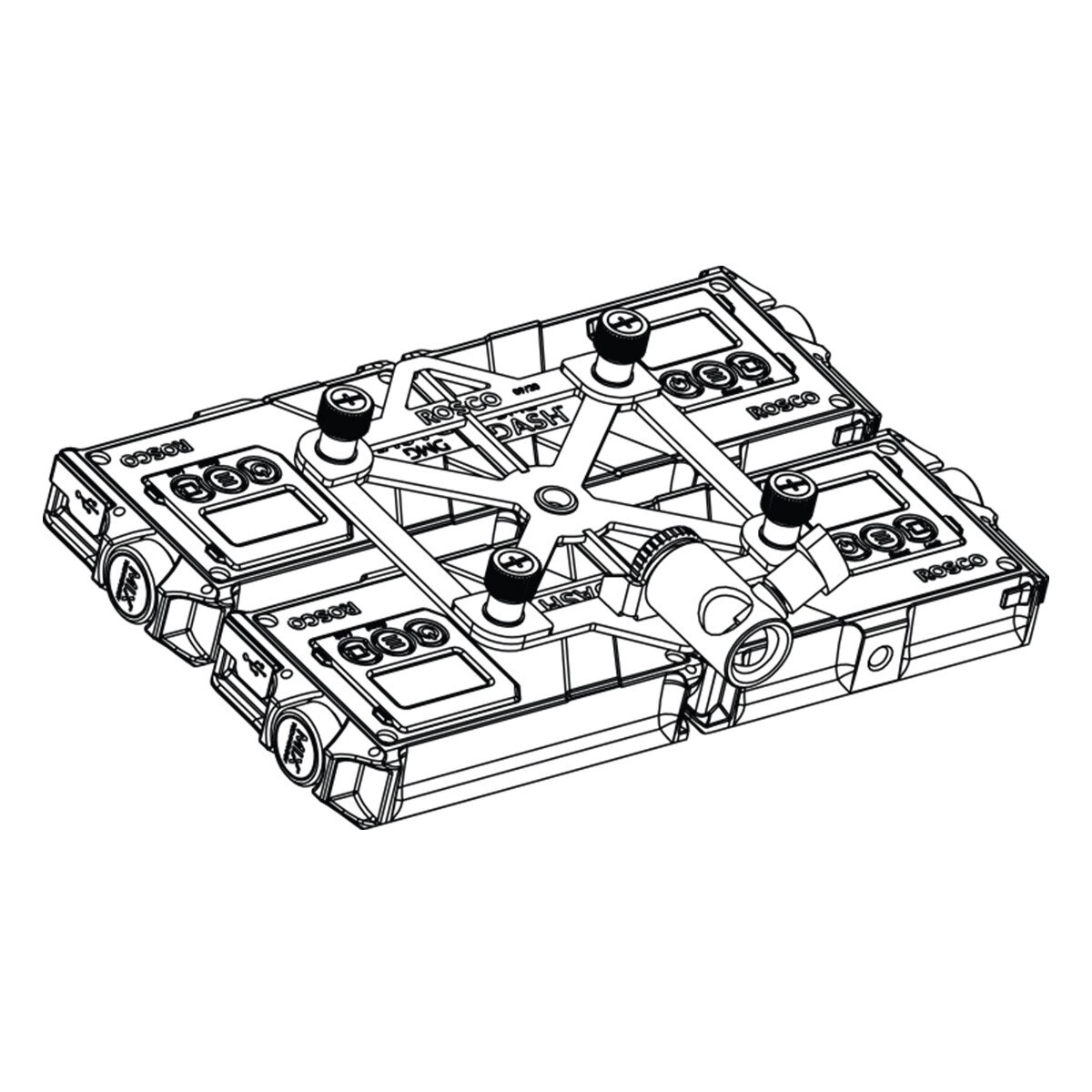

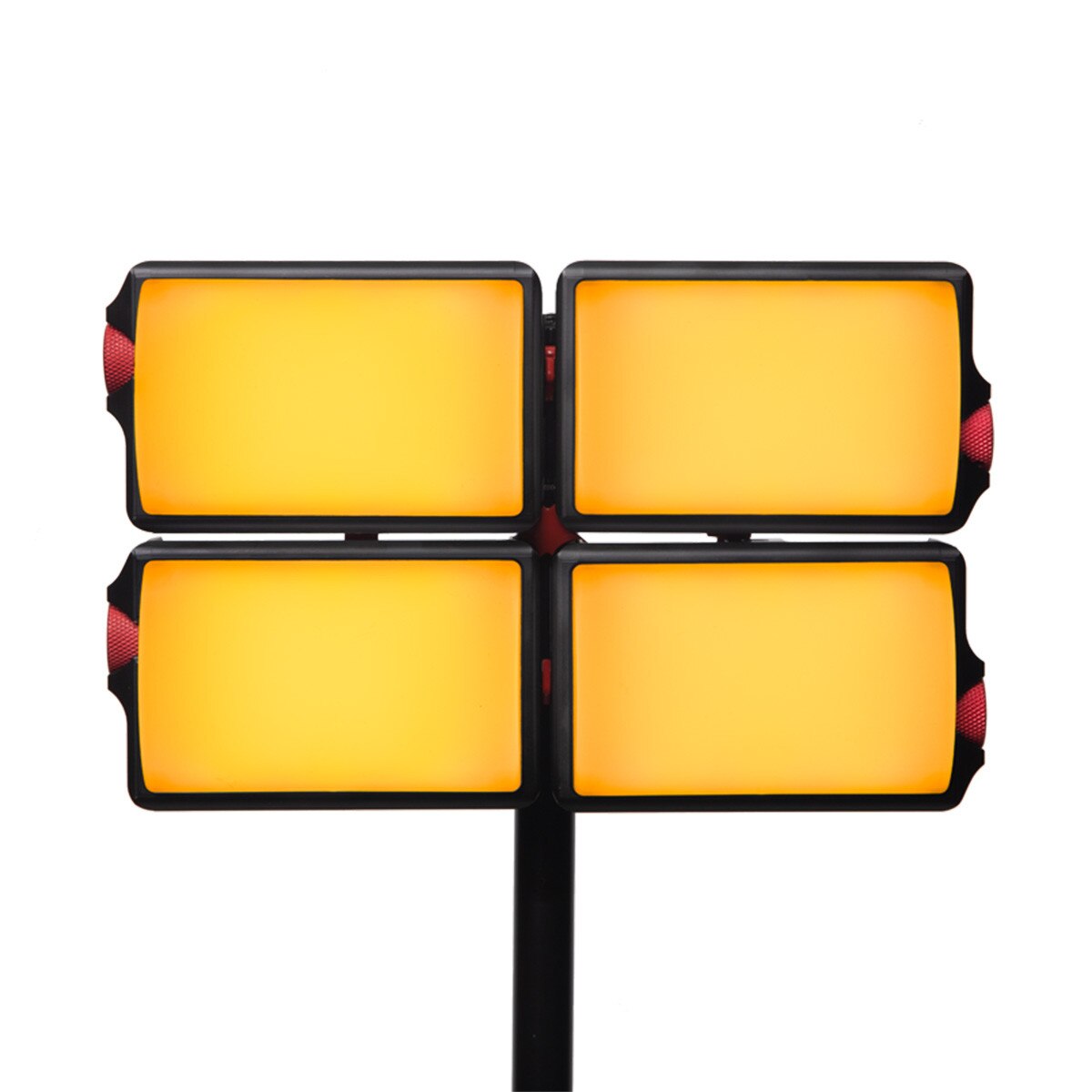

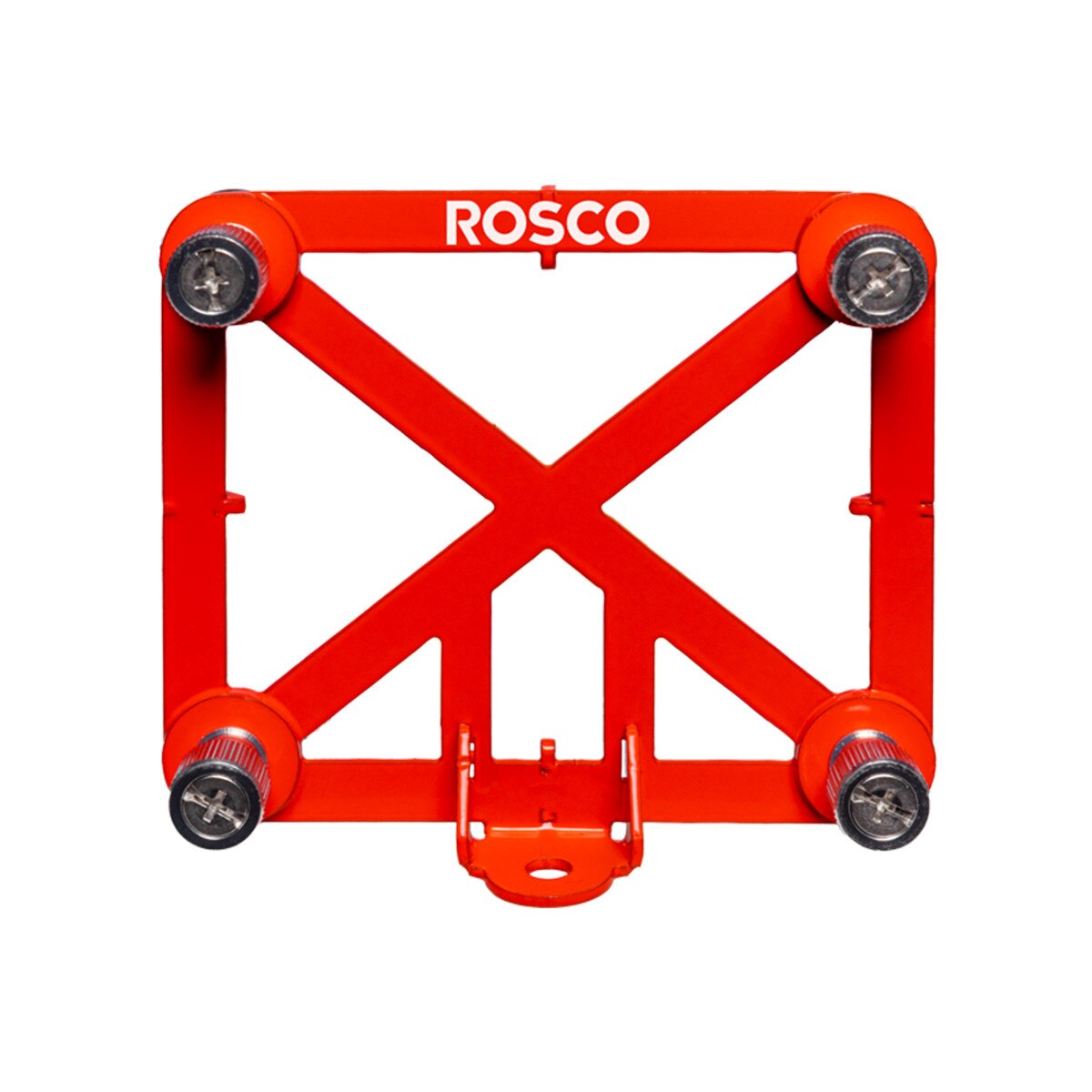

• The DMG DASH Quad Kit includes a DMG DASH LINK4 accessory that connects the four lights together. This enables the user to deploy the four DMG DASH units independently or link them together and control them as a group via the myMIX app to create a single, larger light source.

Weatherproof & Durable:

• It takes a thrashin’ and keeps on DASHIN’. DMG DASH is constructed from a lightweight aluminum alloy to provide a shock-resistant and IP65 weatherproof housing.

Note: In order to control DMG DASH Quad Kit, you must use the myMIX app, which is available for iOS® and Android™ devices.

Download the myMIX App:

• iOS: Download The myMIX App For iOS
• Android: Download The myMIX App For Android

Specifications:

• Lux @ 1m (3.3 ft.): 250 Lux @ 6500K
• Lux @ 1m (3.3 ft.) – Boost Mode: 320 Lux @ 6500K
• Maximum Power: 14W
• Battery Runtime: Three Hours at 100% Intensity (Less In Boost Mode)
• LED Colors: Red, Green, Blue, Lime, Amber, White (4000K)
• Light Modes: WHITE / GEL (with True Rosco Color Gel Matches) / COLOR – HSI & XY (With Rec 709 & Rec 2020 overlays) / EFFECTS / SOURCE MATCH
• Color Temperature: 1700K – 10,000K
• Color Rendering: CRI Average: >95 TLCI Average: >90
• Flicker-Free: Up To 1,000 FPS
• On-Board Control: Local UI: 1.3″ OLED Graphical Display – 128px x 64px
• Wireless Control: Bluetooth BLE via the myMIX® Mobile App - Available for iOS/Android. Wireless DMX (CRMX model only): LumenRadio with CRMX and W-DMX control, plus RDM
• Size: 5″ x 3.1″ x 1.1″ (12.8cm x 8cm x 2.8cm)
• Weight: 12.8 oz (367g)
• Body Material: Aluminum Alloy
• Outdoor Rating: Weather-Resistant – IP65
• Charging Connector: USB Type-C
