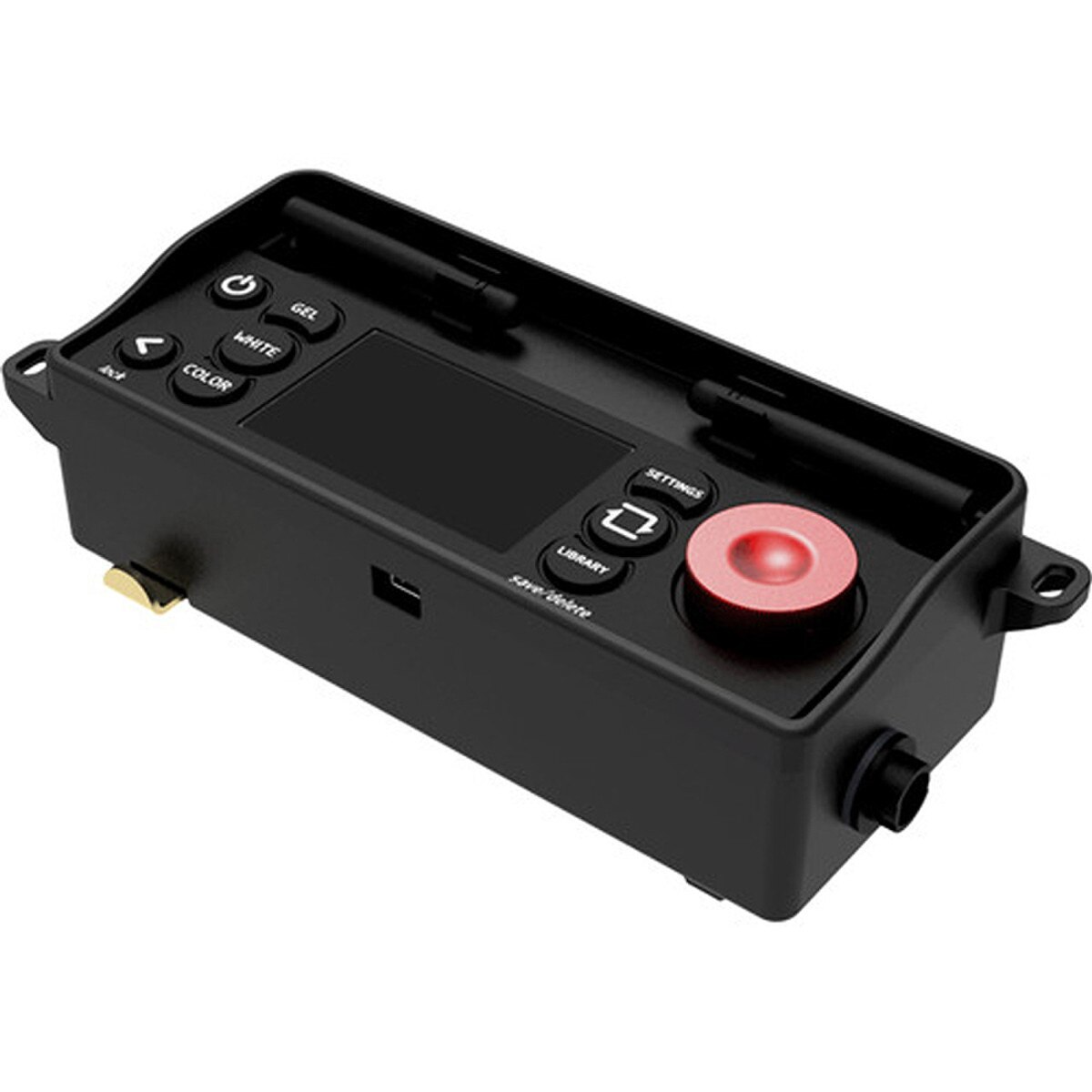

Rosco DMG SL1 & MINI Driver-12 to 35VDC

Required to control the light output of DMG MINI and DMG SL1 lights.

Set lighting technicians know that speed is of the essence when the cameras are rolling. This driver easily controls the DMG SL1 and DMG MINI without complicated menus. Simply choose between five different modes: White Mode, Color Mode, Gel Mode, Effects Mode and Source Match Mode - then adjust the settings of the light as needed.

Mounts onto a DMG MINI or DMG SL1 fixtures using our unique quick-lock system.

Specifications:

• Dimensions: 8.6 x 3.3 x 2.4 in.
• Weight: 1 lb
• Mounting: Quick lock on light and 1/4-20 Kodak female thread
• Input Voltage: 12~35 V
• Output Voltage: 12~36 V
• Connectors: XLR5 female, XLR5 male, RJ45, Chogori 2 pin VDC input, Micro USB, CNLINKO LP-20, 7 pin output
• Local Interface: 240*400 pixels colored screen Rubber Keypad
• Modes: White / Color / Gels
• LED Driving Method: Constant current
• Color Temperature Range: 1700 to 10000°K
• Flicker-Free: Tested up to 4000i/s

Remote Control:

• DMX in: XLR 5 male for DMX512
• DMX out: XLR 5 female for DMX512
• WIFI / LAN
• Bluetooth (BLE)
• Lumen Radio Timo FX for wireless DMX

Communication Protocols:

• DMX512 via XLR
• Input and output: RDM
• Art-Net via RJ45 and Wifi
• Mix Communication protocol (MCP) via Bluetooth
• Wireless DMX CRMX from Lumen Radio
• Housing Material: PC/ABS
• Upgrades: Yes, via micro USB and Bluetooth
• IP Rating: 20

DMG Mini & SL1 Datasheet
DMG Controller User Manual.pdf
DMG SL1 & MINI User Manual.pdf
