Rosco MIXBOOK Digital Swatchbook

(0)No Reviews yet

If you add this item, you're only $145 away from free shipping! (Motor Freight / Oversized Excluded)

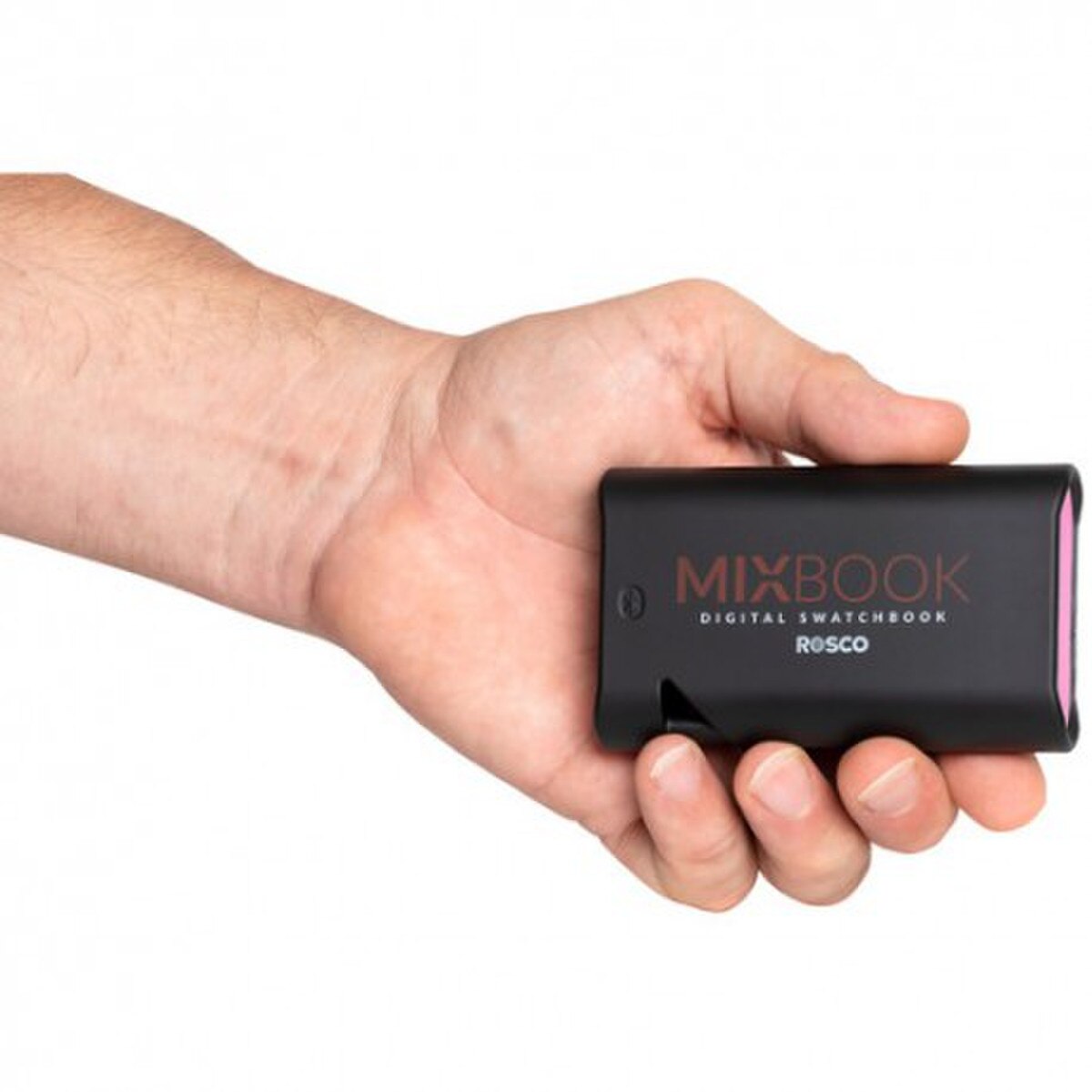

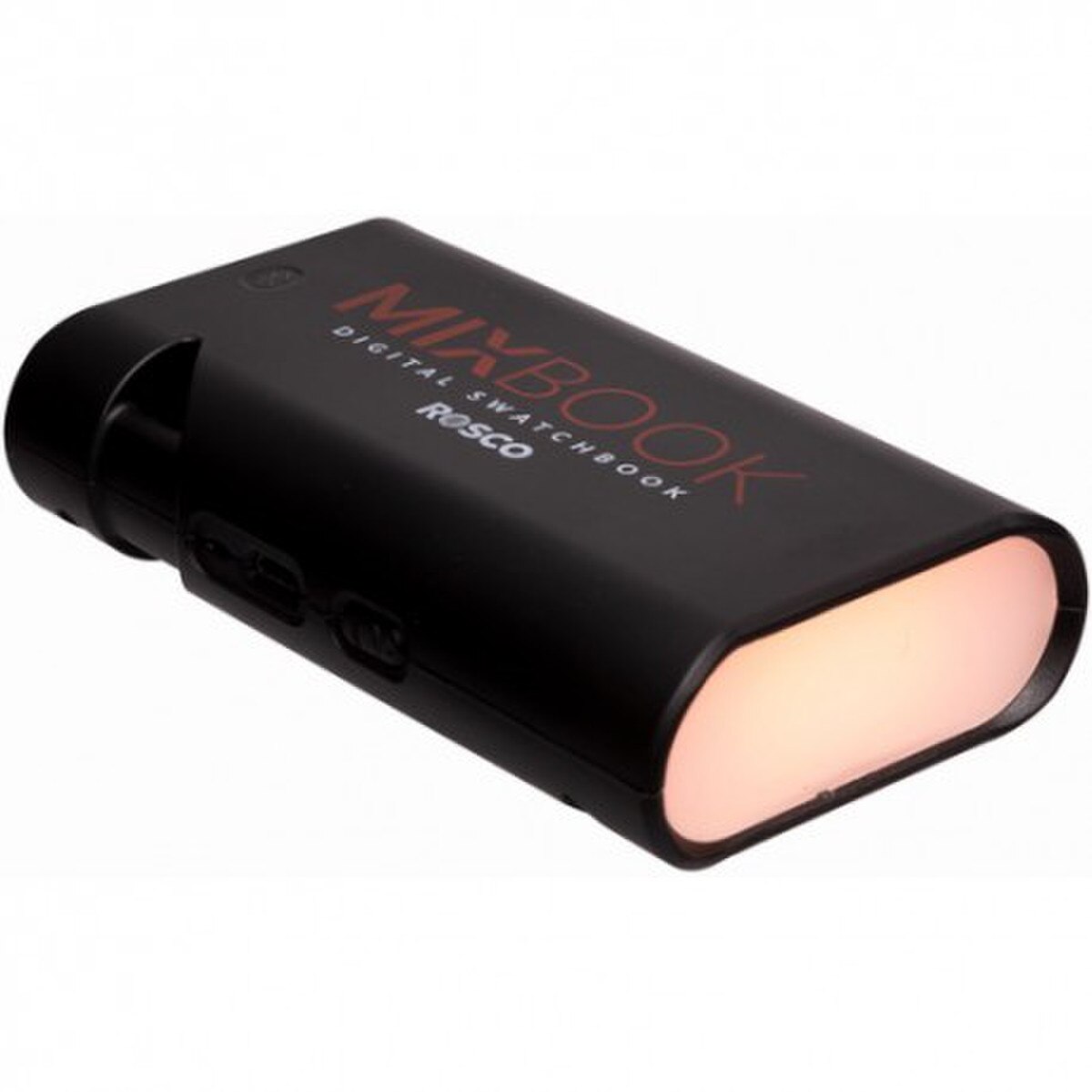

MIXBOOK is a digital swatchbook that enables users to pre-visualize their gel and LED colors, and then communicate those color choices with other members of their team. MIXBOOK contains the same LED technology found in MIX® fixtures, which will ensure perfect color matches between their MIXBOOK and any MIX lights they have on set.

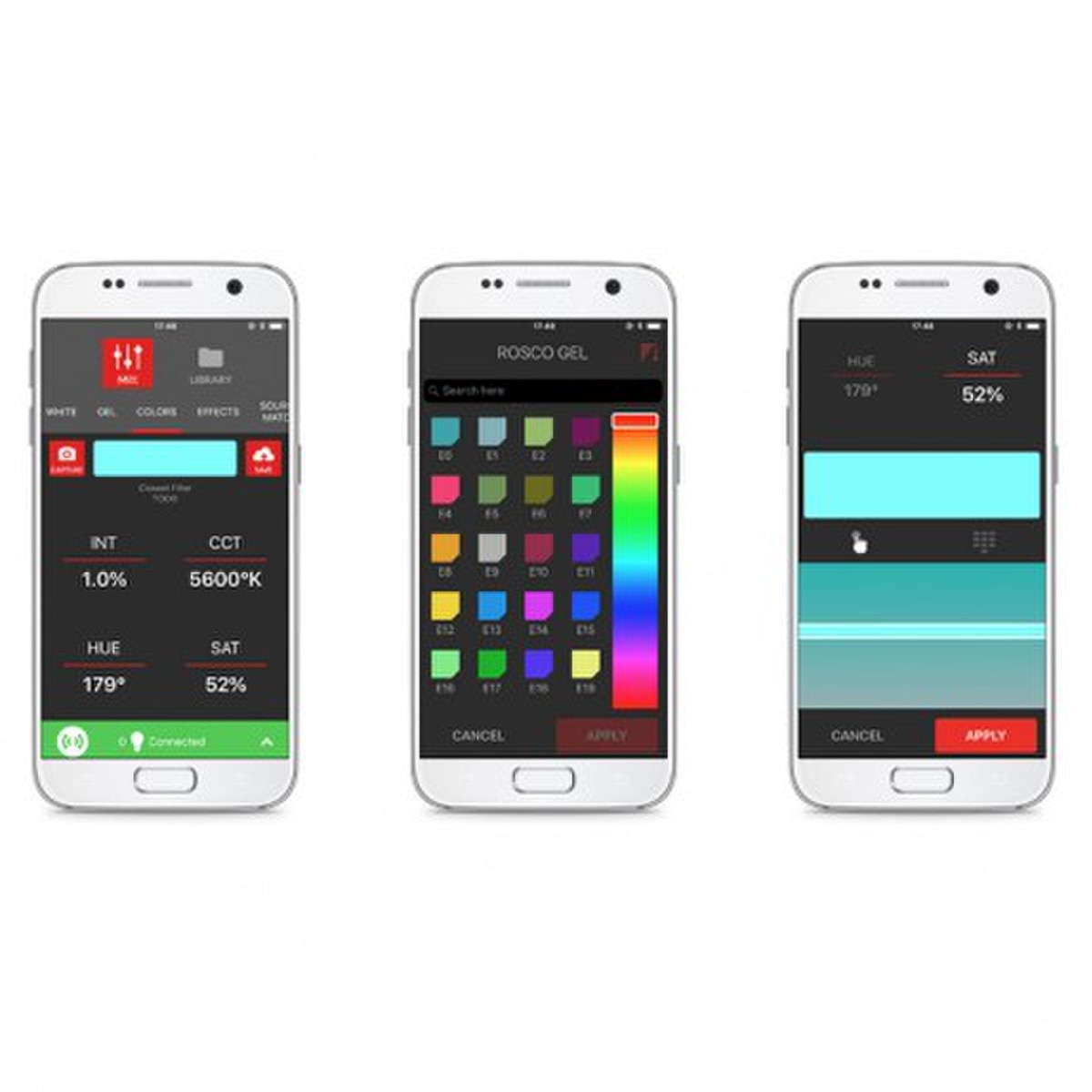

MIXBOOK is controlled by our myMIX™ app. Through the app, users can generate their desired color by adjusting hue, saturation, and intensity levels, or by selecting xy values, and then send that color to MIXBOOK. Through a Bluetooth connection with the myMIX app, MIXBOOK enables users to actively explore the performance of their color choices in an environment, and continue to modify it through the app. Once the desired color has been achieved, users can save their colors to the cloud and share them with their team.


  • Size: 10 x 6 x 2.6cm (3.9 x 2.3 x 1'')
  • Weight: 110 g (3.8 ounces)
  • Operating Temperature: -4 °F to +104 °F (-20 °C to 40 °C)
  • Color Temperature Range: 1700°K to 10 000°K
  • Flicker Free: Up to 200 i/s
  • CRI: CRI Average > 95
  • TLCI-II: TLCI Average > 90
  • Colored Light: Full Color Gamut with Hue, Saturation and White base control
  • Gels: True Rosco Color™ gel matches
  • Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
  • Finish Color: Matte black

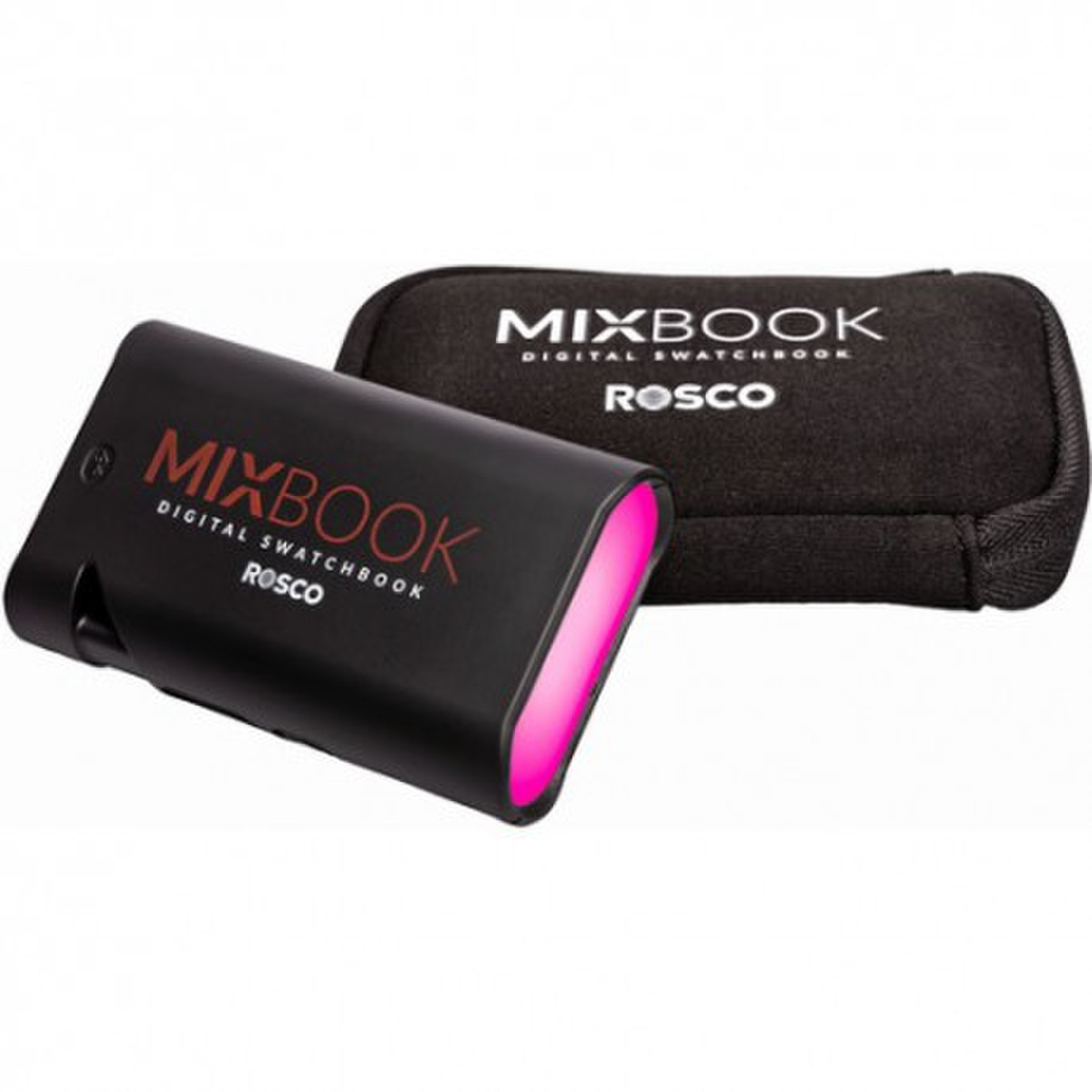

  • Packaging: Neopren pouch with belt strap
  • Mounting Options: 1/4 inch female threading, hole for spring hook
  • Housing Material: ABS+PC plastic
  • Humidity Tolerance: IP20
  • Photometrics: 100 lux @0.5m 26fc at 1'
  • Input Voltage: 5 VDC
  • Power Consumption: 2 W
  • Power Connections: Micro USB
  • Control System: Bluetooth via myMIX App

MIXBOOK Datasheet.pdf
lMIXBOOK Startguide.pdf
lMIXBOOK User Manual.pdf
