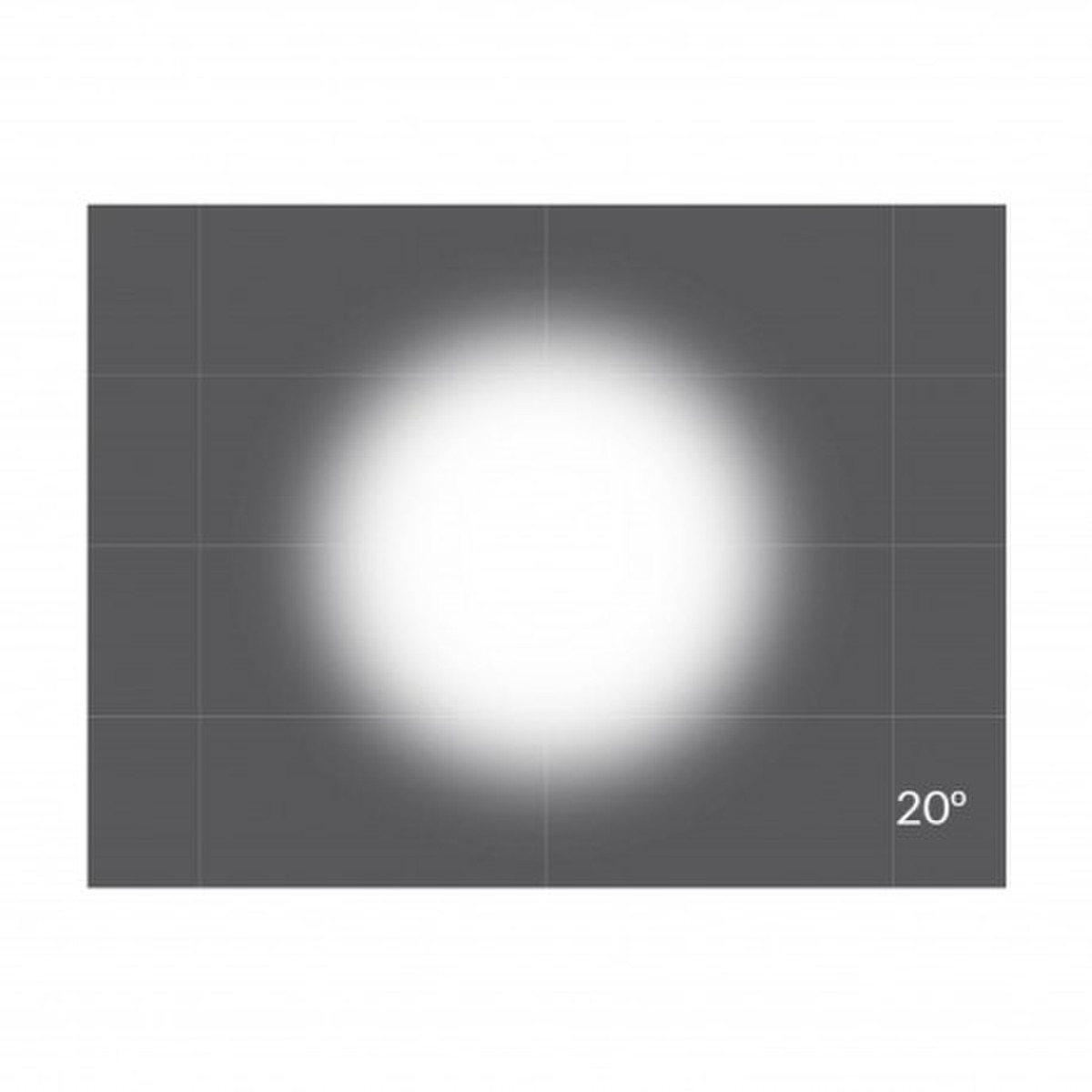

Rosco OPTI-SCULPT - 20 deg. - 24"x20" Sheet

(0)No Reviews yet
$87.40
SKU: Rosco 108100202420

Details

Rosco OPTI-SCULPT Filters provide precise angular beam control – enabling lighting professionals to accurately and affordably control the shape of their light with increased brightness over traditional diffusion filters. Rosco’s unique, proprietary process features engineered light distribution that has been laboratory tested for accuracy and repeatability.



Available in standard 24”x20” and larger 24”x40” seamless sheets, OPTI-SCULPT filters can easily be cut-to-size to fit any light. The performance of these durable, heat resistant, flame retardant filters is not affected by dust or the oils from hands. Thanks to their heat-resistant base, OPTI-SCULPT can be used on both LED and traditional tungsten lighting fixtures.

Rosco OPTI-SCULPT™ Lenses – More Than Just A Frost Blog Post by Charlie Morgan Jones

Features & Specifications:

  • Thickness: 10mil (254µ)
  • Substrate: Clear polycarbonate
  • Contains flame retardant additive
  • Contains UV inhibitors

Available Sizes:

  • 24"x20" (60cm x 50cm) Sheet – Seamless
  • 24"x40" (60cm x 100cm) Sheet – Seamless

Thermal Performance:

  • -40°F – +320°F (-40°C – +160°C)

Transmission:

  • >85%

Flame Retardant Rating:

  • M1, B1, C1, BS3944 PART 1 1992, NFPA 701

Installation:

  • Each OPTI-SCULPT Filter has a textured side and a smooth side. In order to achieve the filter's stated beam shape, position the OPTI-SCULPT filter with the smooth side towards the lamp. For the Reversible 40R60 OPTI-SCULPT Filter – position the filter with the smooth side towards the lamp to achieve the 40° beam shape and the textured side of the filter toward the lamp to achieve the 60° beam shape.


Rosco Opti-Sculpt Data Sheet.pdf
Rosco Opti-Scultp Embedded ID Number Key Chart.pdf
Rosco Opti-Sculpt Beam Patterns.pdf
Rosco Opti-Sculpt Certificate of Conformity.pdf
Rosco Color Filter RoHS Declaration of Compliance.pdf
Dramatic Architectural Lighting Solutions Brochure.pdf
Case Study: OPTI-SCULPT™ Lenses Provide Consistent Lobby Lighting For Immersive Van Gogh by Joel Svendsen
Case Study: New High School LED System Washes The Stage With OPTI-SCULPT™ by Joel Svendsen
Case Study: Shape The Light To Fit Your Stage With Rosco OPTI-SCULPT™ Lenses by Joel Svendsen
