Rosco Pica Cube 3W - White

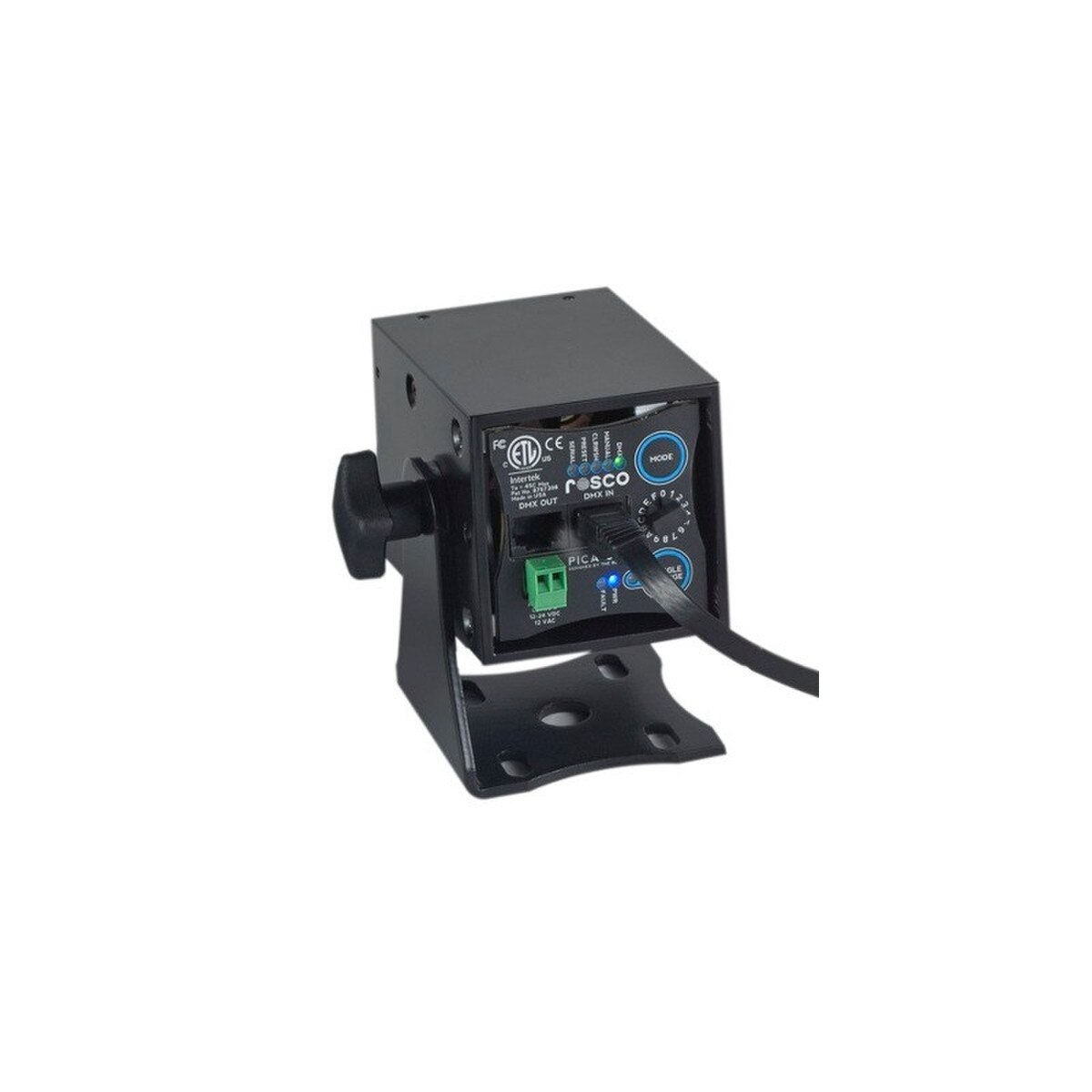

Image is for reference only. Fixture finish is white.

Good things come in small packages and Pica Cube is no exception. Using high quality CREE XML LED emitters, Pica Cube 3W outputs more than 1005 Lumens. This model offers a fixed 2800K warm color temperature. Pica's compact size and extremely light weight make it perfect for use in tight spaces in architectural, retail, and theatrical environments. Mount Pica anywhere with the versatile mounting bracket, or attach it to any track system for the ultimate flexible lighting configuration.

Features:

• Bright 1005 Lumen output
• Fixed 2800K Warm
• Optional filament mode mimics the delayed blackout glow of incandescent lamp
• Low 24W maximum power consumption allows Pica to be used anywhere
• Operates on 12-24VDC or 12VAC
• Optional Power + Data input from a single feed
• Comes with a complete lens set including 20 degrees spot, 40 degrees medium and 60 degrees wide flood
• Flicker-free DMX dimming (0~100%) and control
• Intuitive on-board controls for manual operation
• 2.5" footprint / weighs only 0.9 lb
• Available track mount arrangements to mate with common track lighting systems
• ETL, CE certifications

Specifications:

• LED: 3 x 4W Cree XM-L LED
• Output: 1005 Lumens (no lens)
• Lumen Maintenance:
  • 100,000 hours L50 at 25 degrees C
  • 50,000 hours L50 at 45 degrees C
• Color Range: 4.2 billion discrete mixes (255 x 255 x 255 x 254)
• Color Temperature: 2800K
• Operation:
  • DMX: 8- or 16-bit DMX-512
  • Manual: On-board user interface sets color, output
• Power/AC Input:
  • Adapter: 100-240VAC In/12VDC Out
  • Rosco Portal 125: 12VDC+DMX via Cat5 cable
• Data: RJ45 IN/OUT - DMX
• Power Consumption: 24W maximum at 100% output
• Operating Temperature: -13 degrees to 113 degrees F (-20 degrees to 45 degrees C)
• Humidity: 0 - 95% non-condensing
• Physical:

  • Dimensions: 2.5" x 2.5" x 3.6" (63.5mm x 63.5mm x 91mm) without bracket
  • Weight: 0.9 lbs (0.41kg)
  • Housing: powder-coated aluminum extrusion
• Approvals and Listings:
  • FCC Class A Radiated and Conducted
  • ETL / UL Standards 1573 and 8750
  • cETL / CSA C22.2#166-M1983
  • CE
  • RoHS Compliant
  • IP20 Rated
  • Dry locations only
