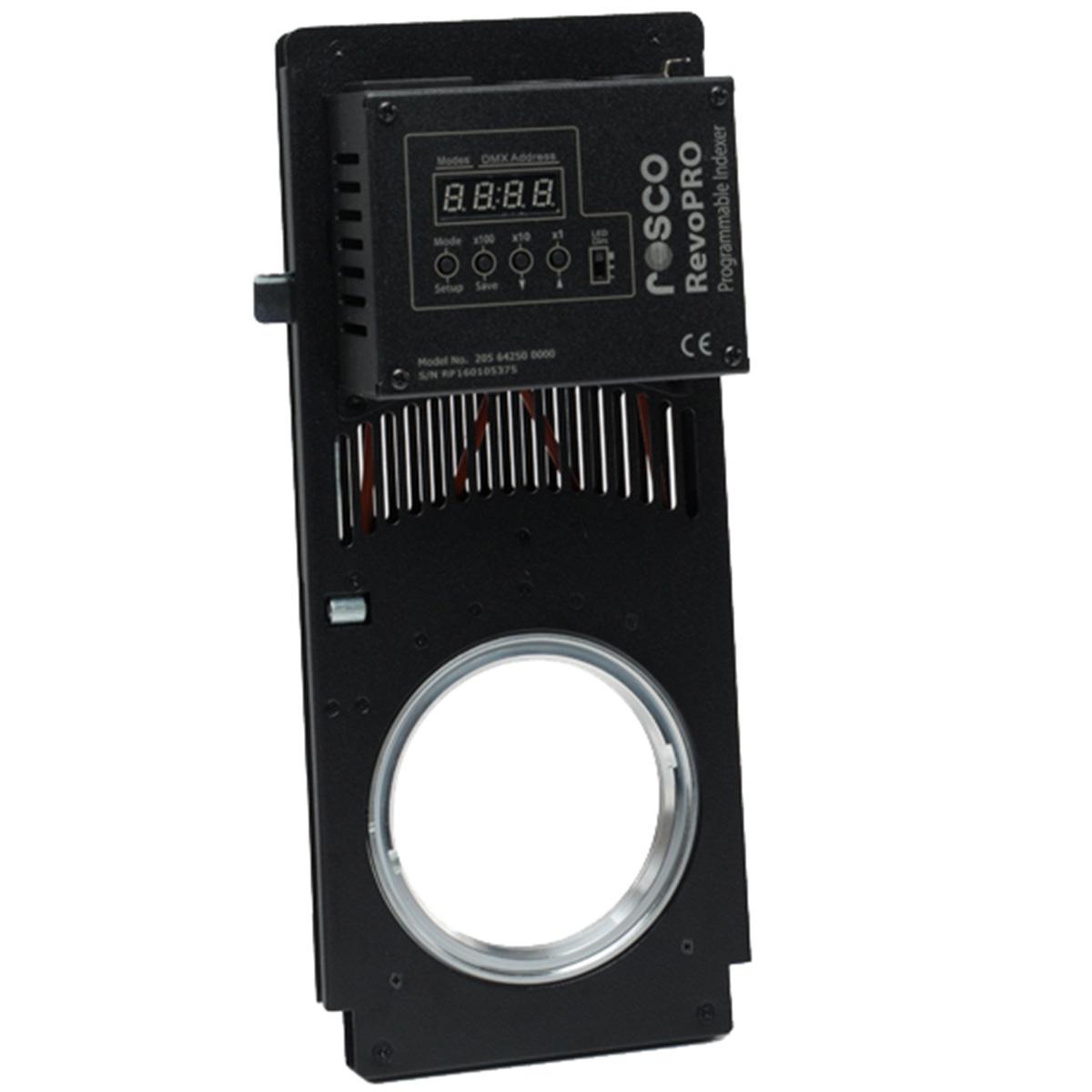

Rosco RevoPRO Programmable Dual Indexing Gobo Rotator

Reflected water, flickering fire, swaying trees, morphing textures, spinning logos, and eye-catching signage. This is just part of an endless list of effects that lighting designers can create using the RevoPRO dual programmable rotator and Rosco steel and glass gobos.

RevoPro works anywhere. Dual independent motors, high and low resolution indexing, and flexible operations modes make RevoPRO perfect for the most sophisticated lighting rigs in theatre, theme parks, and live events. The auto sensing / auto switching internal power supply means RevoPRO works anywhere you have mains power available.

Features and benefits of the RevoPRO:

• Hi temperature silicon belt drive for silent operation
• 100-240v auto sensing internal power supply for global installation
• Onboard 5-pin DMX input and pass thru for quick installation anywhere in the DMX chain
• Dual independent stepper motors allow for any combination of speed and direction between gobos
• Precise and reliable stepper driver provides constant torque to prevent stalls even at slow speeds
• 8-bit or 16-bit indexing control on both gobos allows a designer to create effects without limits
• 7 modes of DMX control for maximum flexibility at the console
• 99 preset effects library for stand-alone (no DMX) operation
• 1 stored effect location to customize speed and direction without no DMX needed
• Gobo installs using a unique threaded collar to prevent slipping with gobos from 0.1 -3.5mm thick
• Innovative "Friction Lock" for secure installation

Specifications:

• Power: 100-240vAC 50/60hz 1A max
• Connector Type: IEC C13 on Mains power cable
• Data Connection: 5-Pin XLR Input and Pass Thru for DMX
• Fixture Compatibility: ETC Source Four, ETC S4 Zoom, Selecon Pacific, Selecon Pacific Zoom, Strand SL, Altman Shakespeare
• Gobo Type: Metal, Glass, Effects Glass

Gobo Size:

• OD Max 3.39" (86mm)
• OD Min 3.15" (80mm)
• IA Max 2.95" (75mm)
• Thickness Max: 0.14" (3.5mm)
• Speed: 0.5rpm - 24rpm

Precision:

• 370-degree, 8-Bit Indexing - 370-degree (1.45-degree steps)
• 370-degree, 16-Bit Indexing - 370-degree (0.005-degree steps)

Control:
DMX512 - 7 operation modes using 2, 4, or 6 channels of DMX. 99 Preset Effects Library 1 Stored Address for custom speed / direction configuration

• Dimensions: 4.67 x 10.875 x 0.53/2.4" (119 x 276.2 x 13.5/62mm)
• Weight: 31 oz (880g)
• Carton: 11.625 x 11.25 x 3.5"
