Mirror Ball Motor W/ Hanging Bracket & Clamp - 75lb Capacity - 2 RPM
Details

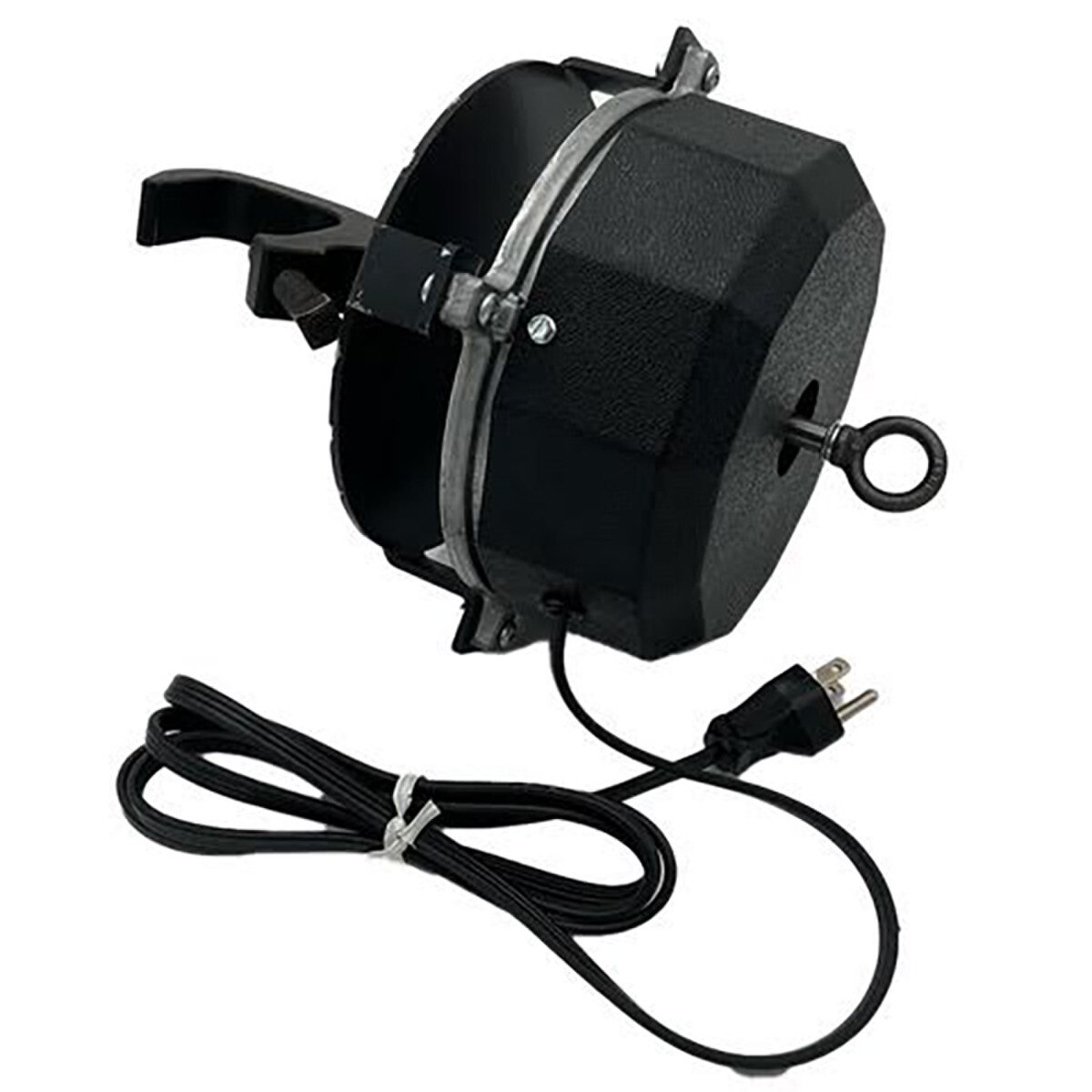

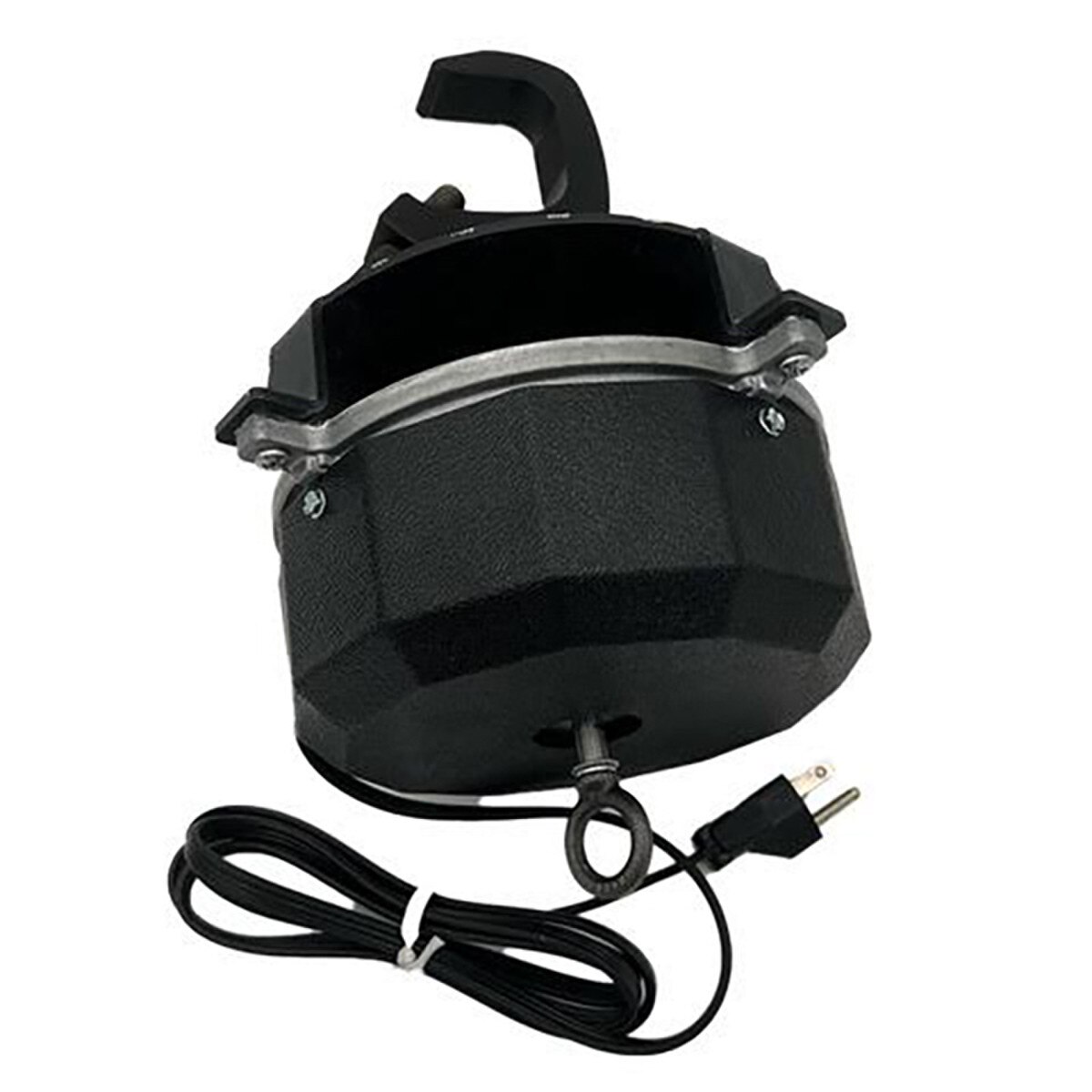

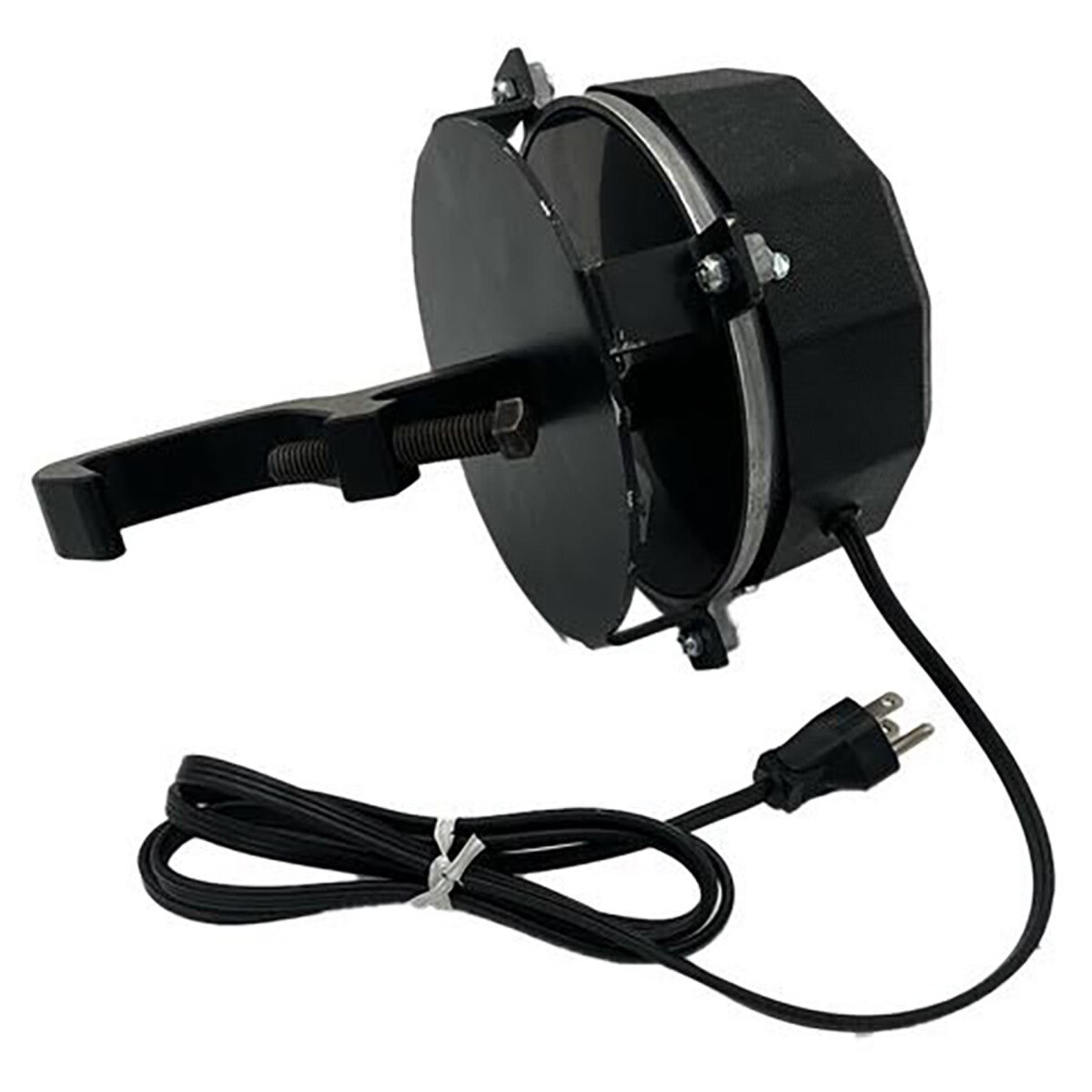

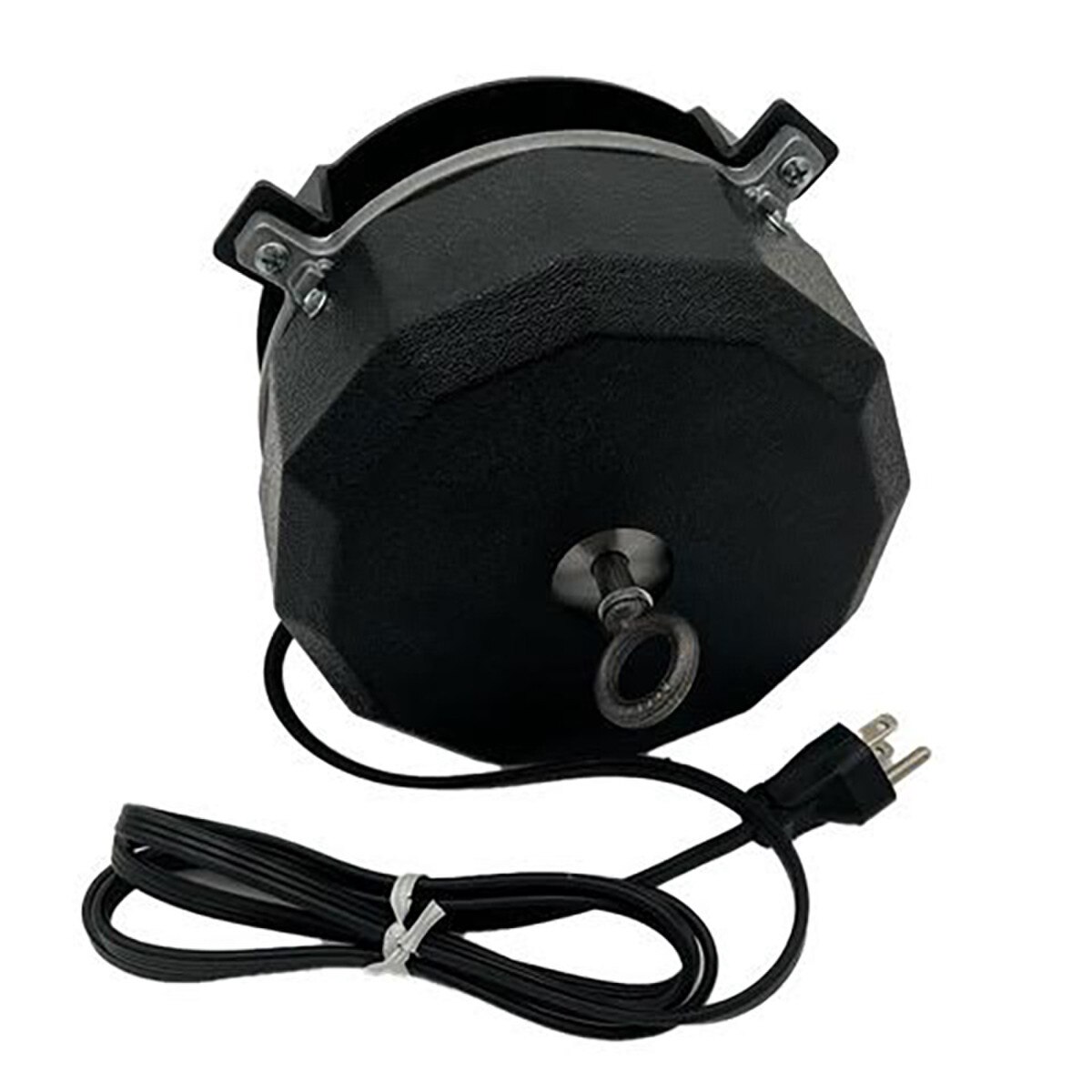

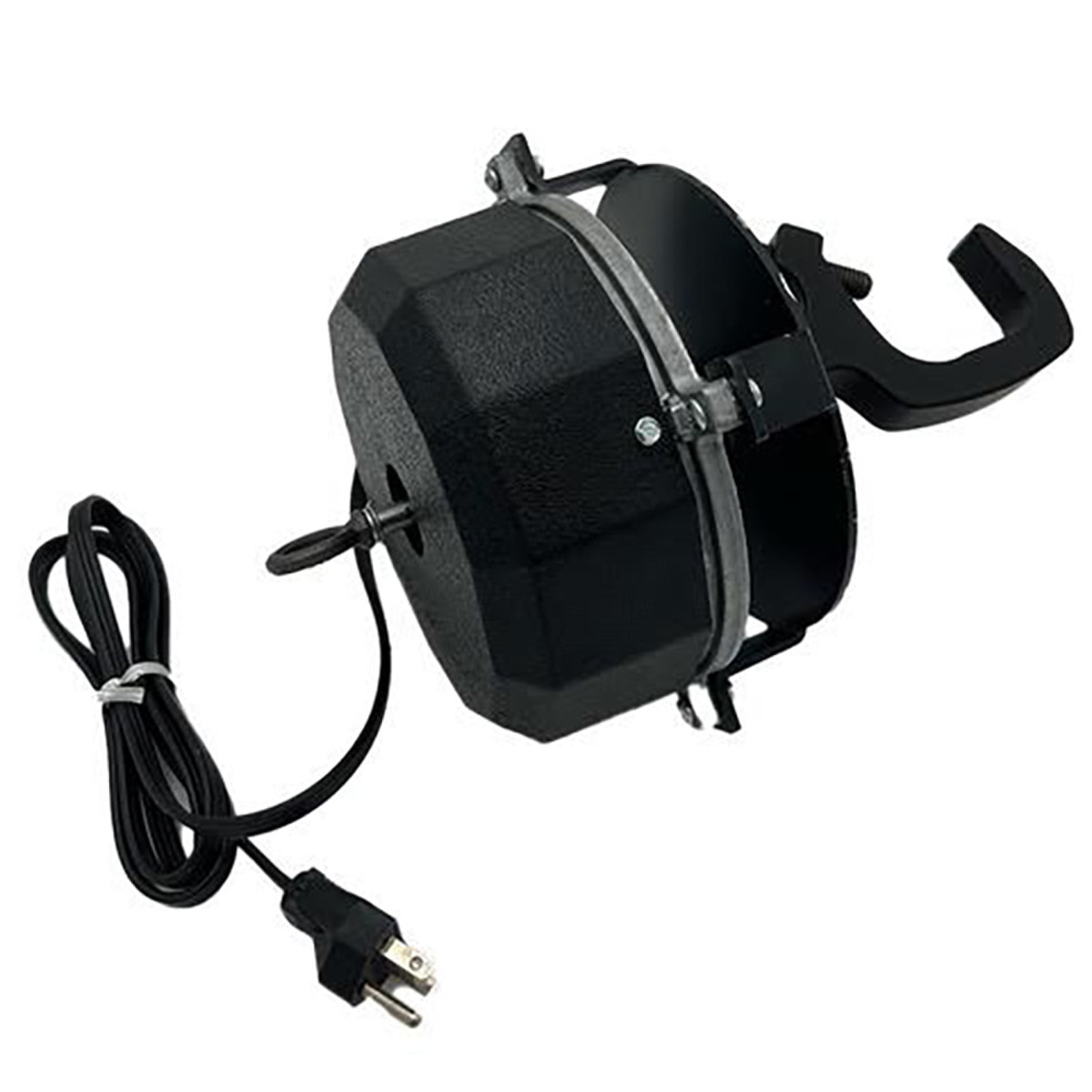

Mirror Ball Motor W/ Hanging Bracket & Clamp - 75lb Capacity - 2 RPM - SLS Vue-More CT120 with a hanging bracket and C Clamp.

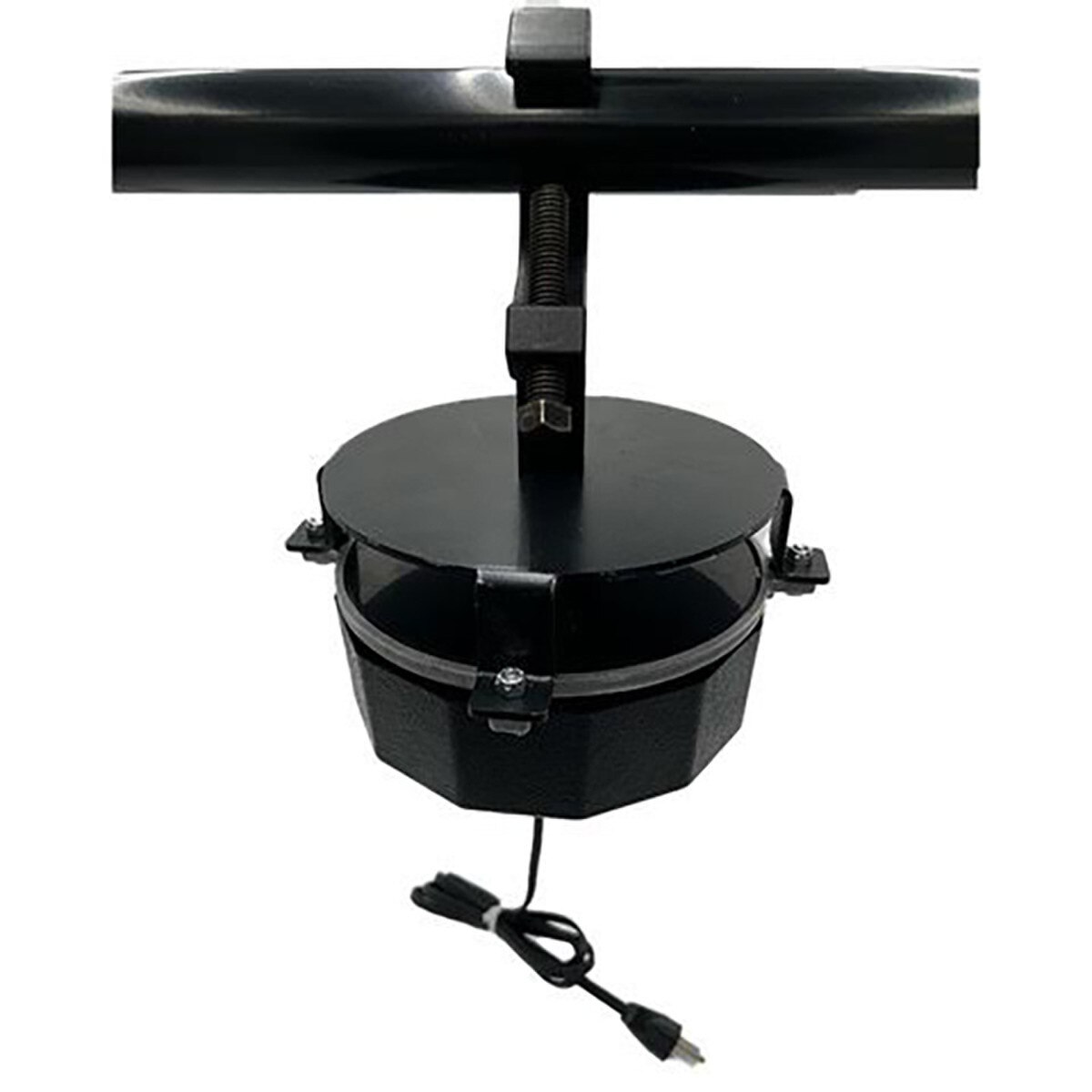

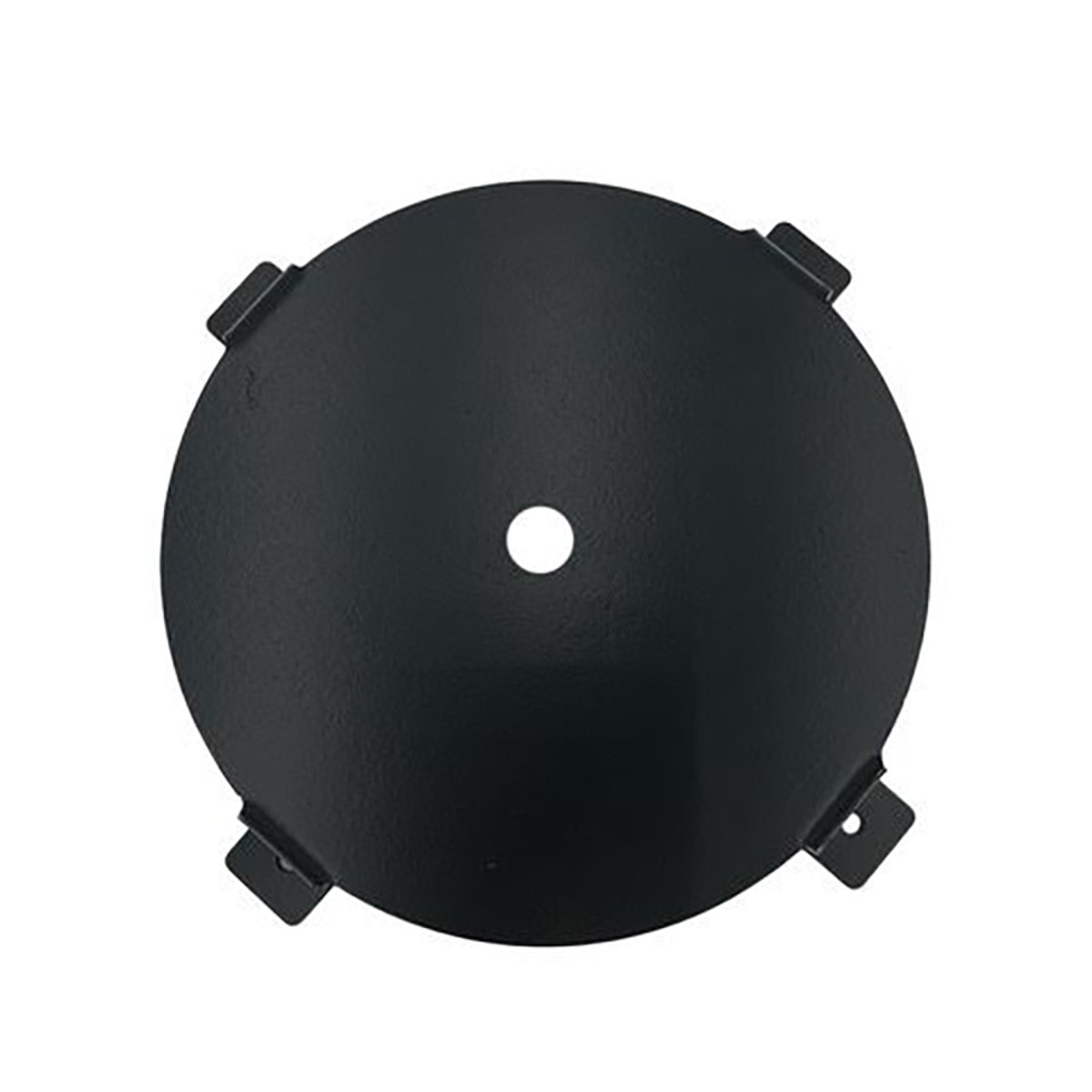

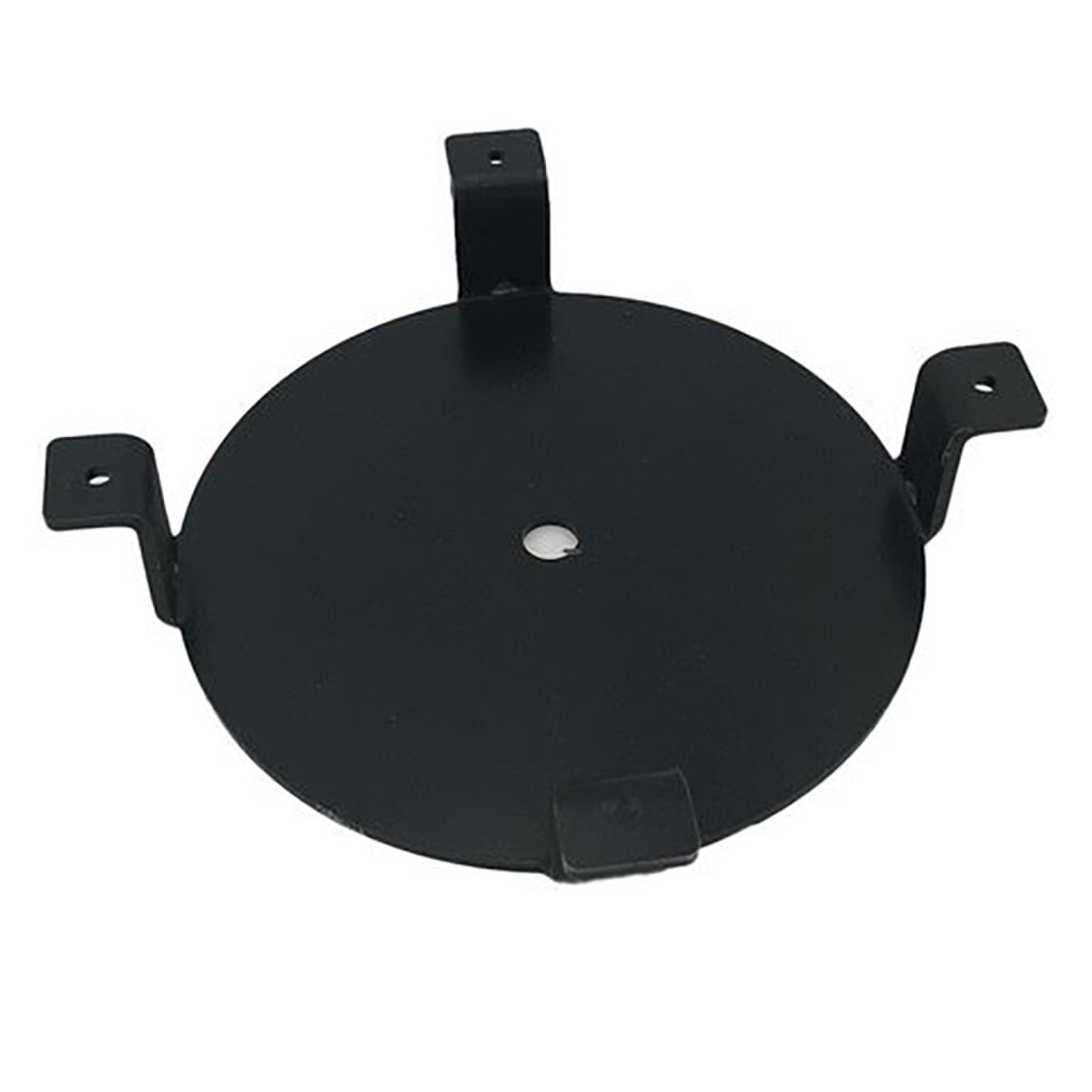

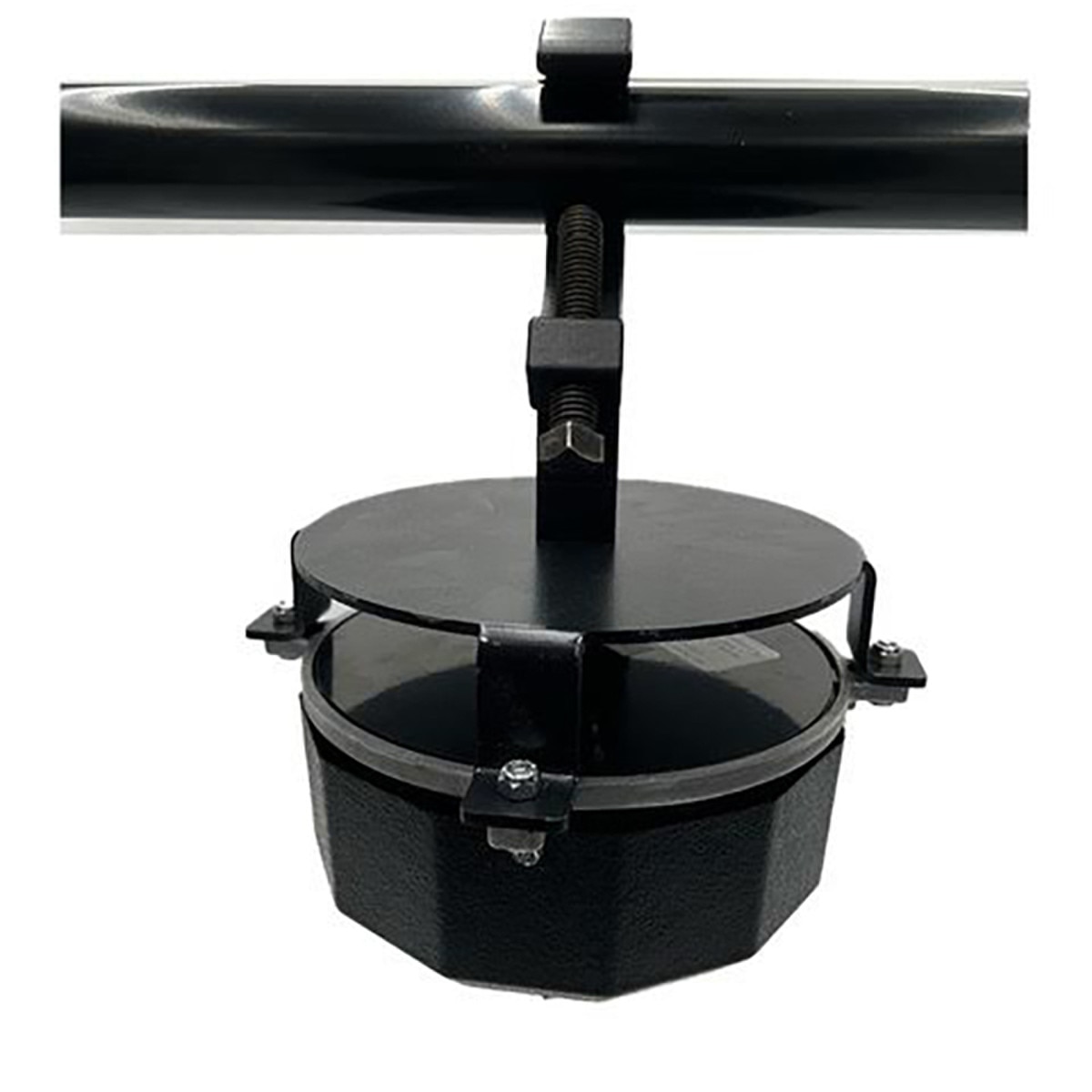

Do you need to hang your mirror ball off a lighting pipe or a truss? Here is a great simple solution. We have paired the Vue-More Ceiling Mount 120 motor with a custom made bracket and a Light Source MAB Clamp to achieve this goal.
Specifications:
- Hanging Weight Capacity: 75 lbs [34kg]
- Standard RPM: 2 Clockwise
- Torque Output @ 2 RPM: 32 in-lbs [3.62 Nm]
- Motor Draw: 0.48 mA (58 mW)
- Shipping Weight: 4 lbs [1.8 kg]
- Power Cord: 6ft [2m]
- Not Rated For Outdoor Use
Performance Tips:
- Keep The Unit Level
- Keep The Weight As Centered As Possible
For ALL installations:
- Display or sign load MUST be balanced and centered under unit.
- Do NOT exceed rated capacity of unit.
Display or Sign hanging from Rotator:
- Fasten base securely to ceiling structure using appropriate fastening hardware (not provided).
- CAUTION: Be sure your structure and mounting hardware can handle the weight.
- Use wire rope or chain to allow hanging sign to self-balance.
- Do NOT allow bare wire rope or chain to rub on eyebolt or wire ring.
- Wire rope or chain should be protected to prevent fraying or failure.
- Hang level.
- Not rated for outdoor use.
Maintenance:
- No regular maintenance is required for this unit.
