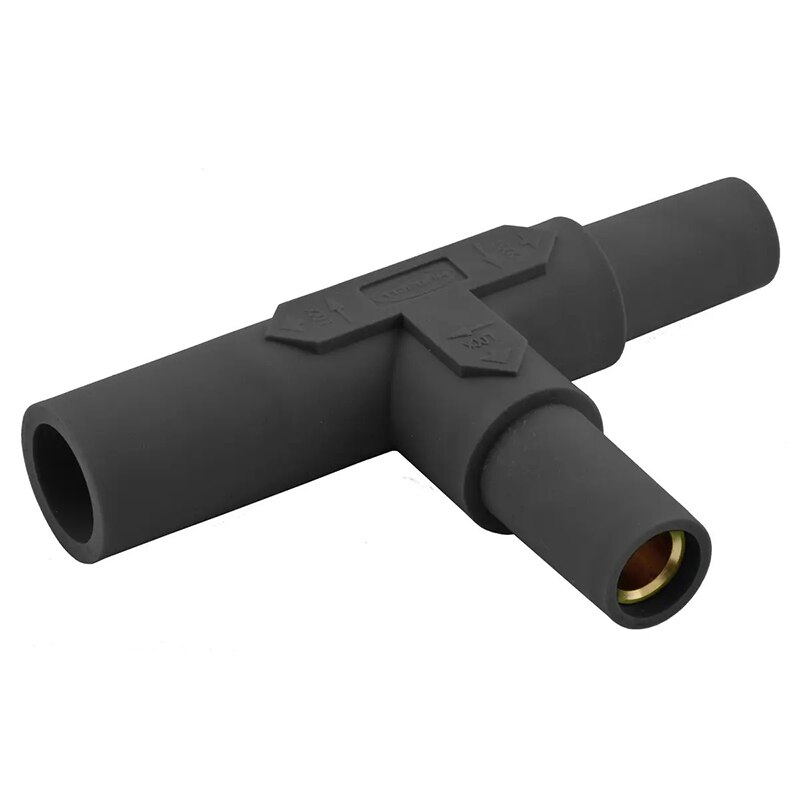

Single Pole Tapping Tee, 150 Amp Series - Black

Single Pole Products, Tapping Tee, 150 Amp Series, Black

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

• Tapping Tee
• 150 Amp Series
• Black
• Standard Product

General:

• Application: Temporary Electrical Power
• Catalog Number: HBL15TBK
• Color: Black
• EU RoHS Indicator: Contact Manufacturer
• Insulation: Insulated Body
• Item Type: Tapping Tee
• Material: Brass and Non-Metallic
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 1-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Style: Tapping Tee Female-Female-Male
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
• Type: Tees and 3-Fers
• UPC: 783585458625

Electrical Ratings:

• Amperage Rating: 150 A
• Connectivity: Plug-In

Conductor Related:

• Number of Conductors: 1 Conductor

Certifications And Compliance:

• EU RoHS Indicator: Contact Manufacturer
• Nema Rating: Non-NEMA

Industry Standard(s):

• National Electric Code (NEC), ANSI/NFPA 70
• UL and cUL Listed
• UL Enclosure Types 3R, 4X, 12

Operational:

• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Configuration:

• Number Of Poles: 1-Pole

Logistics:

• Carton Quantity: 25
