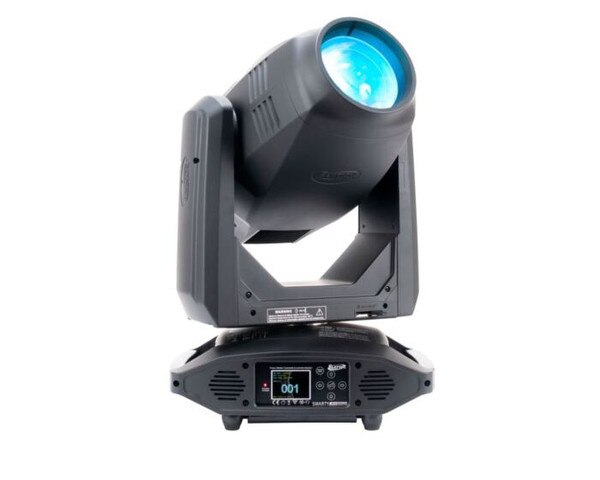

Smarty Hybrid

(0)No Reviews yet
$4,400.00
SKU: Elation ESH253

Add this item to get free shipping! (Motor Freight / Oversized Excluded)

Details

The Smarty Hybrid™ is a compact full featured CMY color mixing spot, beam, and wash hybrid luminaire featuring the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours.

Features:

  • 3-in-1 Smart Hybrid Beam, Spot, Wash Luminaire
  • New Philips™ MSD Platinum 200 Flex Lamp
  • Up To 6,000 Lamp Hours*
  • FLEX Lamp Technology from 190 to 280W + Hibernation Mode
  • Motorized Zoom: 1° - 18° Beam,  3° - 27° Spot,  5° - 33° Wash
  • Full Frost Filter for Wash Effects
  • Full CMY Color Mixing System
  • 13 Colors including Quad Color, CTB, CTO, and UV
  • 8 Rotating Interchangeable Glass Gobos
  • 12 Static-Stamped Metal Gobos
  • 16-Facet and 4-Facet Linear Rotating Prisms
  • Multiple CMY Color, Gobo, and Prism Macros
  • Motorized Focus with Auto-Focus Feature
  • DMX, RDM, Art-NET, and sACN Support
  • Elation’s E-FLY™Internal Wireless DMX Transceiver
  • Ultimate Warranty** - Comprehensive 2 Years / 6,000 Hours
  • **First 2 Years of operation or 6,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance

Source:

  • Philips™ MSD Platinum 200 Flex 280W Lamp
  • Up To 6,000 Hour Lamp Life

Effects:

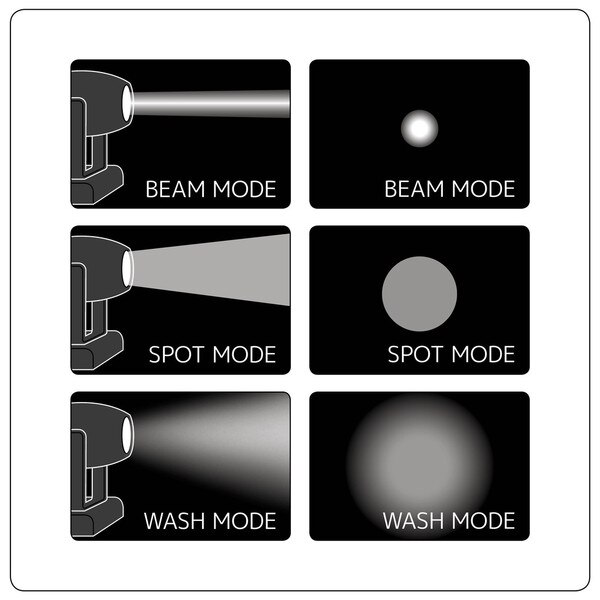

  • Beam, Spot, and Wash Modes
  • Motorized Zoom: 1° - 18° Beam, 3° - 27° Spot, 5° - 33° Wash
  • Full Frost Filter for Wash Effects
  • 16-Facet and 4-Facet Linear Rotating Prisms
  • CMY Color, Gobo, and Prism Macros
  • Motorized Focus with Auto-Focus Feature
  • High Speed Shutter and Strobe
  • Pan Angle: 540°/630°
  • Tilt Angle: 270°
Color:
  • Full CMY Color Mixing System
  • 13 Colors including Quad Color, CTB, CTO, and UV

Connections / Controls:

  • 2 DMX Channel Modes (20/34 channels)
  • Full Color 180° Reversible LCD Menu Display
  • 6 Button Menu Control Panel
  • 16 Bit Resolution Adjustable Movement
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • Elation E-FLY Internal Wireless DMX Transceiver
  • Hibernation Mode (Power Save)
  • 5pin DMX In/Out
  • RJ45 etherCON In/Out
  • Neutrik TRUE1 Power In/Out
  • With Wired Digital Communication Network

Size / Weight:

  • Length: 15.2” (385mm)
  • Width: 15.9” (405mm)
  • Vertical Height: 24.0” (610mm)
  • Weight: 49.0 lbs. (22.2 kg)

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • 480W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)

ELATION SMARTY HYBRID GOBO SPECIFICATIONS-GUIDELINES.pdf
ELATION SMARTY HYBRID FIL - SPECIFICATION SHEET.pdf
ELATION SMARTY HYBRID - USER MANUAL.pdf
ELATION SMARTY HYBRID - DMX CHANNELS.pdf
