Smarty Max
Details

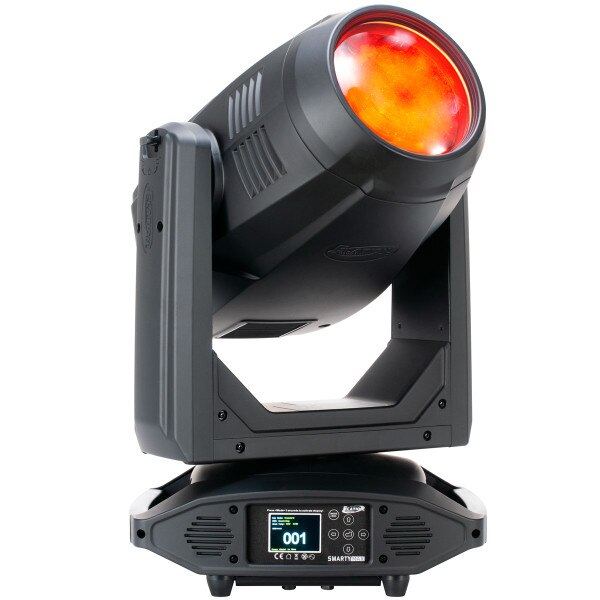

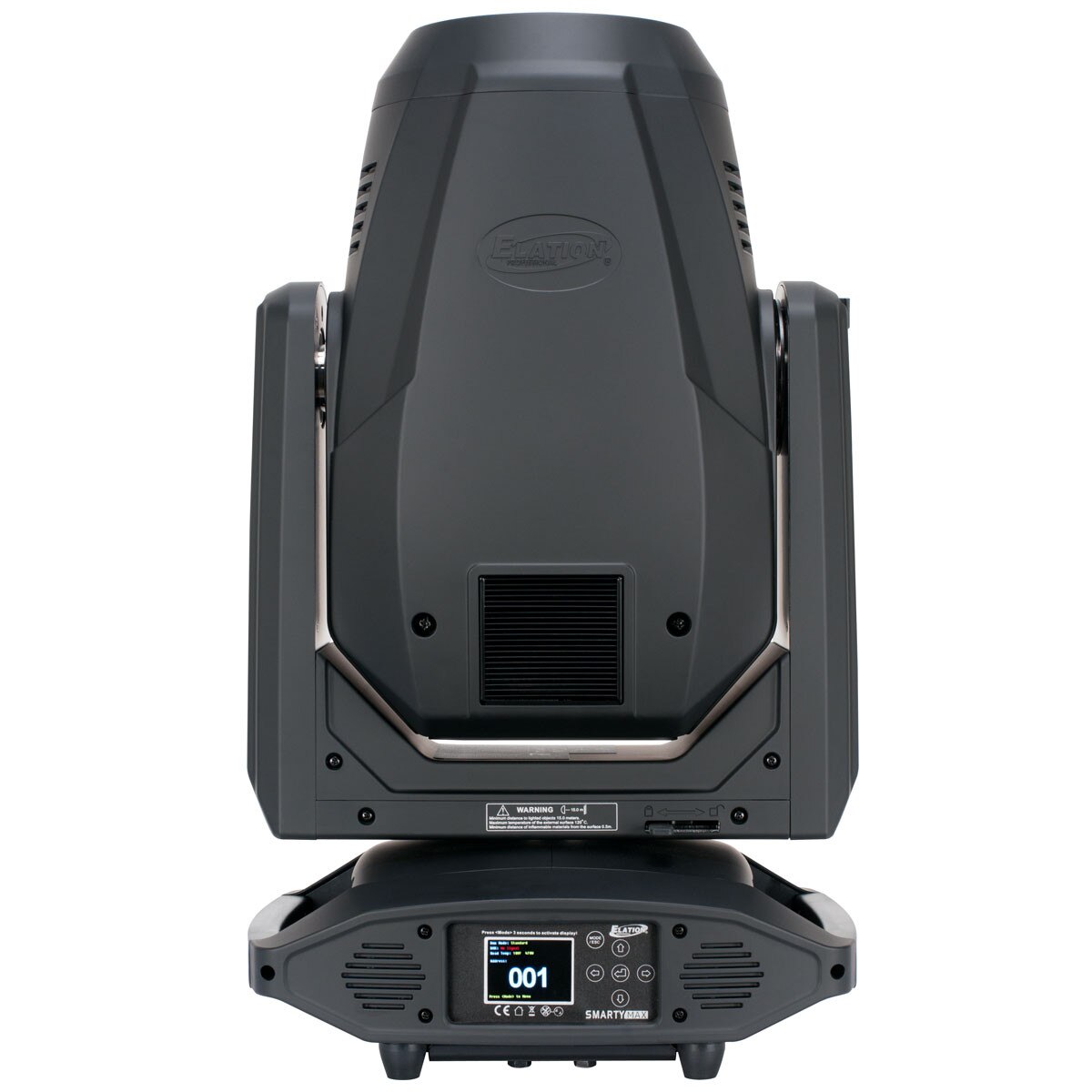

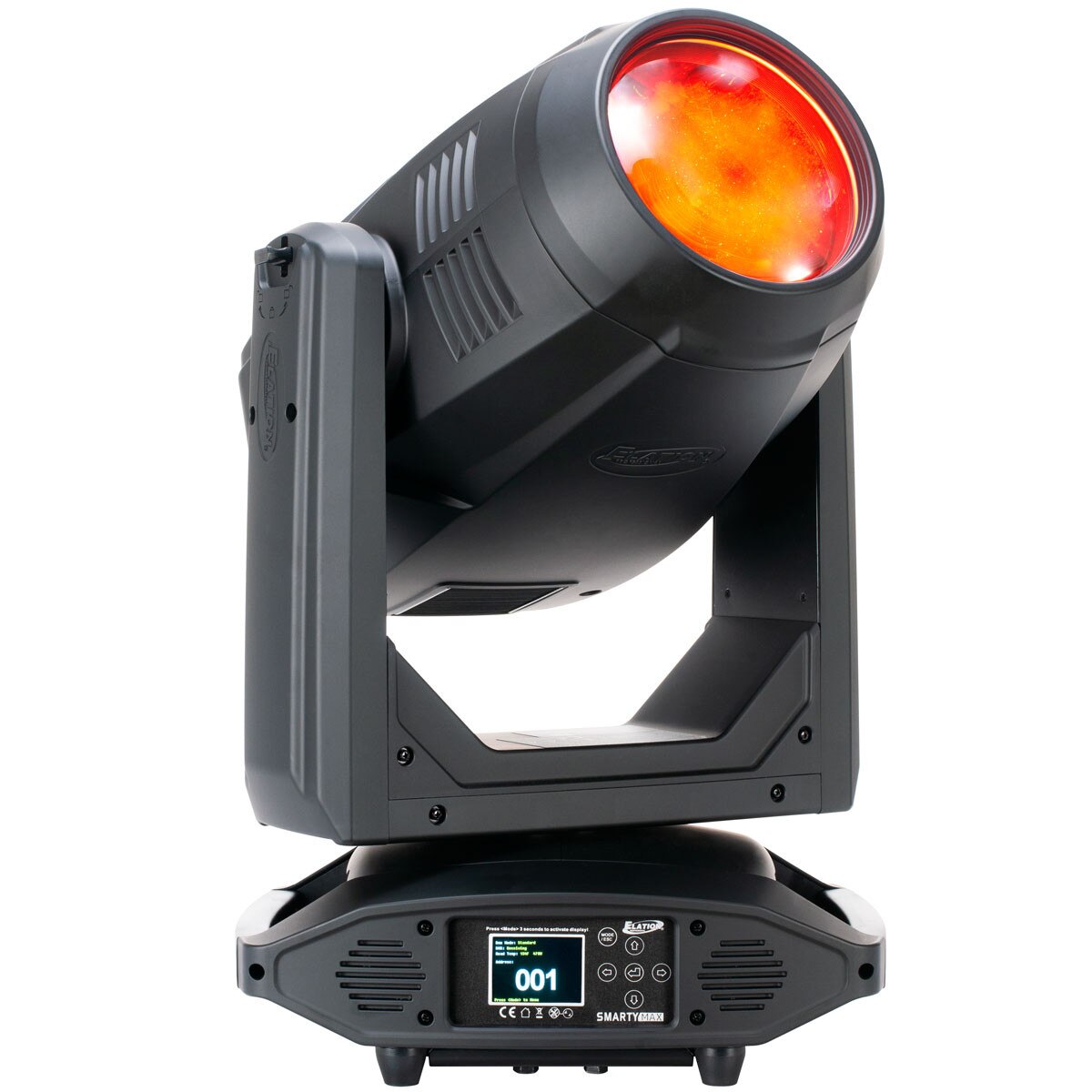

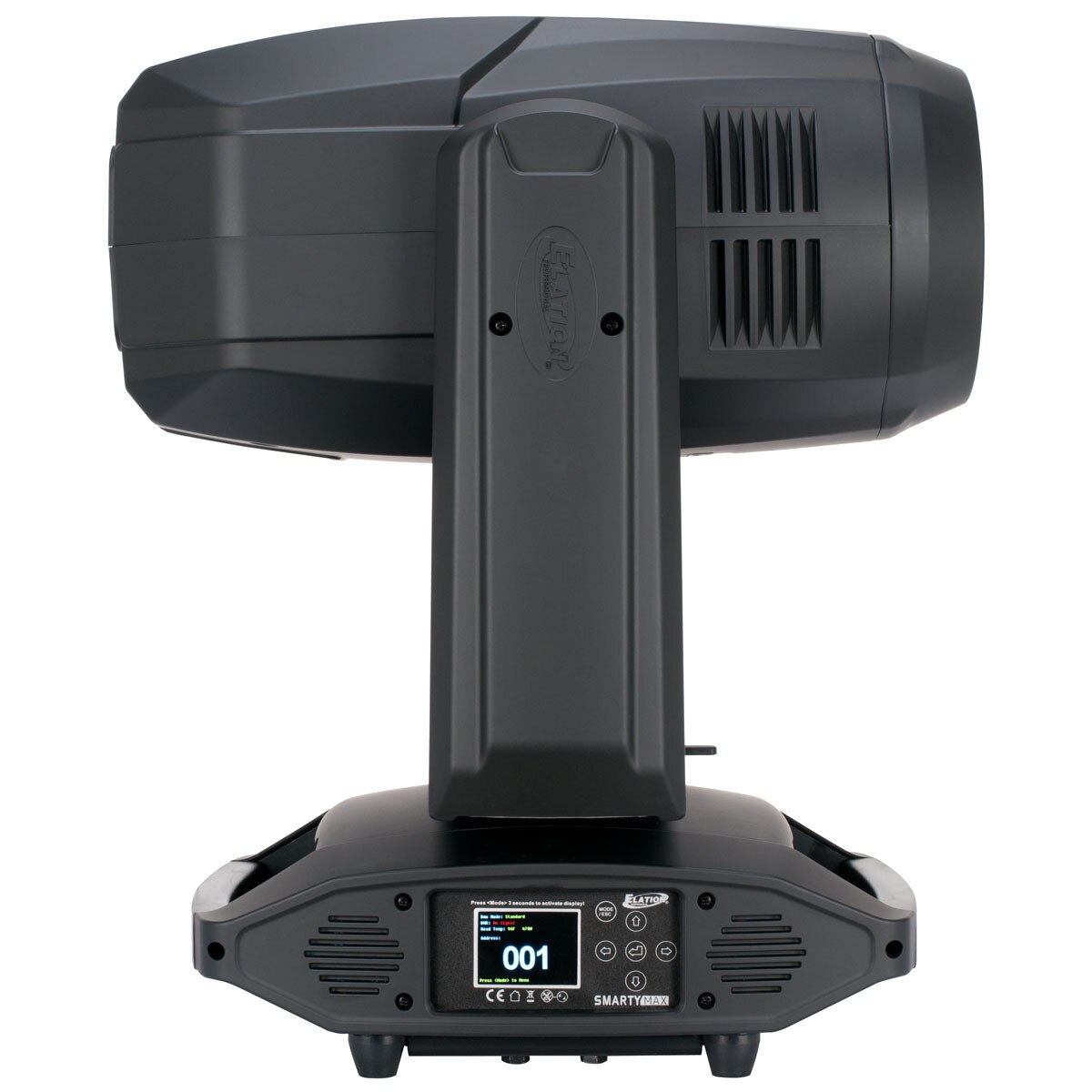

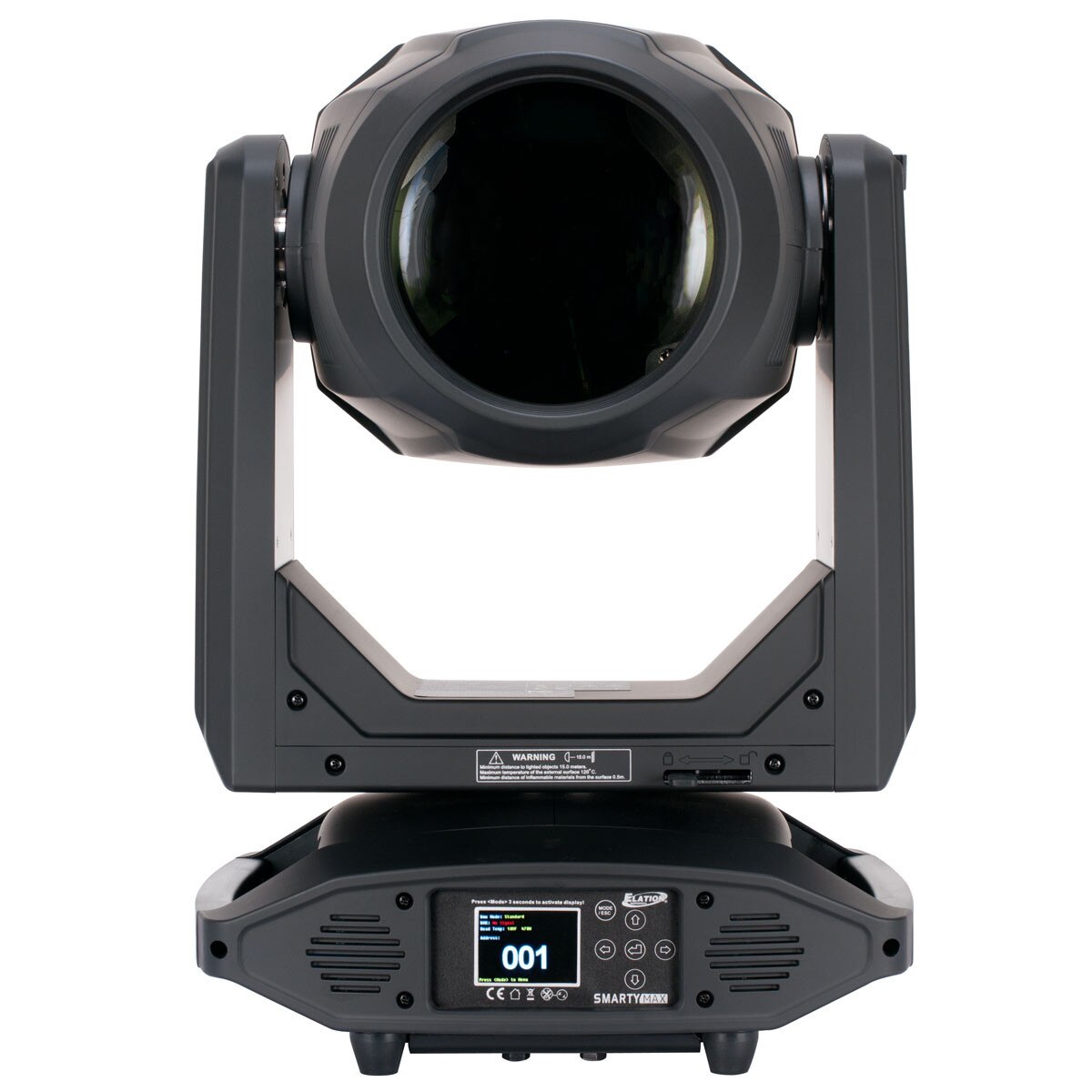

The SMARTY MAX™ combines high output and long lamp life in a feature packed compact and lightweight Hybrid fixture. SMARTY MAX is the Extreme Output Hybrid featuring the new Philips MSD Platinum FLEX 400 lamp and Elation's 2 year / 4,000 hours Ultimate Warranty.** Rated at 480W and up to 4,000 hours smart lamp life the SMARTY MAX includes CMY and variable CTO and is the world’s first Hybrid incorporating a full Iris for dynamic beam effects. Four prisms on two planes, dual frosts plus dual gobo wheel and the unique dual track animation round out the comprehensive FX package in a compact and lightweight housing. Delivering 21,000 lumens from its large 160mm front aperture, the SMARTY MAX has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.
Features:
- Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
- Flex Lamp Technology from 370 to 480W plus Smart Hibernation with up to 4,000 Hour Lamp Life
- Full CMY Color Mixing System, Variable CTO, Color Wheel
- Creative FX Package: 8 Rotating and 14 Static Gobos, Dual Track Animation, Iris 4x Prism on Dual Planes, 2x Frost
- Ultra-Fast Zoom: Beam 2° - 20° | Spot 3° - 30° | Wash 9° - 35°
- 2 Years / 4,000 Hours Ultimate Warranty**
- **First 2 Years of operation or 4,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance.
Source:
- Philips MSD Platinum 400 Flex 480W Lamp
- Variable Lamp Power 370/470/480W
- Automated Lamp Hibernation with Instant Recovery
- Up to 4,000 Hour Lamp Life
Effects:
- Beam, Spot and Wash Modes
- Motorized Zoom
- Dual Frost Filter for Light Frost/ Full Wash
- 4 Prisms on Dual Planes
- Iris
- CMY Color, Gobo, Prism Macros
- Motorized Focus with Auto-Focus Feature
- High Speed Shutter and Strobe
- Pan Angle: 540°/630°
- Tilt Angle: 248°
Color:
- Full CMY Color Mixing System
- Variable CTO
- 13 Position Color Wheel
Connections / Controls:
- 2 DMX Channel Modes (27 / 44 Channels)
- (6) Button Touch Panel
- Full Color 180° Reversible LCD Menu Display
- DMX, RDM, Art-Net and sACN Protocol Support
- 5pin DMX In/Out
- RJ45 Ethernet In/Out
- IP65 Locking Power Cable In/Out
- With Wired Digital Communication Network
Size / Weight:
- Length: 15.34” (389.8mm)
- Width: 17.53” (445.3mm)
- Height: 25.27” (642mm)
- Weight: 60.0 lbs. (27.2kg)
Electrical / Thermal:
- AC 100-240V 50/60Hz
- 700 W Max Power Consumption (estimated)
- 14°F to 113°F (-10°C to 45°C)
- BTU/hr (+/- 10%) 2387
