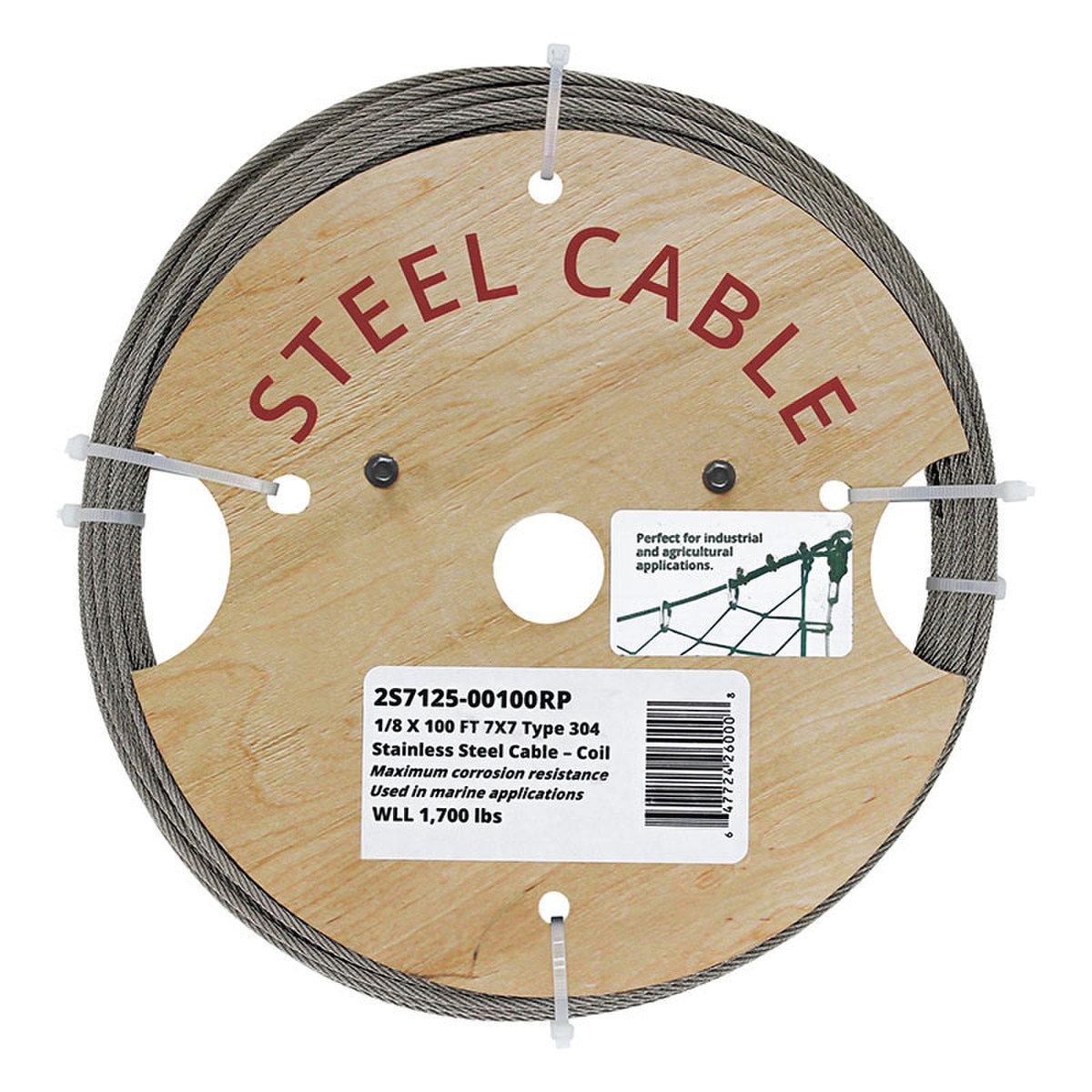

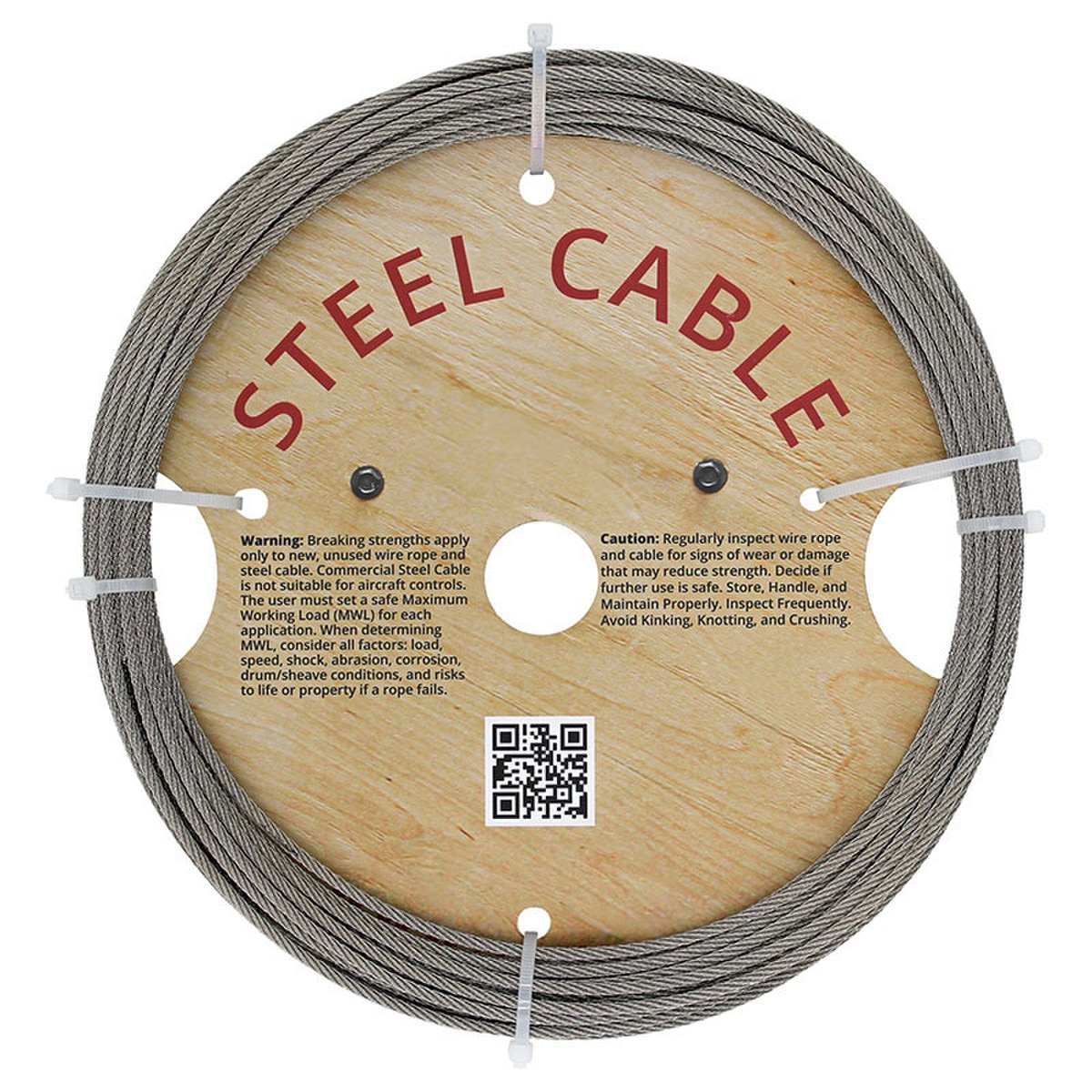

Stainless Steel T304 Cable Coil - 1/8 in X 100 ft, 7x7

7x7 Stainless Steel Cable is one of the most common, cost effective and versatile wire ropes. The 7x7 construction is of medium flexibility and is used in many of the same applications as 7x19 stainless steel cable but where a little less flexibility is needed. Meets the Performance requirements of Applicable Federal Specification RR-W-410. Independent Lab tested and verified.

Please allow 7-10 business days for coil processing

At A Glance:

• Product #: 2S7125-00100RP
• Finish: Type 304 Stainless Steel
• Size: 1/8 in
• Length: 100 ft
• Weight: 28 lbs/mft
• Minimum Breaking Strength: 1700 lbs

Product Specifications:

• Code: 2S7125-00100RP
• Finish: Type 304
• Construction: 7X7
• Size: 1/8 in
• Length: 100 ft
• Min Breaking Strength: 1700 lbs

Safety Notice:

• Inspect regularly for visible damage, distortion, elongation, corrosion, cracks, nicks or abrasion, which may cause failure or reduce the strength of the Wire Rope
• Wire Rope and Steel Cable must be stored, used, lubricated and maintained in accordance with the normal safety standards
• Verify that replacement Wire Ropes are correct for your application and meet your specifications
• Avoid shock loads. Do not load Wire Rope to the breaking strength limits. End user must determine an appropriate safety factor for the application

2S7125-00100RP Federal Specification Wire Rope and Stand.pdf
