Strong Lighting STX1-2000 Single Head Rotator 2000 Watt Unit Without Lamp
Details

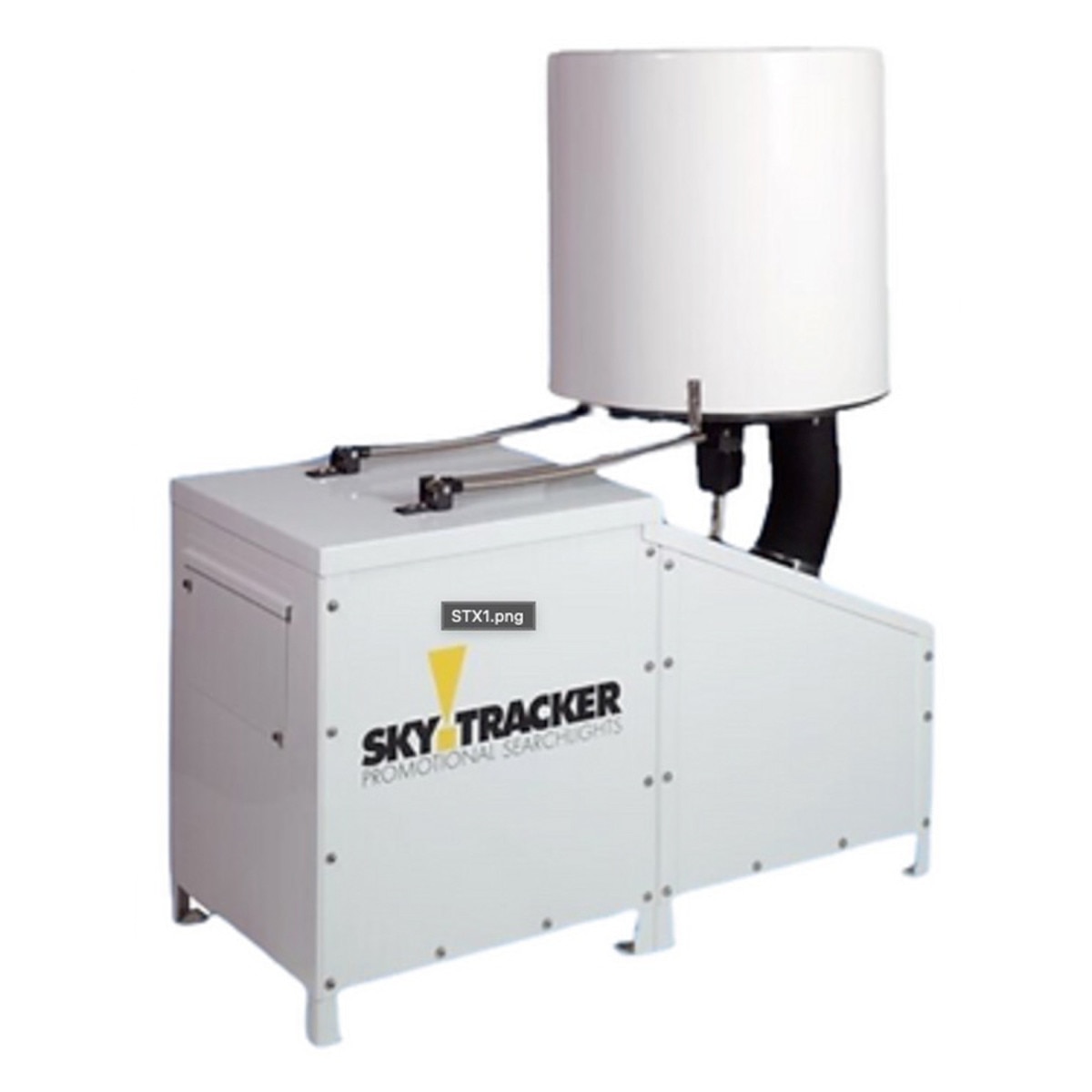

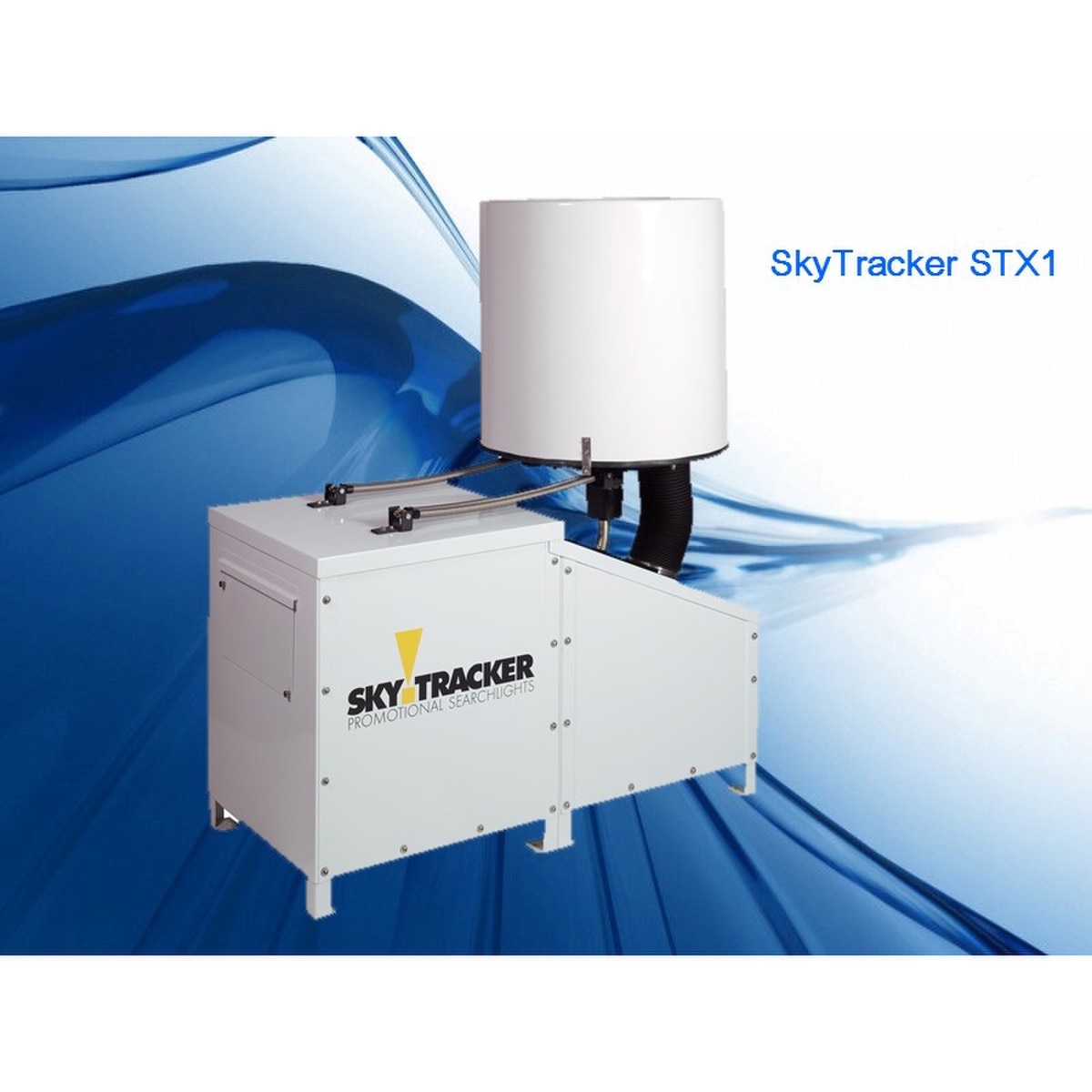

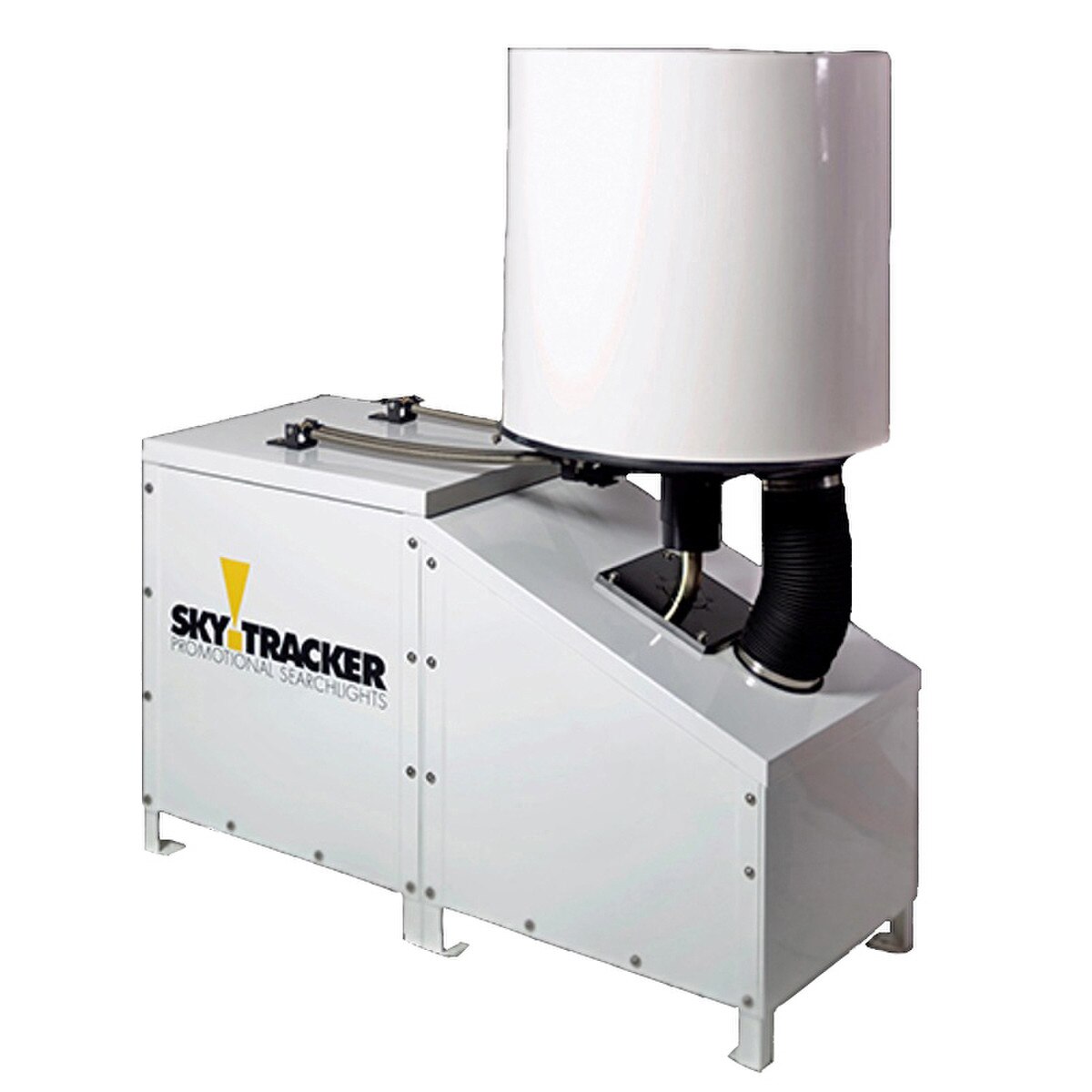

The STX1 is a full-motion, single-head xenon searchlight producing a beam visible for miles. It moves in an attention-getting oval pattern. The sweeping beam not only adds motion and excitement to an event or lighting effect, but also pinpoints the location.
Available in a single-piece design (STX1-A, as illustrated) or a two-part system (STX1-B & C) for specific location installation. All systems allow users the ability to project a stationary beam or a rotating beacon.
Features:
- Leading Edge Xenon Technology
- Precision Nickel Electroformed Reflector specifically coated for continuous high output performance
- Color Temperature constant at 5600° (Kelvin)
- Focusable Beam
- Available in both 2000 and 4000 Watt configurations
- SkyTracker Exclusively Designed Mechanics and High Reflective Optics
- Lamphead features Rainproof, Welded Aluminum Covers
- Tempered Glass Lamphead Window
- Rotation Speed Control
- Two-Part Construction for Easy Installation (“B” and “C” Series): “B” Series: Plug-In, “C” Series: Hard Wired
Technical Specifications:
- Lamphead Dimensions:
- Width: 22.875"
- Length: 22.50"
- Height: 54.50"
- Mount Pattern: 20.75 x 17.125"
- Weight: 160 lbs
- Phase and Frequency: 208/240 VAC 50/60 Hz.
- Input Voltage (AC) Input: Single Phase, 20A
- Current (Amperes): Three Phase, 15A
