Strong Lighting STX1-4000 Single Head Rotator 4000 Watt Unit Without Lamp

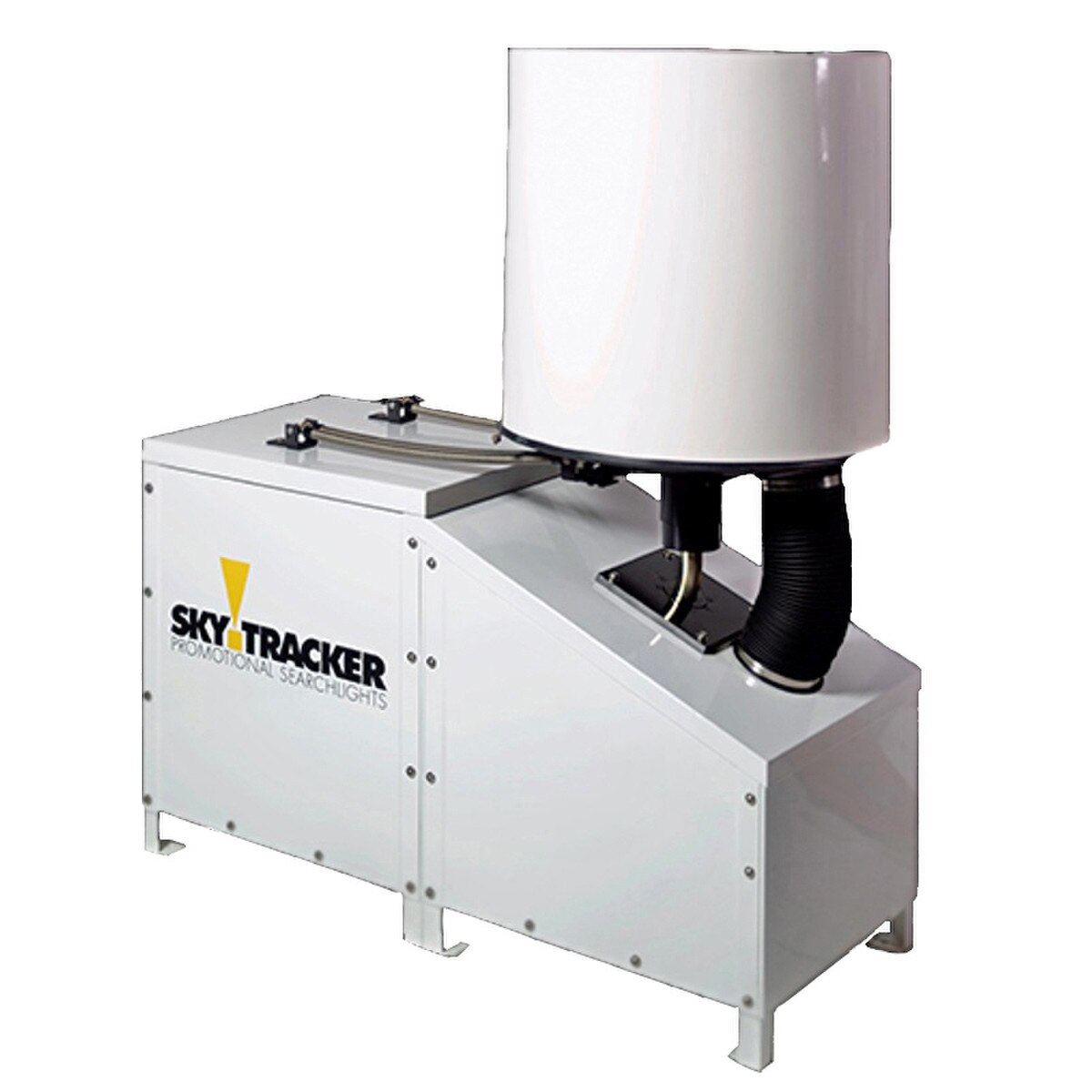

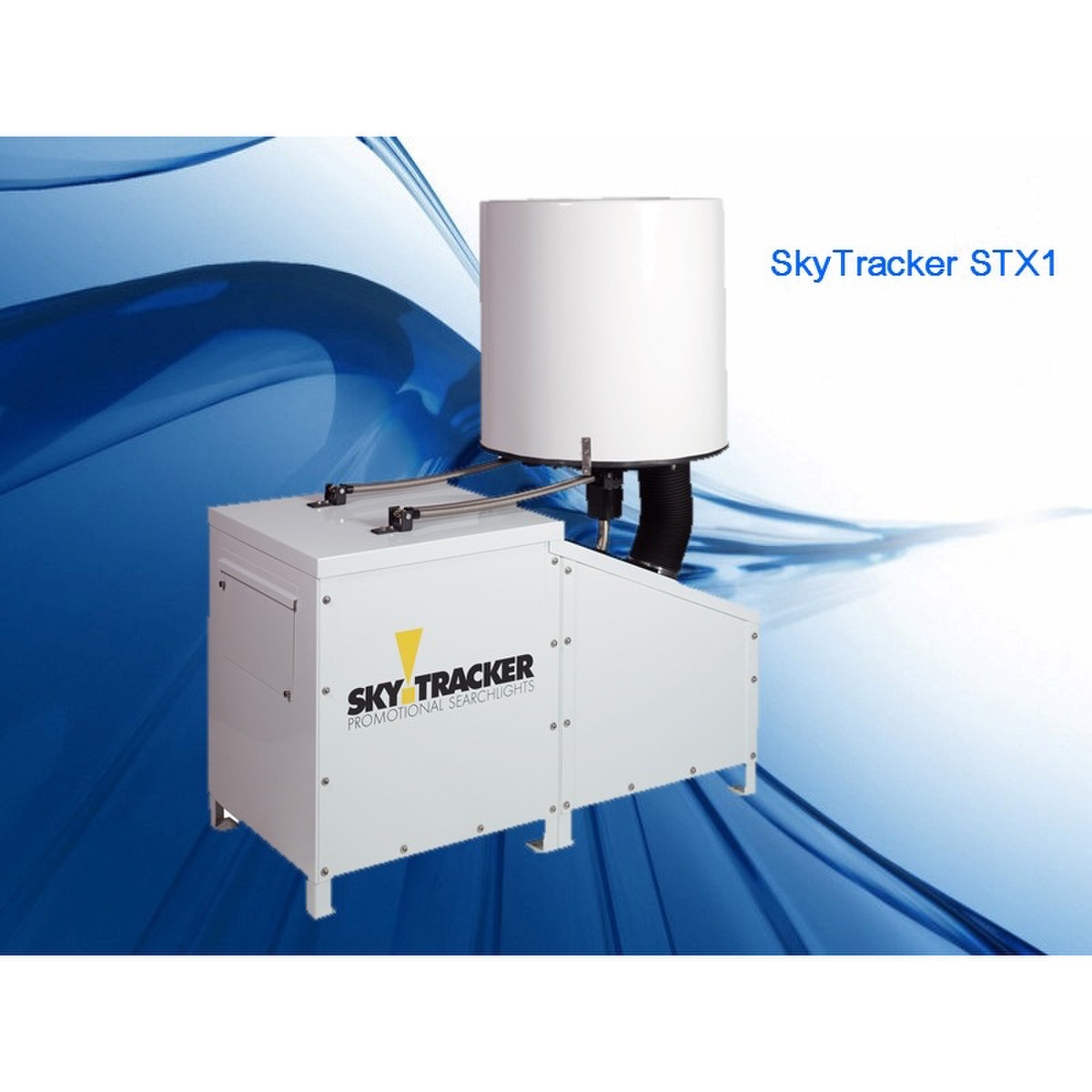

The STX1 is a full-motion, single-head xenon searchlight producing a beam visible for miles. It moves in an attention-getting oval pattern. The sweeping beam not only adds motion and excitement to an event or lighting effect, but also pinpoints the location.

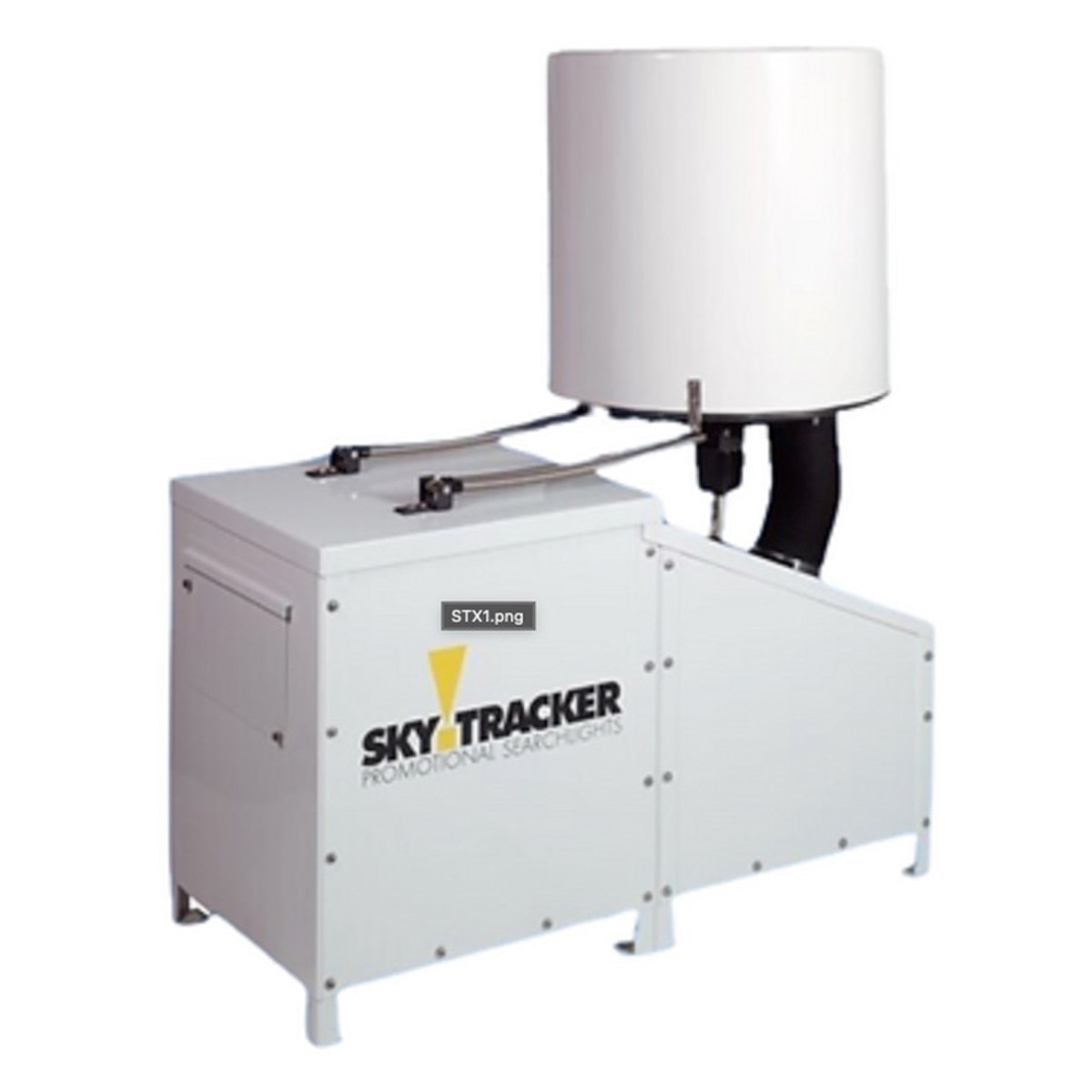

Available in a single-piece design (STX1-A, as illustrated) or a two-part system (STX1-B & C) for specific location installation. All systems allow users the ability to project a stationary beam or a rotating beacon.

Features:

• Leading Edge Xenon Technology
• Precision Nickel Electroformed Reflector specifically coated for continuous high output performance
• Color Temperature constant at 5600° (Kelvin)
• Focusable Beam
• Available in both 2000 and 4000 Watt configurations
• SkyTracker Exclusively Designed Mechanics and High Reflective Optics
• Lamphead features Rainproof, Welded Aluminum Covers
• Tempered Glass Lamphead Window

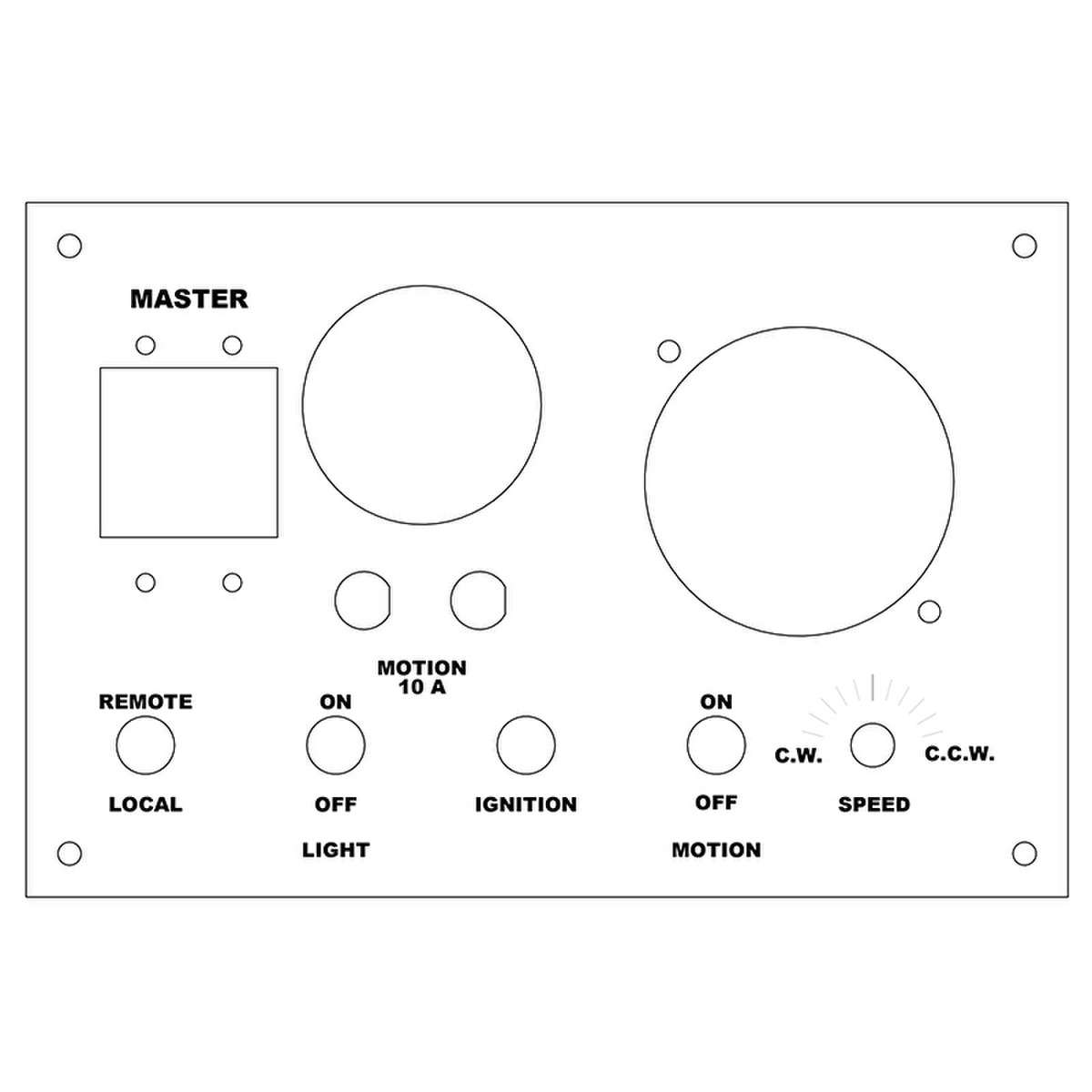

• Rotation Speed Control
• Two-Part Construction for Easy Installation (“B” and “C” Series): “B” Series: Plug-In, “C” Series: Hard Wired

Technical Specifications:

• Lamphead Dimensions:
• Width: 22.875"
• Length: 22.50"
• Height: 54.50"
• Mount Pattern: 20.75 x 17.125"
• Weight: 160 lbs
• Phase and Frequency: 208/240 VAC 50/60 Hz.
• Input Voltage (AC) Input: Single Phase, 20A
• Current (Amperes): Three Phase, 15A

Strong Lighting STX1 User Manual.pdf
Strong Lighting STX1 Datasheet.pdf
