Strong Lighting STX4-4000 Four Head Rotator 4000 Watt Unit Without Lamps

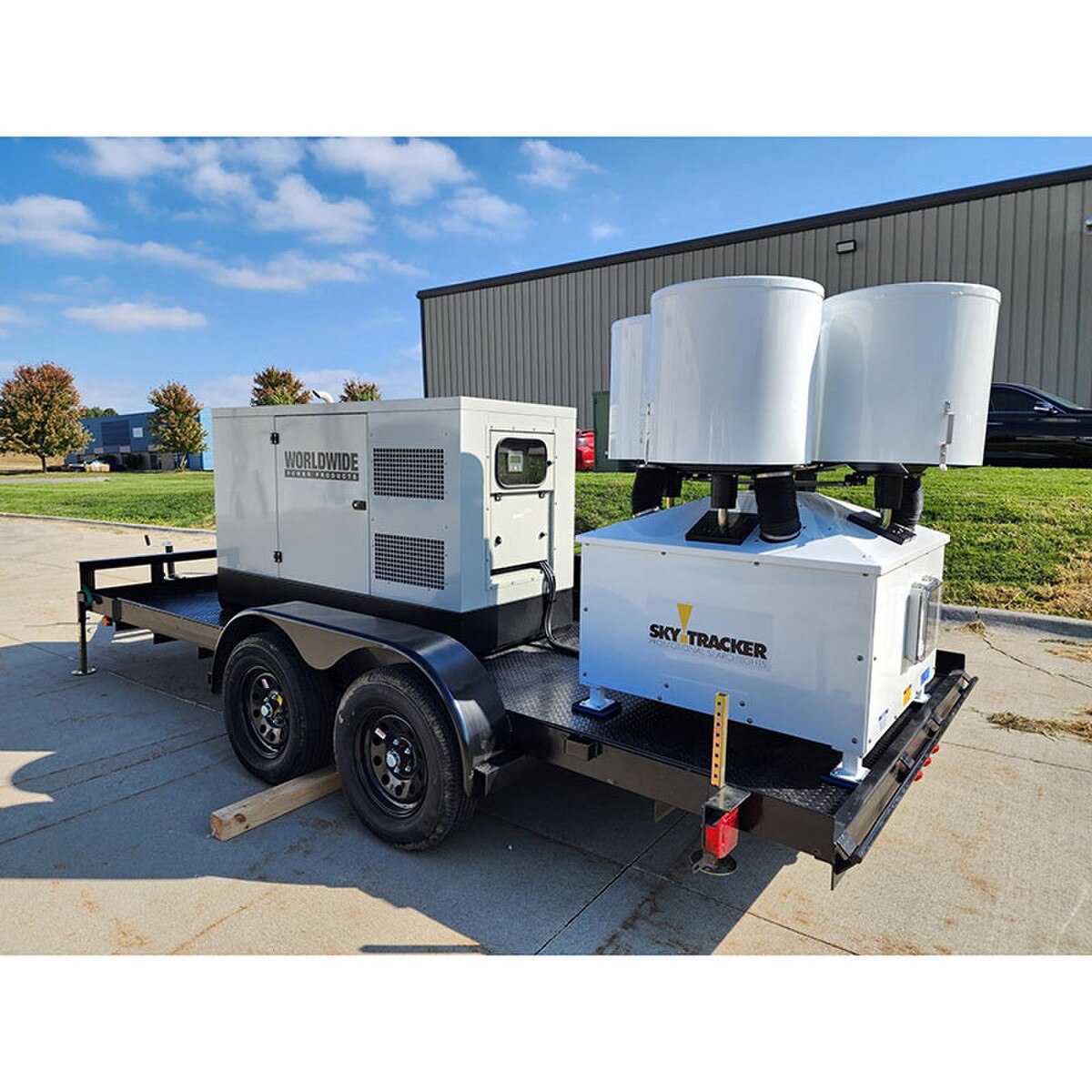

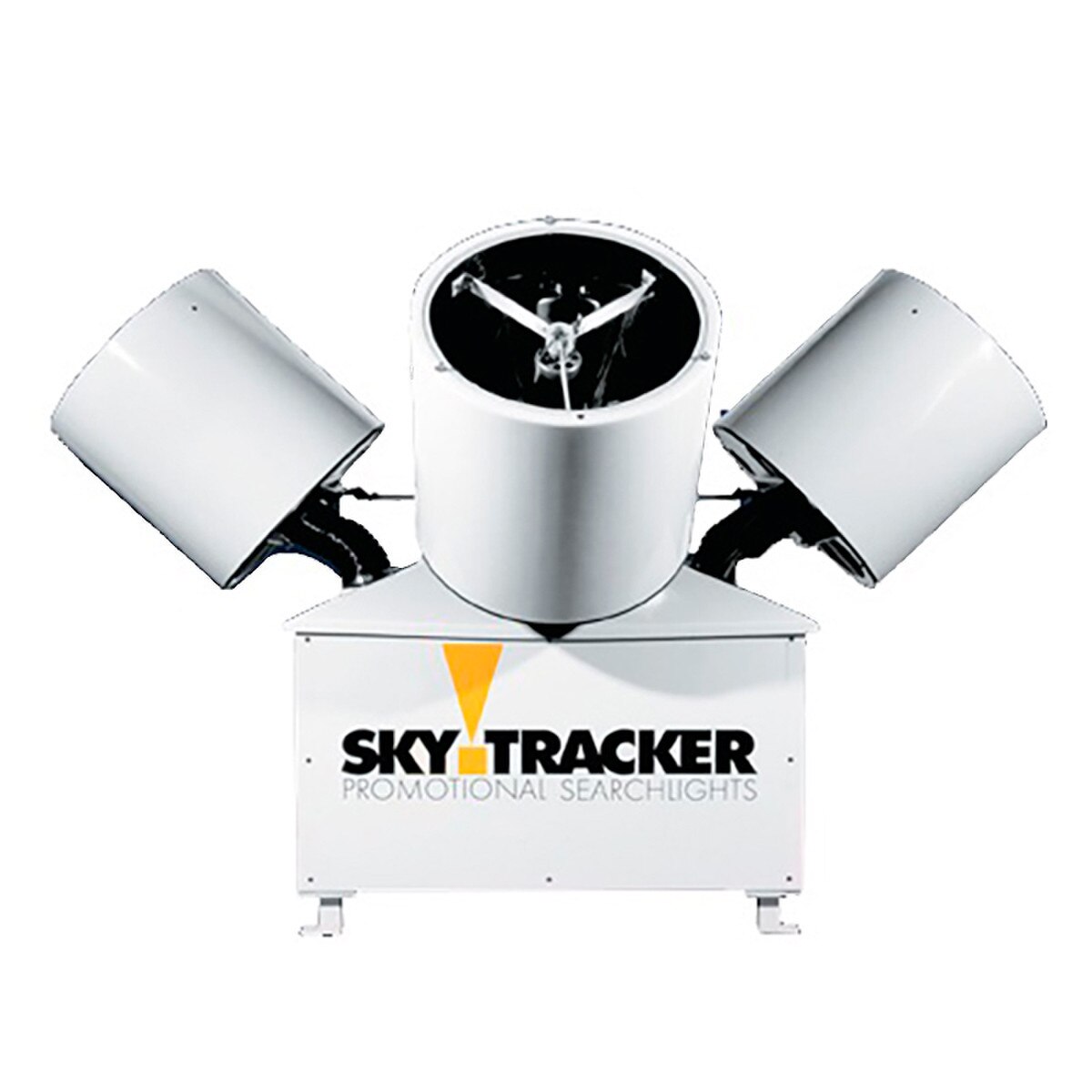

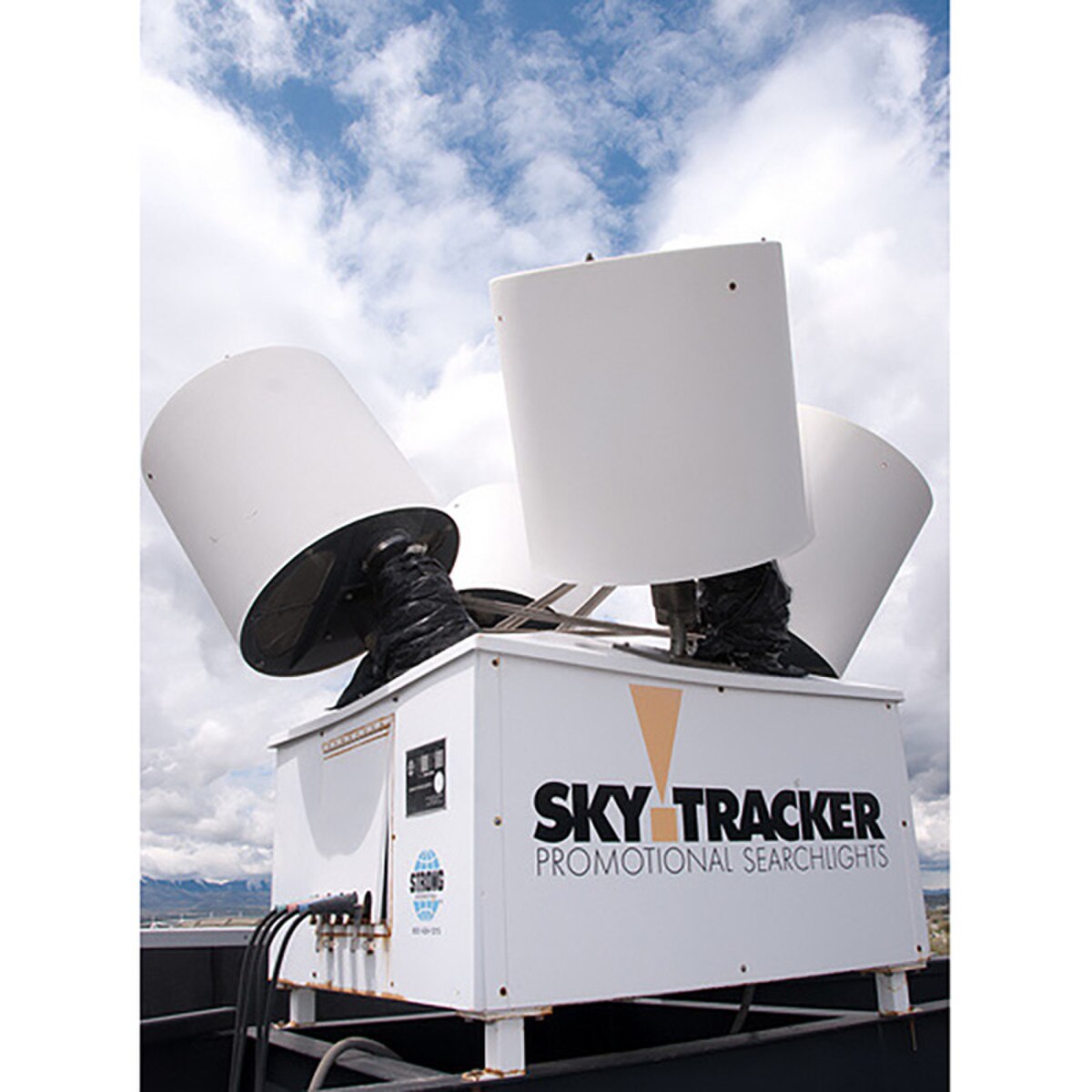

SkyTracker STX4’s are full motion four-headed searchlights which project four beams that can be seen for miles. It moves in an attention-getting “cloverleaf” pattern enabled by its unique bent shaft design. The sweeping beams not only add motion and excitement to an event or lighting effect, but also pinpoint the location of the event or location.

Features:

• Leading Edge Xenon Technology
• Precision Nickel Electroformed Reflectors specifically coated for continuous high output performance
• Color Temperature constant at 5600° (Kelvin)
• Focusable Beams
• Available in both 2000 and 4000 Watt configurations
• Lampheads feature Rainproof, Molded Fiberglass Casings
• Tempered Glass Lamphead Windows
• Powder Coated Steel Frame

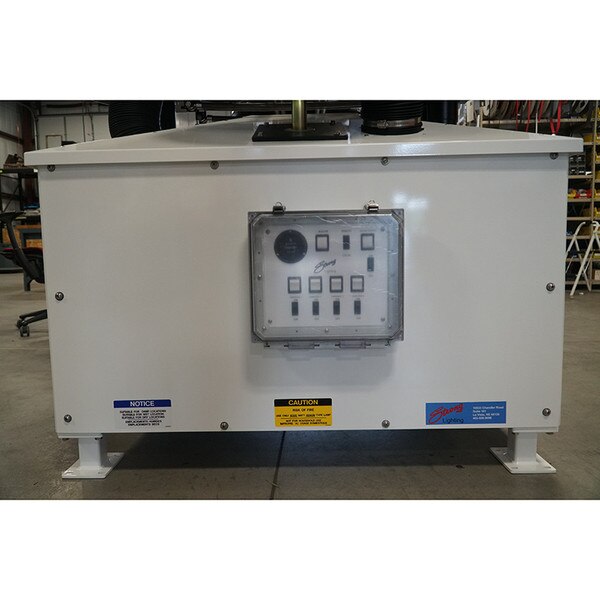

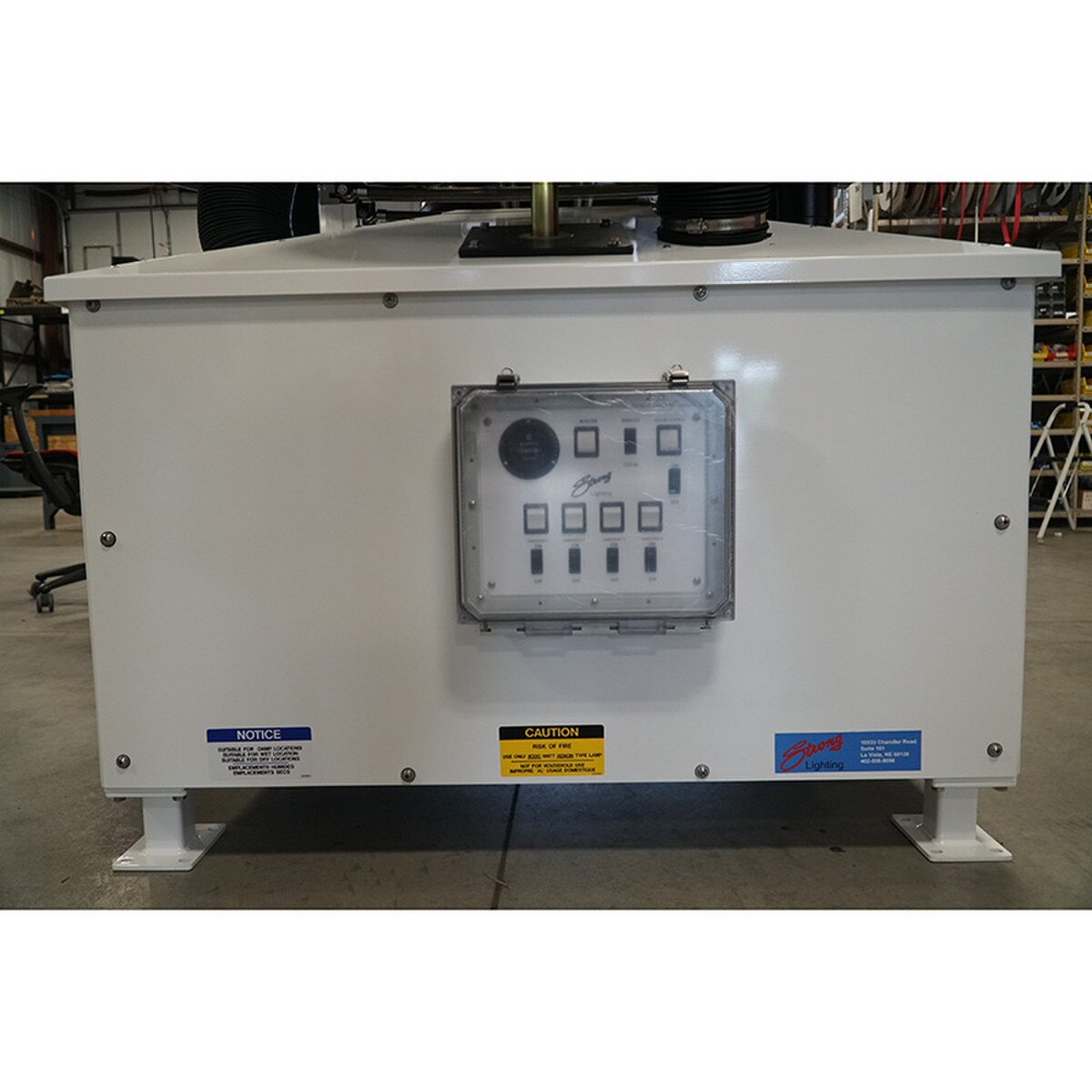

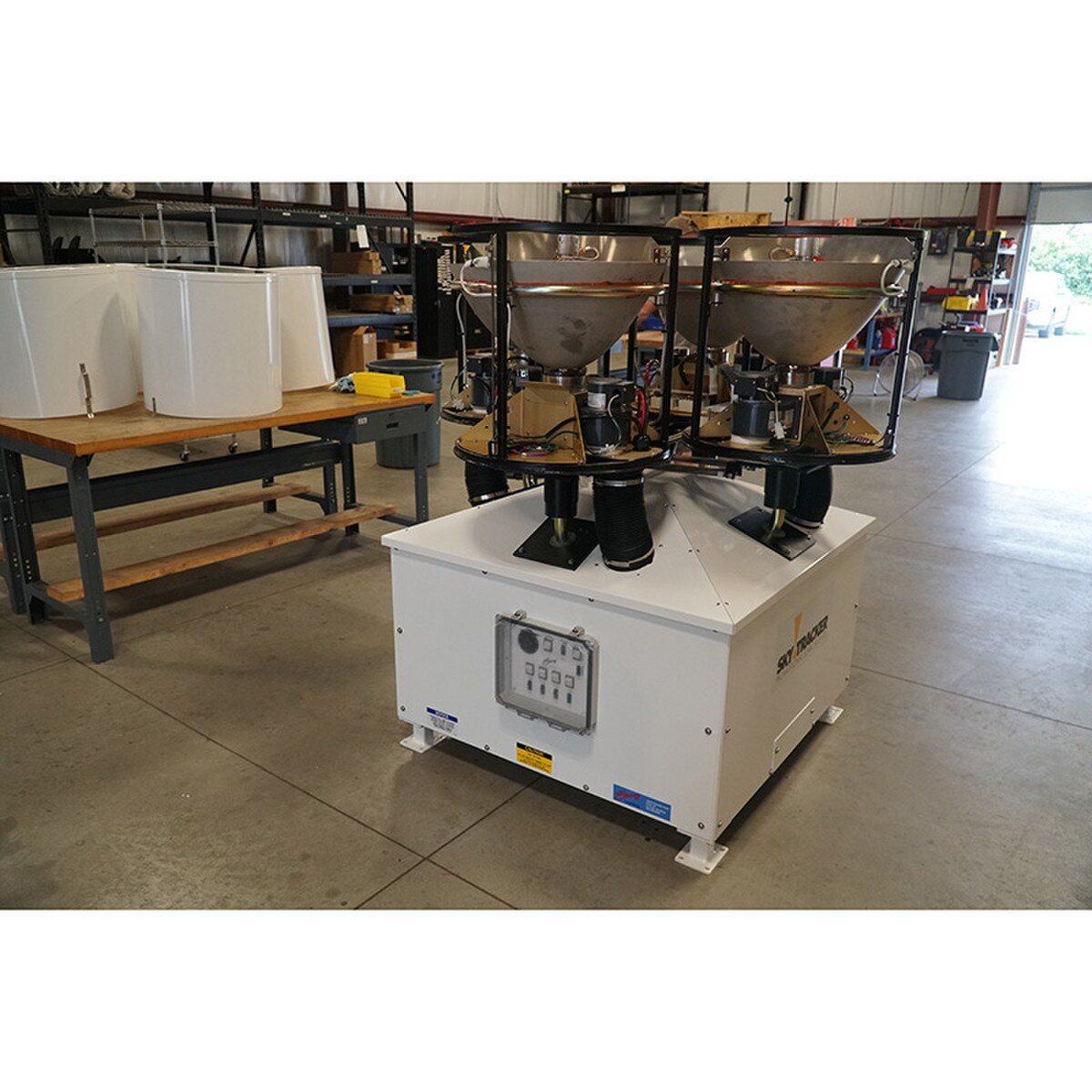

• Fully Assembled (Lampheads, Motion Assembly, Power Supplies) in a Weather Resistant Housing

Technical Specifications:

• Beam Candlepower: 332 Million (1.3 Billion total)
• Overall Dimensions: 68" H x 58.75" W x 58.75" L
• Total Weight: 1160 lbs
• Base Mount Pattern: 39.75" x 41.875"
• Phase: Single
• Frequency: 50/60 Hz.
• System Input Voltage: 208/240 VAC
• System Input Current: 96 A

Strong Lighting STX4 User Manual.pdf
Strong Lighting STX4 Datasheet.pdf
