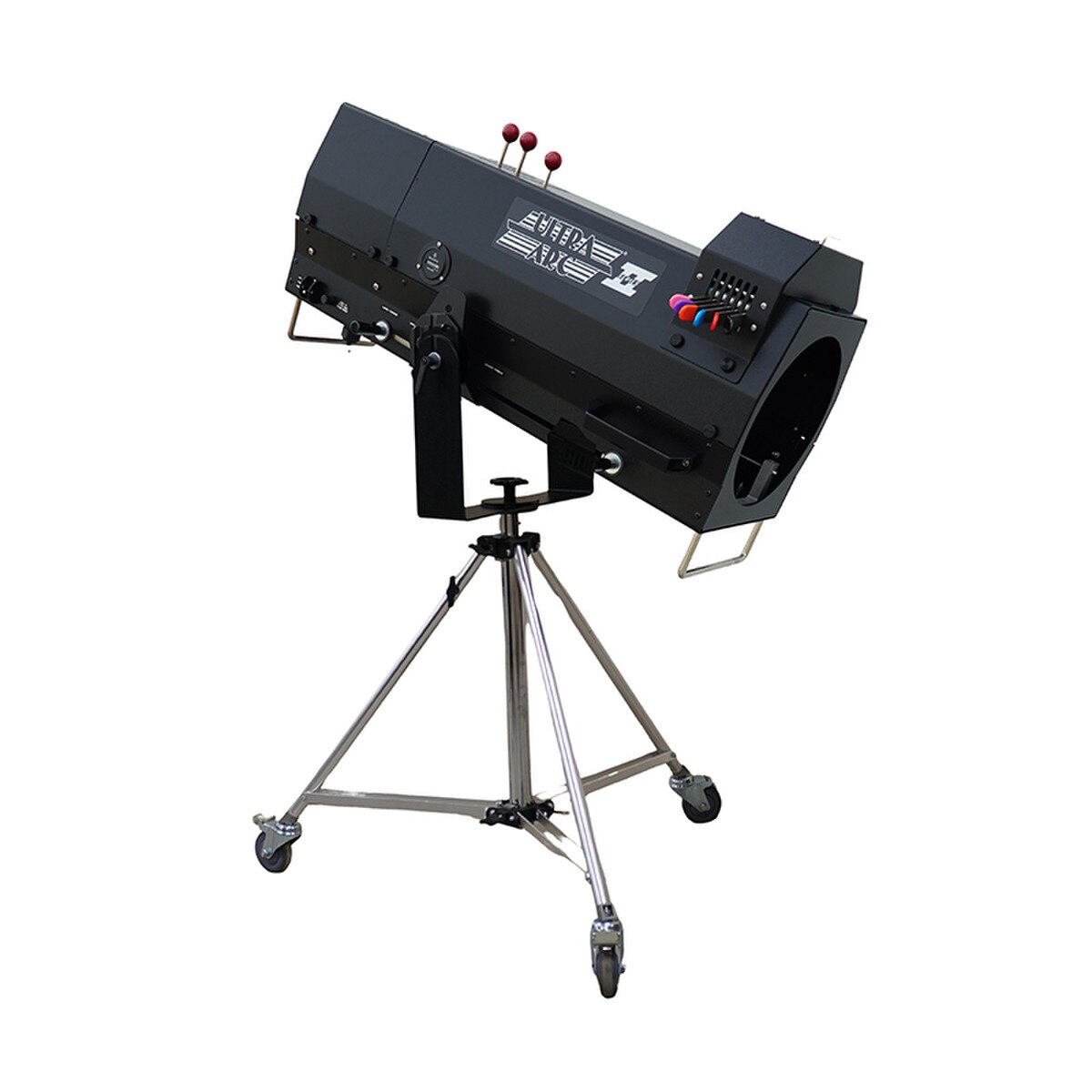

Strong Lighting Ultra Arc II Short Throw 120V with Heavy Duty Tripod Stand

The Ultra Arc Series II followspot from Strong Lighting continues the Ultra Arc tradition of state-of-the art lighting bringing a standard of efficiency and operational simplicity to the entertainment industry.

The Series II features the bright and efficient Osram HTI lamp comprised of a compact source metal halide arc tube computer positioned for maximum output and field flatness in a high quality specially designed dichroic reflector. The HTI lamp has a rated life of 250 hours and a constant color temperature of 5600° Kelvin.

Designed for throws from 25 feet to 150 feet the Series II lens system is designed to optimize lamp output. The combination of coated optics and a precision relay lens system makes the Series II a competitor with other followspots using 1000W – 2000W discharge lamps. The solid-state electronic ballast draws less than 8 amps and operates on standard 120 volt 50/60 Hz AC power.

Options include custom road case and 220/240 50Hz volt operation.

Affordability, quality construction and ease of handling insure that the Ultra Arc line of followspots will cover any application from the smallest schools, clubs and churches to full-scale entertainment facilities.

Features:

• Throws from 25-150 feet
• 3:1 zoom range
• Draws less than 8 amps
• 250 hour lamp life
• Dowser, iris and clipper
• Built-in, six-color automatic color changer
• Steep 70° downward tilt and 60°upward tilt
• Full 360° horizontal sweep
• Superb lumen maintenance
• Hour meter
• Lightweight aluminum housing, bulkheads and components
• Built-in solid-state ballast
• Sturdy 4-point collapsible base
• Quiet and cool running
• Easy to transport – easy to operate –easy to afford

Options:

• Custom Road Case rugged, fiberglass coated, lightweight; designed specifically for the Ultra Arc Series II.
• Available for 220/240 volt 50 Hz operation.

Specifications:

• Head Length: 40"
• Overall Head Height: 22.125"
• Overall Height w/Base: 56.5"
• Height of Pivot Point: 45"
• Floor to Beam Center: 49"
• Base Width: 42"
• Front Clearance Radius for: Vertical Movement: 26", Horizontal Movement: 24"
• Rear Clearance Radius for: Vertical Movement: 23", Horizontal Movement: 22"
• Maximum Height at Rear with: Downward Tilt: 68"
• Maximum Height at Front with: Upward Tilt: 70.5"
• Maximum Downward Tilt: From Horizontal: 70°
• Maximum Upward Tilt: From Horizontal: 60°
• Horizontal Sweep: 360°
• Lamp: HTI 400 Watt
• Power Requirement: 8 A 120 VAC
• Total Operating Weight Including Base: 128 lbs
