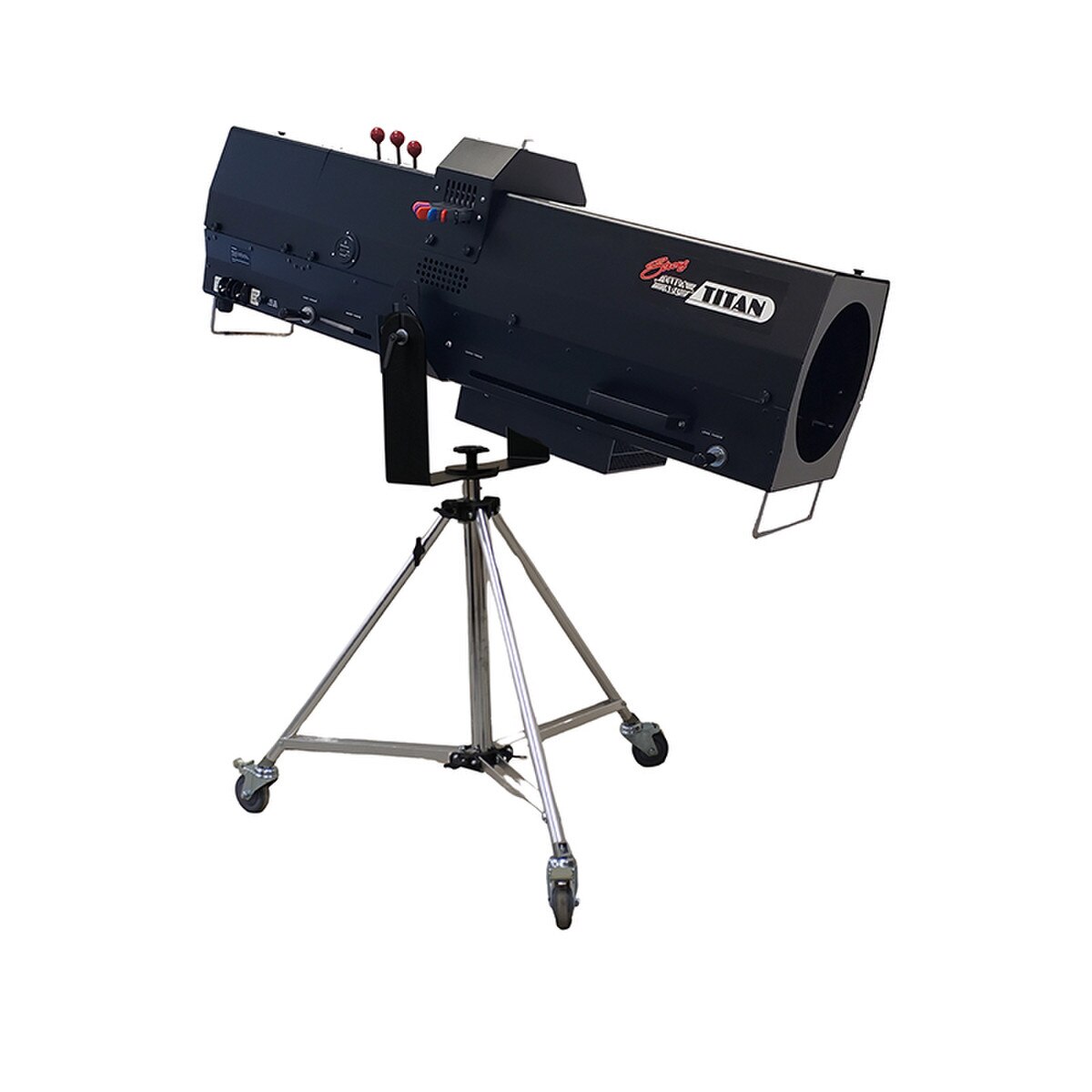

Strong Lighting Ultra Arc Titan Long Throw 120V with Heavy Duty Tripod Stand

The Ultra Arc Titan is the largest of the Ultra Arc family. Constructed of the highest quality components, the Titan continues the Ultra Arc tradition of dependability and insures years of safe, reliable service.

The Titan features a 1400 watt single ended Lok-it HTI lamp with a rated life of 750 hours and a color temperature of 6000 K and a CRI greater than 93.

Designed for throws between 100 and 300 feet the Titan's precision lens system and specially designed reflector produce maximum light output while maintaining a flat even field. A lightweight electronic ballast is built into the light and can be order to operate on either 120 VAC or 208/240 50/60 Hz power input.

Features:

• Quiet and cool running
• 1400W operation
• 6000° K Color Temperature - CRI> 93
• Arc Viewing Port on Lamphouse Door
• Six-Color, Self-Canceling Color Changer with color filters
• Lightweight aluminum construction
• Manual “barndoor” Dimming Control
• Zoom beam adjustment range 3:1
• Nichrome Steel Iris
• Rear access door for quick and easy lamp adjustments
• State-of-art electronic power supply

Specifications:

• Source: 1400 Watt HTI Lok-it
• Lamp Life: 750 hours
• Color Temperature: 6000° K
• CRI: >93
• Output: 68,000-51,000 lumens
• Useful Throw: 100-400' (30 - 120m)
• Indicators: Hour meter
• Controls: On/Cooling/Off
• Douser: Manual “barndoor” type
• Zoom: 3° to 9°
• Color Module: Six position self-canceling color changer
• Power Requirement: 120VAC - 20A, 208VAC - 15A
• Construction: Powder-Coated Aluminum
• Reflector: Electroformed
• Weight (light): 90 lbs (40.8kg)
• Weight (stand): 40 lbs (18.1kg) Four Leg Folding
• Packed Weight: 155 lbs (70.3kg)
• Packed Dimensions: 60 x 26 x 24" (152 x 66 x 61cm)
• Packed Volume: 22 ft (.622m)

Strong Lighting Ultra Arc Titan Long Throw User Manual.pdf
Strong Lighting Ultra Arc Titan Long Throw Datasheet.pdf
