TRUSST Arc Section - 3 m (9.8')

TRUSST® is comprised of modular aluminum components that are manufactured from high-grade and lightweight aluminum which is easy for transportation and setup. All TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum.

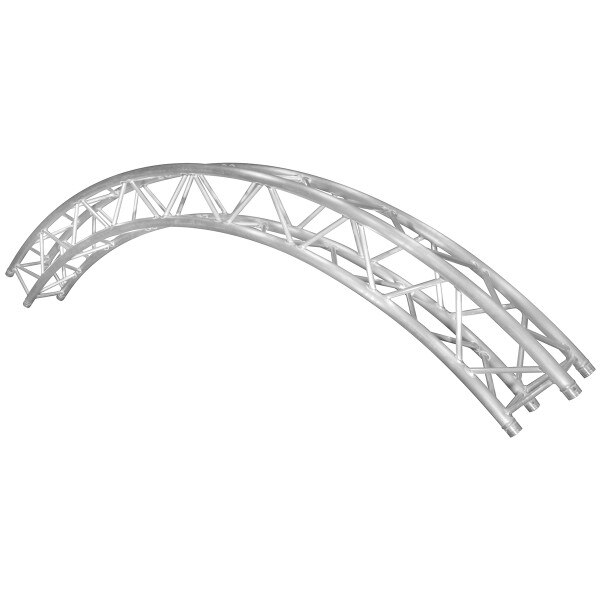

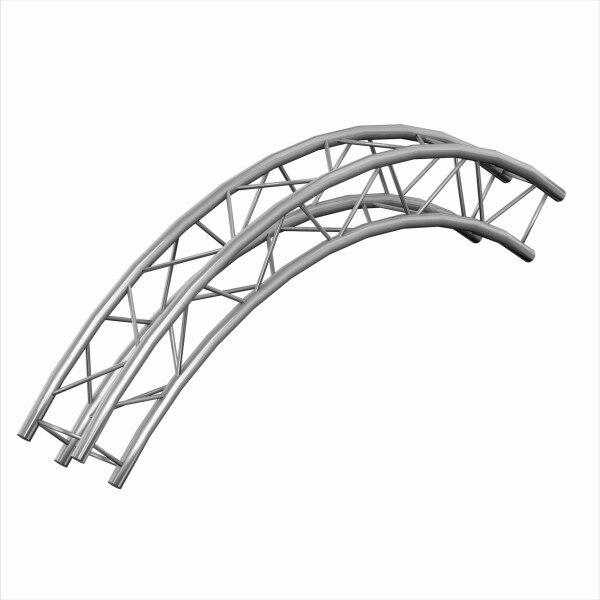

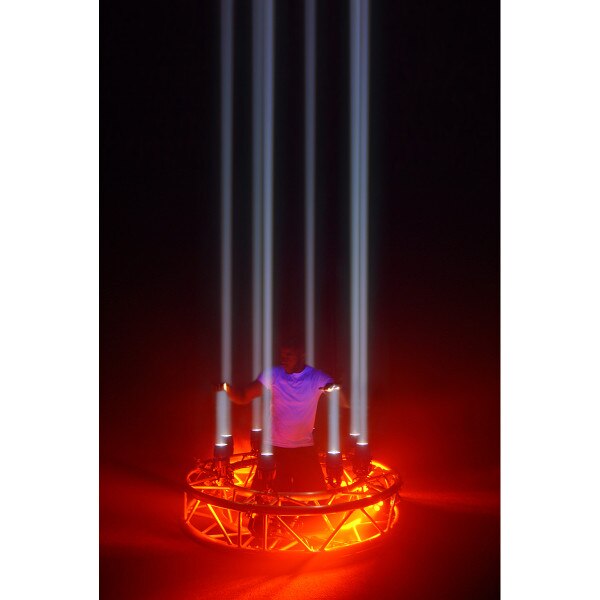

The CT290-430CIR-90 arc truss with an outside diameter of 3.0 meters (9.84ft) and a 90° arc is compatible with many TRUSST® accessories and ideal for a multitude of applications and designs when used in combination with TRUSST® Sticks, Corners, Base Plates, Accessories and Clamps.


Features:

• Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
• Carefully crafted by SLV-certified welders
• Compatible with many TRUSST® accessories to create an astonishing and custom presentation

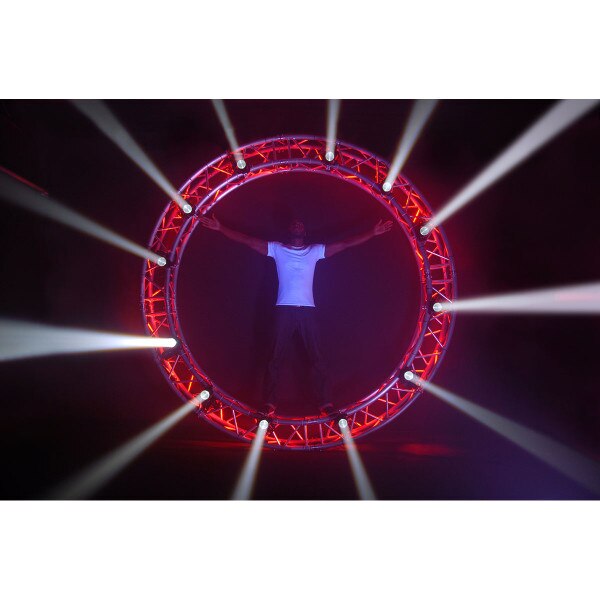

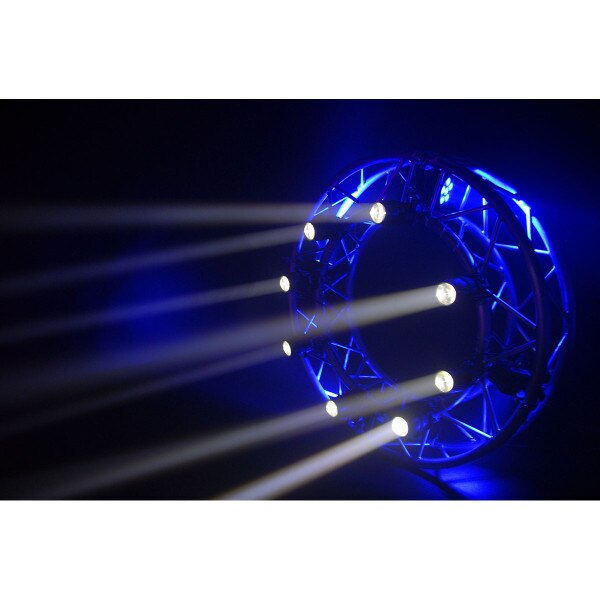

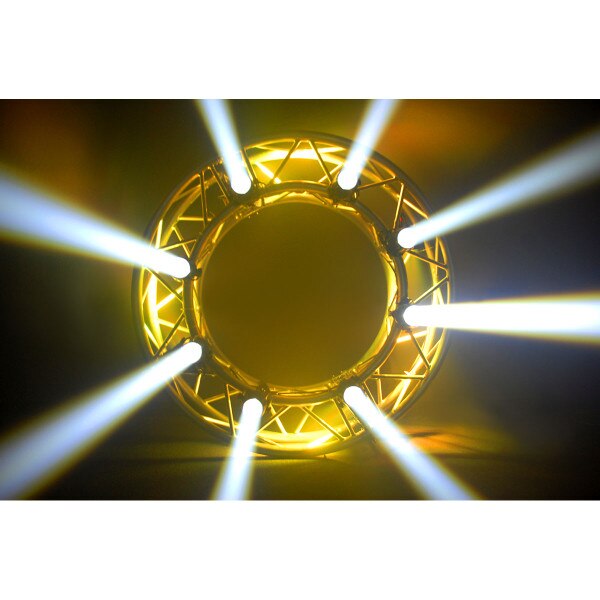

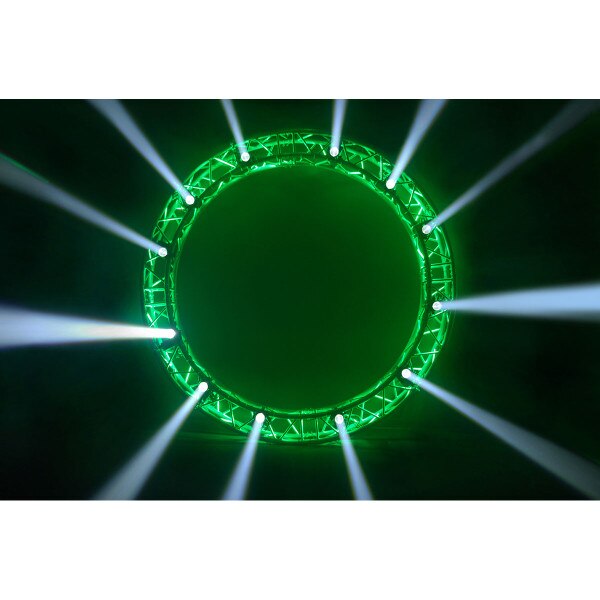

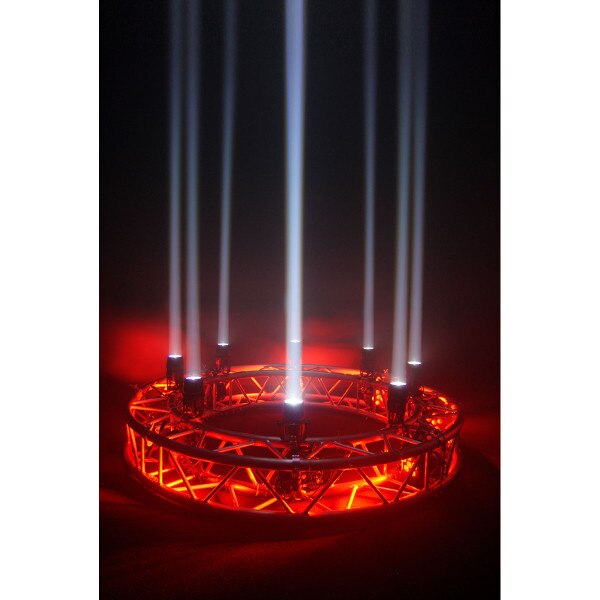

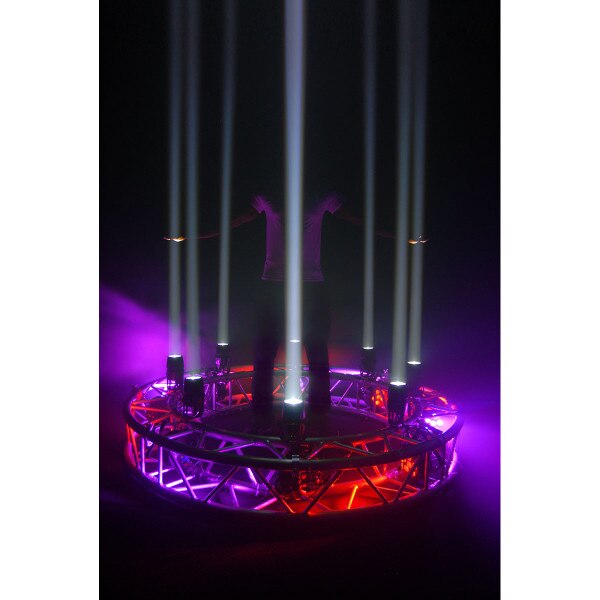

• Available in different sizes for mobile entertainers, productions, nightclubs and retail stores
• Includes connecting hardware

Specifications:

• Outside diameter: 9.84 ft (3 m)
• Inside diameter: 8.20 ft (2.5 m)
• Arc: 90°
• Outer diameter tube: 2 in (50 mm)
• Diagonal bracing: 0.75 in (20 mm)
• Wall thickness: 0.08 in (2 mm)
• Weight: 28.6 lb (13 kg)
• Approvals: SLV
