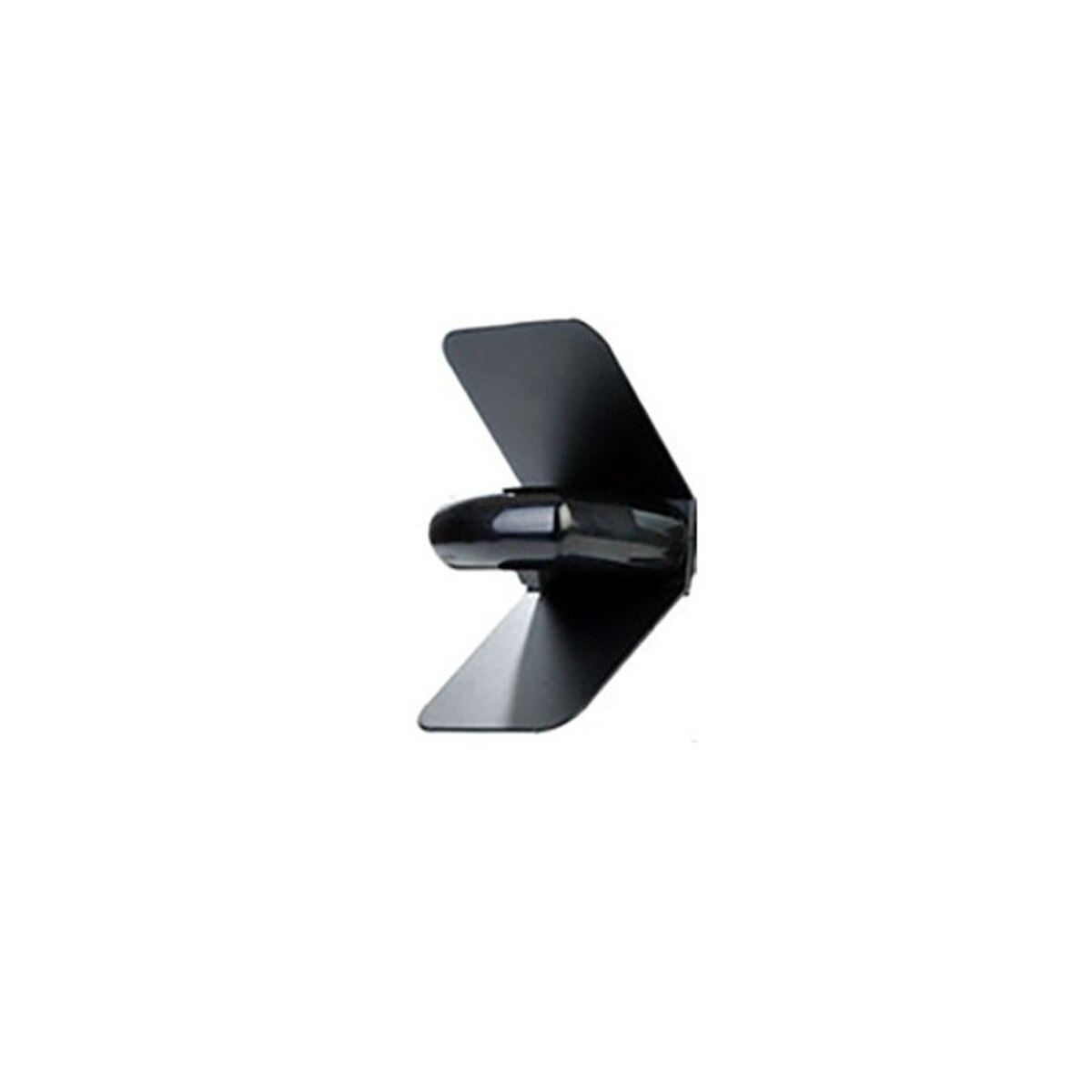

Tempest 2.4GHz 9dBi Directional Corner Reflector Antenna with Female N Connector

(0)No Reviews yet

Details

Back

Details

2.4GHz directional corner reflector antenna which utilize a half-wavelength element configuration.

Features:

9 dBi Mini model for 2.4 GHz applications
Small aperture; minimizes wind loading
Split balun feed provides superior bandwidth & gain performance

Specifications:

Frequency: 2300 - 2600 MHz
Gain: 9dBi
Bandwidth@2:1 VSWR: 200 MHz or better
Impedance: 50 Ohm nominal
Maximum Power: 100 Watts
Beamwidth: 75o El, 65o Az
Front-to-Back ratio: 22 dB or better
SCR11-SCR14 Panel Size: 7" x 7" ea. (178mm x 178mm)
Aperture: 3" x 5.5" (76 mmx140 mm)
Panel Size: 3" x 3" ea. (76 mm x 76 mm)Lightning Protection: DC grounded, external protection recommended
Max Wind Velocity: 125+ mph (200 kph)
Operating Temp: -40o to +85o C
Material: Powder-coated aluminum, ABS plastic radome
Weight: 1 lbs. (0.5 kg)
Pole Mounting: Hardware included
Mounting Dimension: Mounts up to 2" (51 mm) diameter mast
Connector: N female, attached at rear of antenna
