Therma Tour 800

The Therma Tour 800 is a powerful oil-based haze effect generator that produces an exceptionally fine, long-lasting atmospheric haze that excels at revealing light beams and mid-air effects. The 800W Therma Tour 800 creates a safe, clean and odorless haze effect that leaves no residue. The perfect small-particle haze for highlighting light beams, the unit holds two liters of fluid for over 35-hours of run time with no warm up time required. Hang time is incredibly long at over 3 hours in an enclosed space! Compact yet ruggedly built to withstand the day in and day out rigors of on-the-road use, multiple control options include a wireless RF remote, Magmatic Magfly or Elation E-Fly wireless DMX, wired remote, Magmatic App, and manual, on-board, touch screen control.

Specifications:

KEY FEATURES:

• 800 Watt low power consumption
• Over 35 hours of run time
• Haze lasting up to 3 hours after machine is off

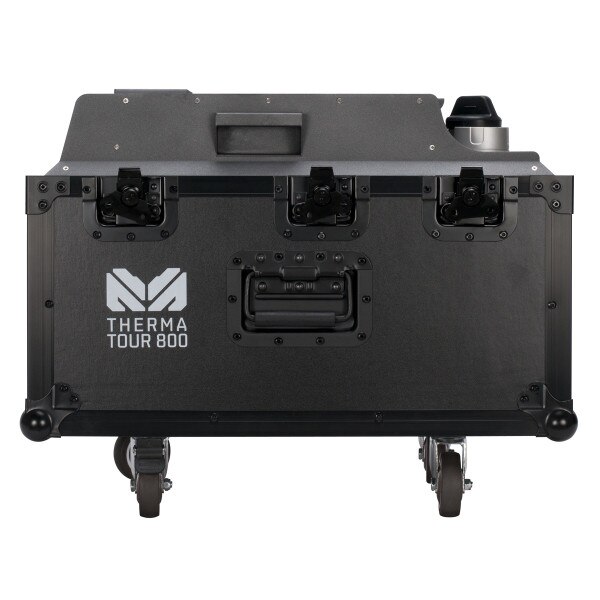

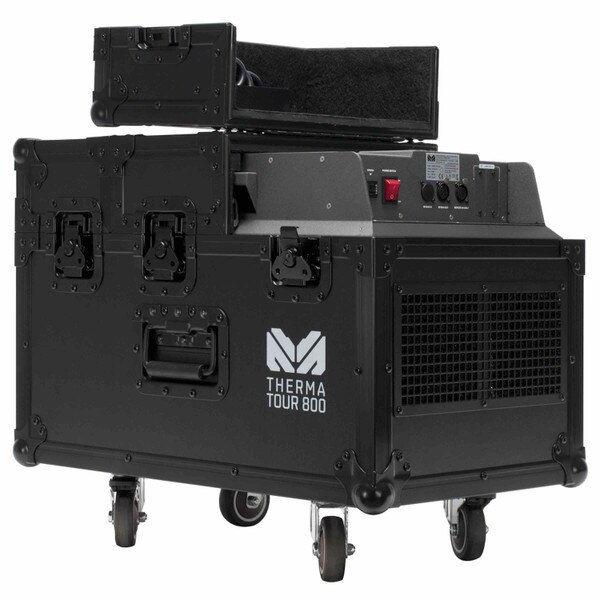

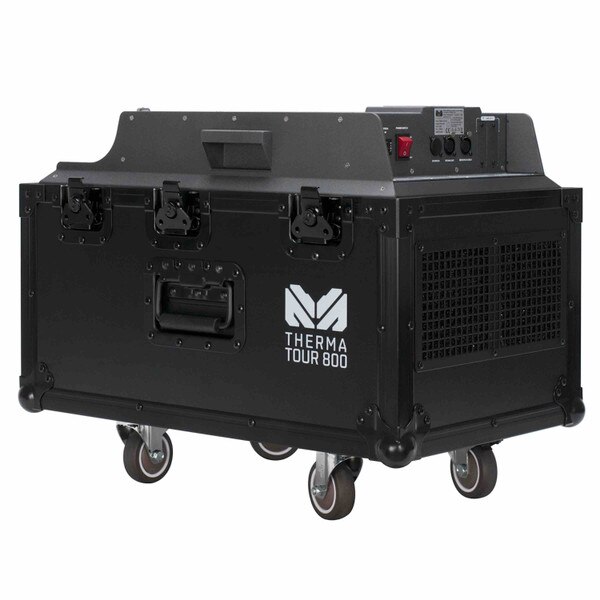

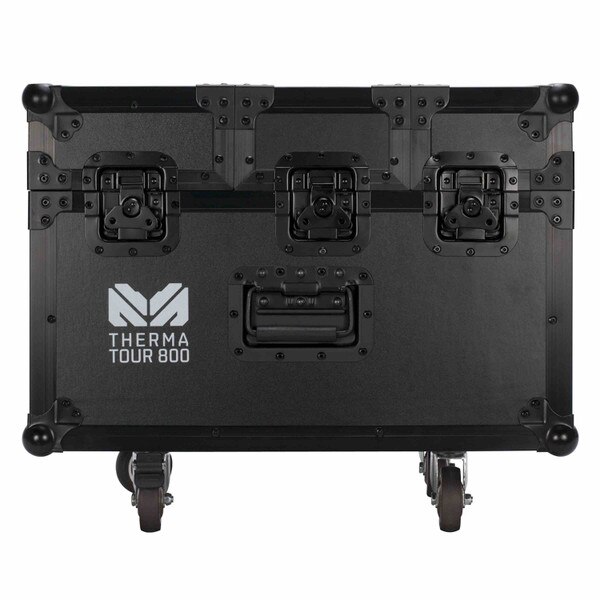

• Rugged mobile road case design
• Soundproof insulation for indoor use

DYNAMIC EFFECTS:

• Output: 5600 cu.ft / Min

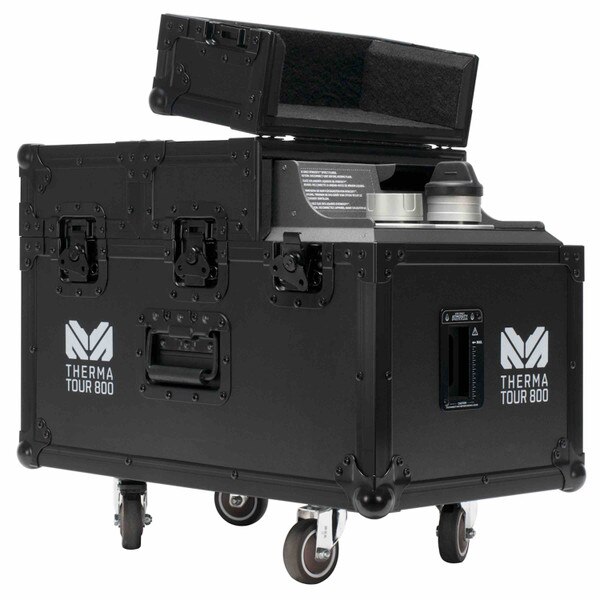

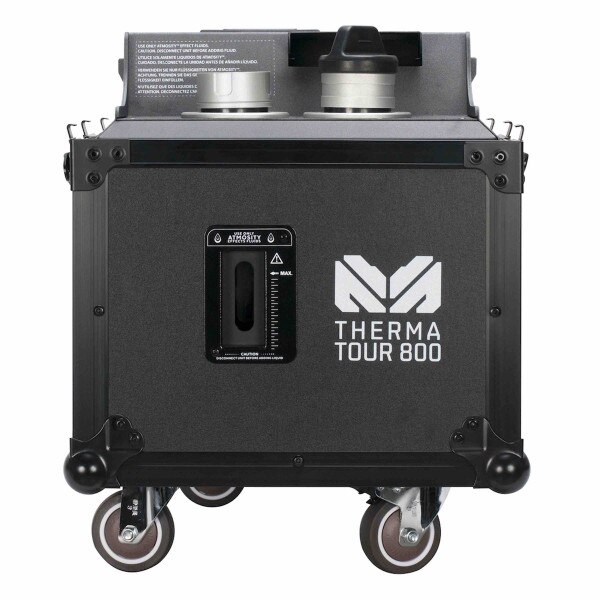

• External Visual Fluid Level Detection

COMPATIBLE FLUID:

• Atmosity ARH (Oil based fluid)

CONSTRUCTION / PHYSICAL / PERFORMANCE:

• External Visual Fluid Level Detection
• Fluid Tank Capacity: 2.5L
• Fluid Consumption: 1.5ml / Min.

CONTROL:

• 2 Card Inputs
• RDM (Remote Device Management)
• Control Protocol: DMX
• DMX Control Modes: 2 (1 & 3 Channel)
• On-Board Timer Control
• 5 Factory Presets
• 4-Pin Wired Remote Input for optional remote

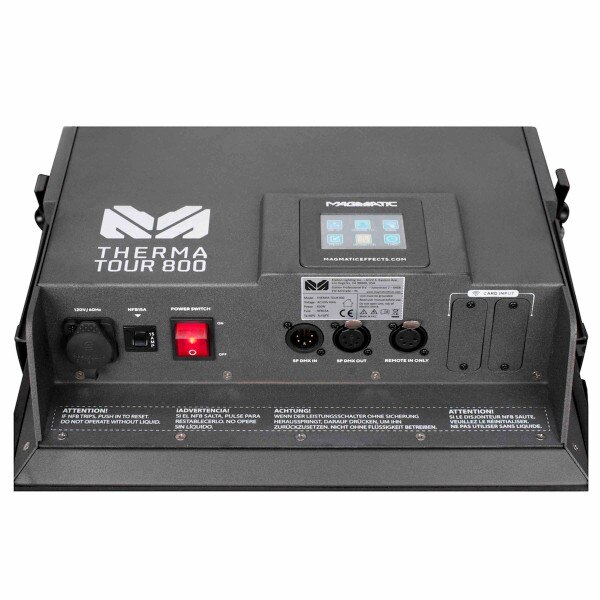

• Touch Screen Display
• Manual Control via on-board display

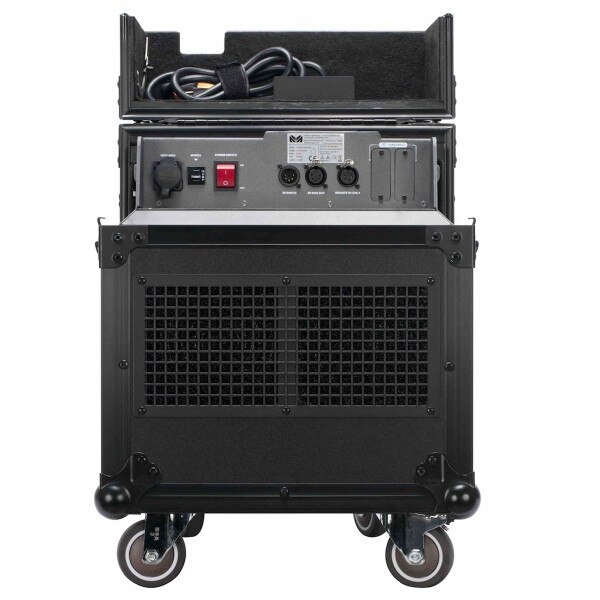

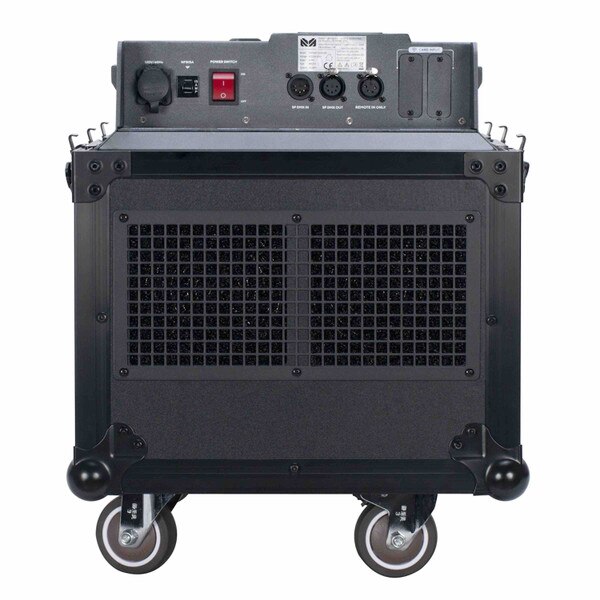

CONNECTIONS:

Data Connectors: 5-Pin XLR/Out, 4-Pin XLR Out
Locking Power Connector

SIZE / WEIGHT:

Length: 24.45 in. (621.13mm)
Width: 15.34 in. (389.63mm)
Height: 19.87 in. (504.76mm - With Casters)
Weight: 93 lbs. (42kg)

ELECTRICAL:

Power Consumption: 820w
Input Voltage: 120V, 230V, 240V, 50 & 60Hz
Breaker Size: 15A (120V version)
Breaker Size: 10A (230V version)

THERMAL:

Maximum Temperature (Ambient): 104°F (40°C)
Exterior Surface Temperature: 122°F (50°C)

WHATS INCLUDED:

Flight Case
14 AWG Locking Power Cable

OPTIONAL ACCESSORIES:

MAGFLY Card
MAG-RF Card
Atmosity ARH (Oil base haze fluid)

APPROVALS / RATINGS:

CE | cETLus | IP20
