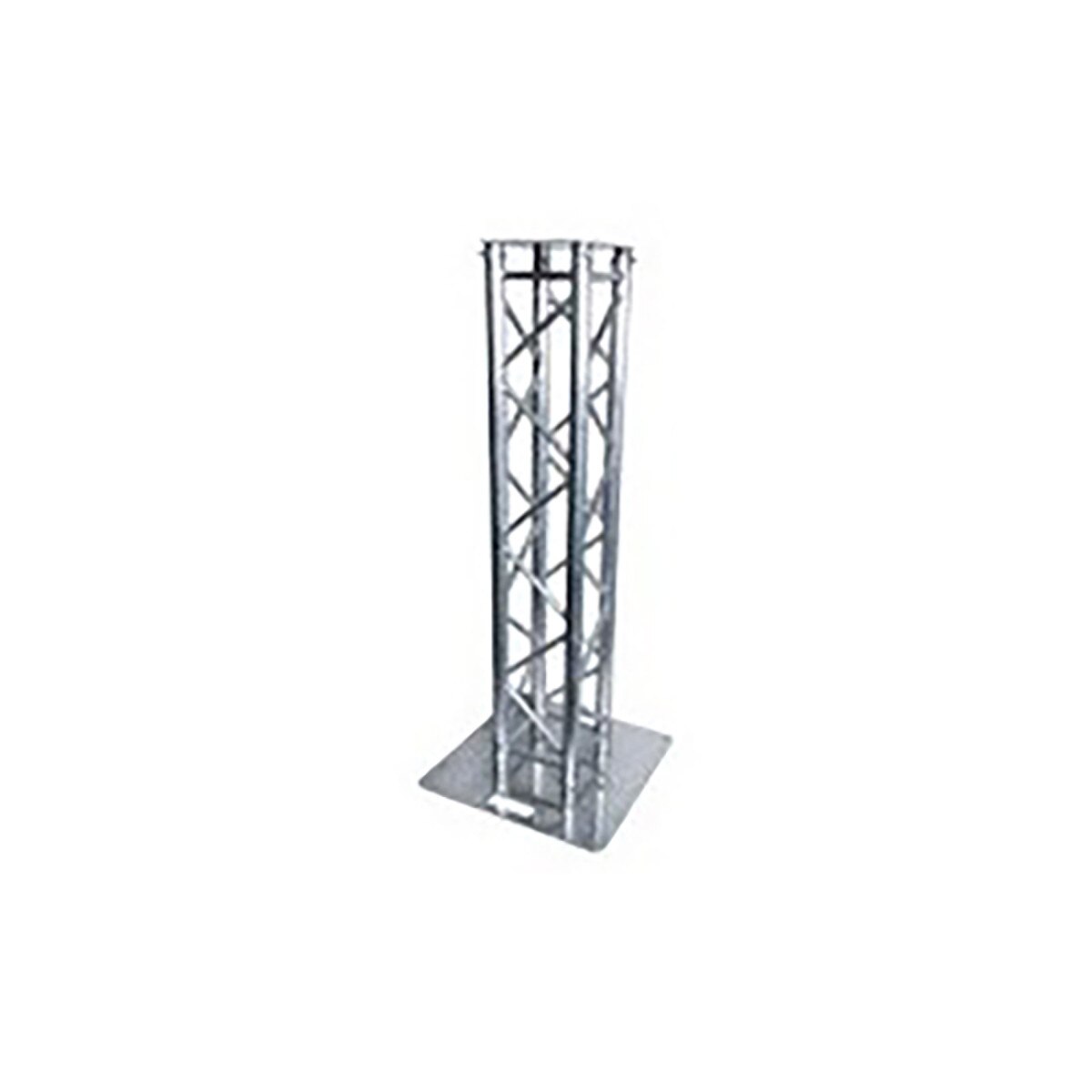

Trusst 12in. Totem Package - 1.5m

This Truss Totem from TRUSST® features 1 CT290-4112B 12" base plate, 1 CT290-4124B 24" base plate, and 1 CT290-415S straight 1.5m truss segment.

About TRUSST Base Plates:

Made of lightweight aluminum, base plates serve double duty as a foundation for truss totems using TRUSST's TUV-certified truss pieces or when placed on the top of a truss totem to hold a fixture.

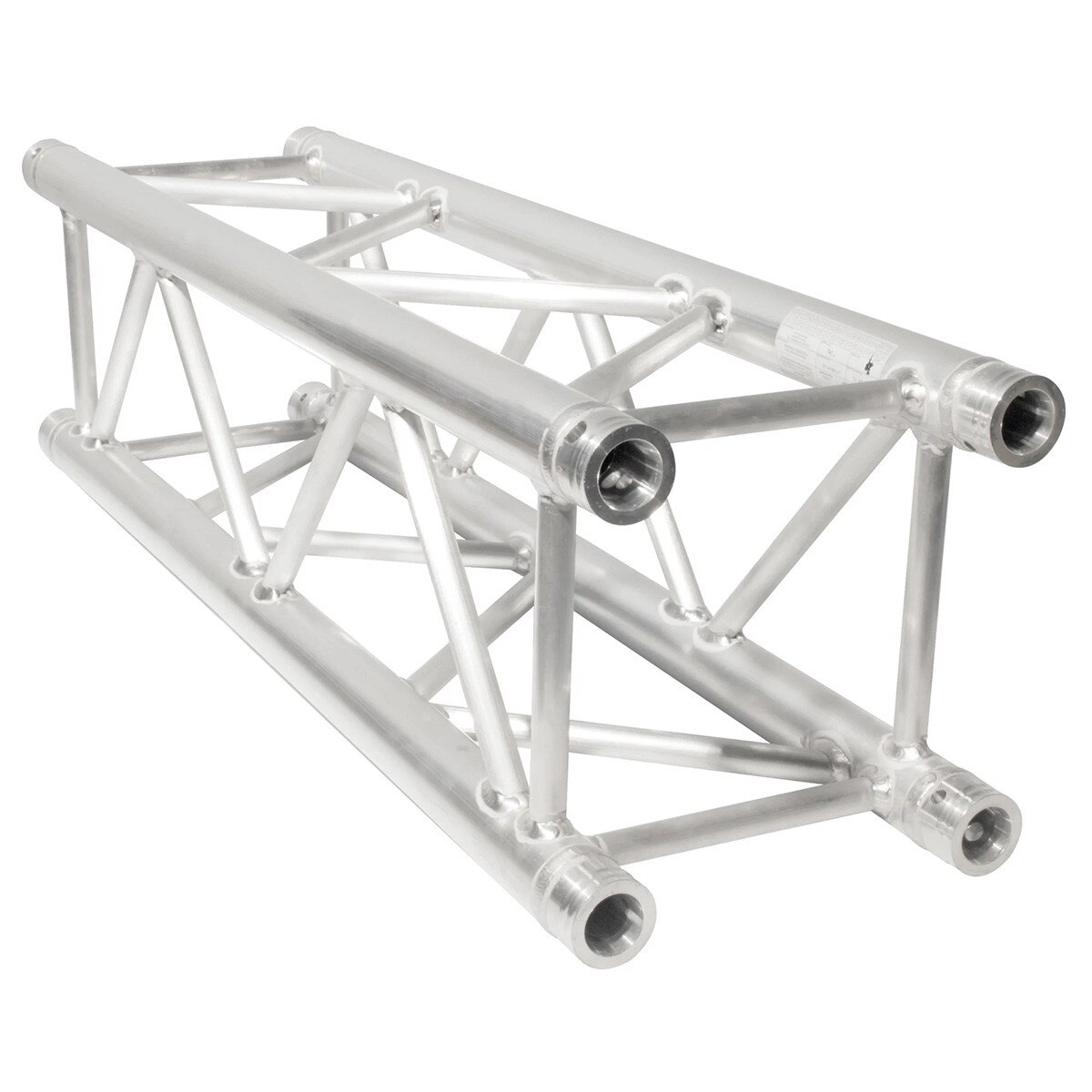

About the CT290-415S Truss Segment:

The CT290-415S is a TUV-certified truss segment measuring 4.92 ft (1.5 m) in length. Well suited for a host of applications when used in tandem with TRUSST corners, base plates, clamps and accessories (all sold separately), this CT-290 series straight box truss section is made from lightweight, high-grade aluminum for easy transportation and setup.

Features:

• Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
• Carefully crafted by SLV-certified welders
• Compatible with many TRUSST accessories to create an astonishing and custom presentation
• Great for mobile entertainers, event productions, small productions, nightclubs, retail displays and more
• Includes connecting hardware

Specifications:

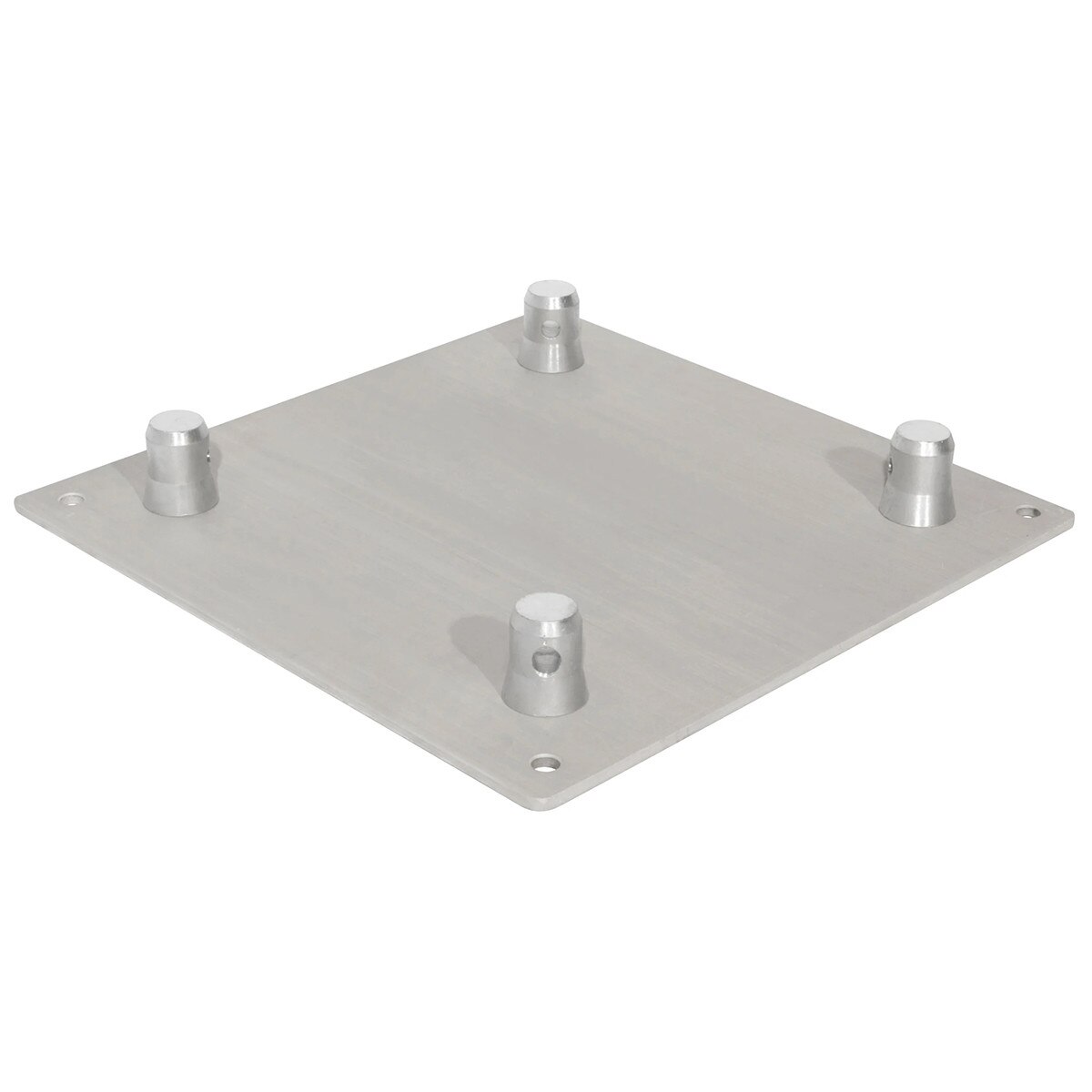

• CT290-4112B 12" Base Plate
• Thickness: 0.24" (6 mm)
• Dimensions: 12" x 12" (305 x 305 mm)
• Weight: 7.5 lbs (3.4 kg)

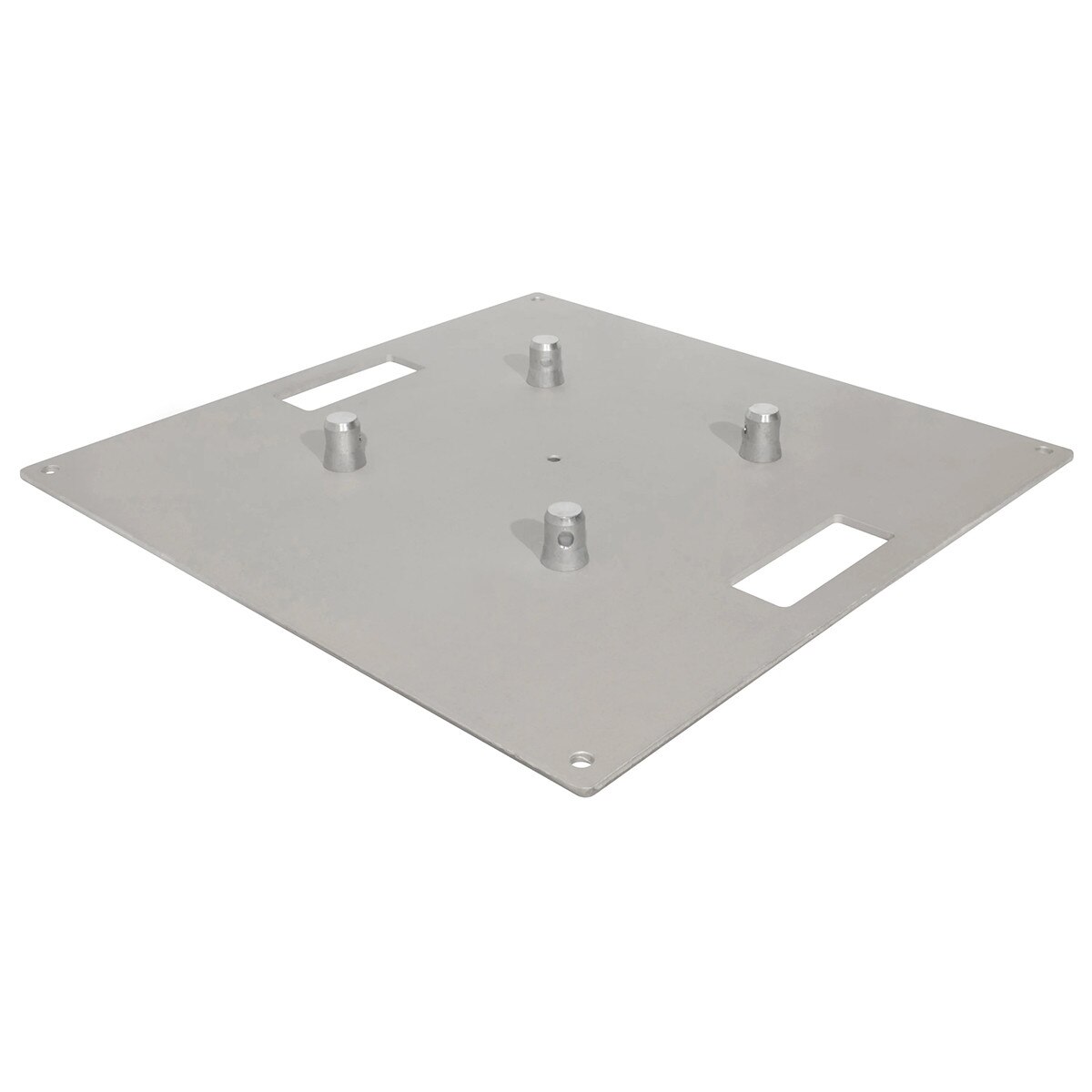

CT290-4124B 24" Base Plate:

• Thickness: 0.24" (6 mm)
• Dimensions: 24" x 24" (610 x 610 mm)
• Weight: 21.1 lbs (9.6 kg)

CT290-415S Truss Segment:

• Length: 4.92 ft (1.5 m)
• Outer diameter tube: 2" (50 mm)
• Dimensions: 11.42" x 11.42" (290 x 290 mm)
• Diagonal bracing: 0.75" (20 mm)
• Wall thickness: 0.08" (2 mm)
• Weight: 21.16 lbs (9.6 kg)
• Approvals: TUV, SLV
