Trusst 12in. Totem Package - 2m
Details

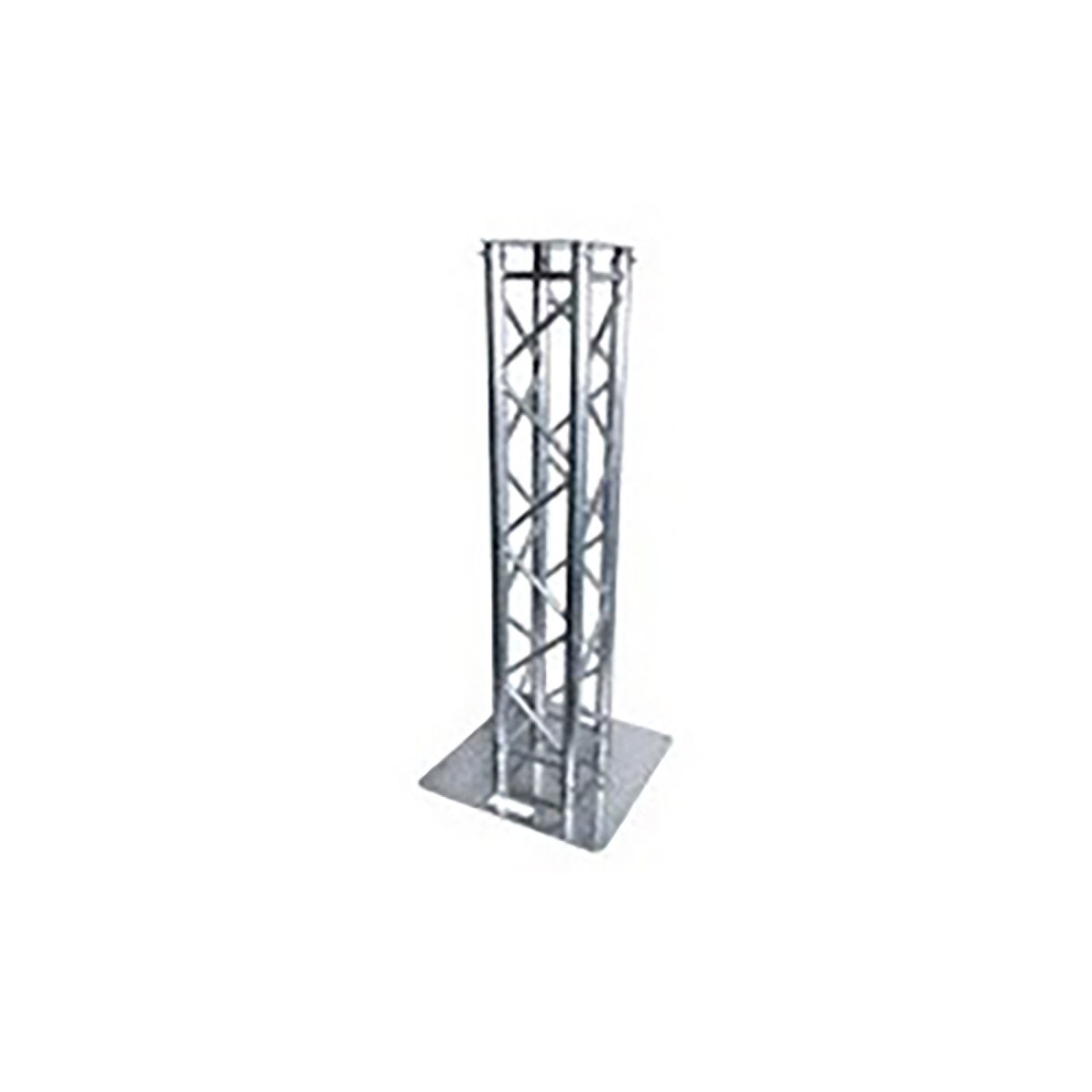

This TRUSST® Truss Totem features 1 CT290-4112B 12" base plate, 1 CT290-4124B 24" base plate and 1 CT290-420S straight 2m truss segment.
Made of lightweight aluminum, base plates serve double duty as a foundation for truss totems using TRUSST's TUV-certified truss pieces or when placed on the top of a truss totem to hold a fixture.
The CT290-420S is a TUV-certified truss segment measuring 6.56 ft (2 m) in length. Well-suited for a host of applications when used in tandem with TRUSST corners, base plates, clamps and accessories (all sold separately), this CT-290 series straight box truss section is made from lightweight, high-grade aluminum for easy transportation and setup.
Features:
- Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
- Carefully crafted by SLV-certified welders
- Compatible with many TRUSST accessories to create an astonishing and custom presentation
- Great for mobile entertainers, event productions, small productions, nightclubs, retail displays and more
- Includes connecting hardware
Specifications:

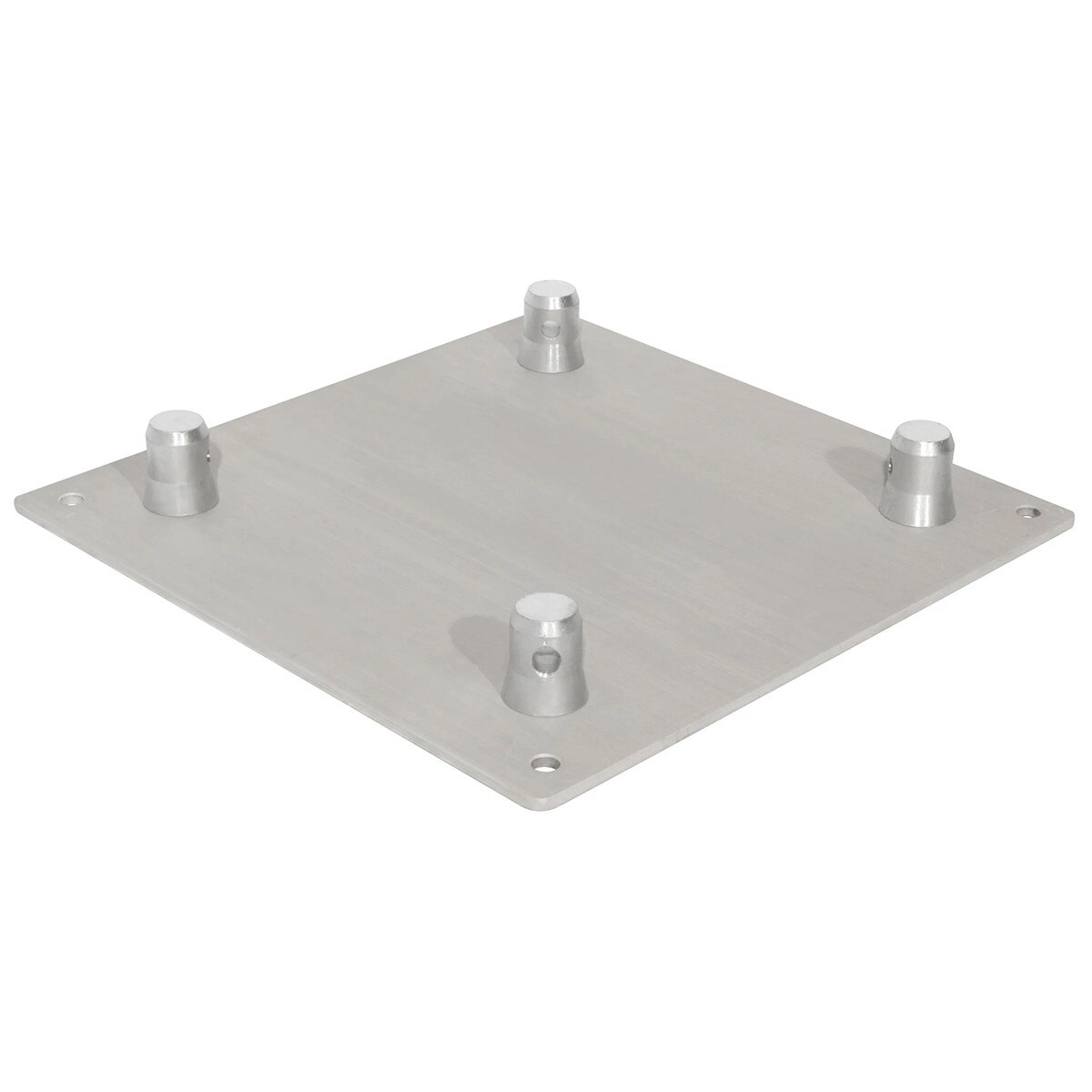

- CT290-4112B 12" Base Plate
- Thickness: 0.24" (6 mm)
- Dimensions: 12" x 12" (305 x 305 mm)
- Weight: 7.5 lbs (3.4 kg)

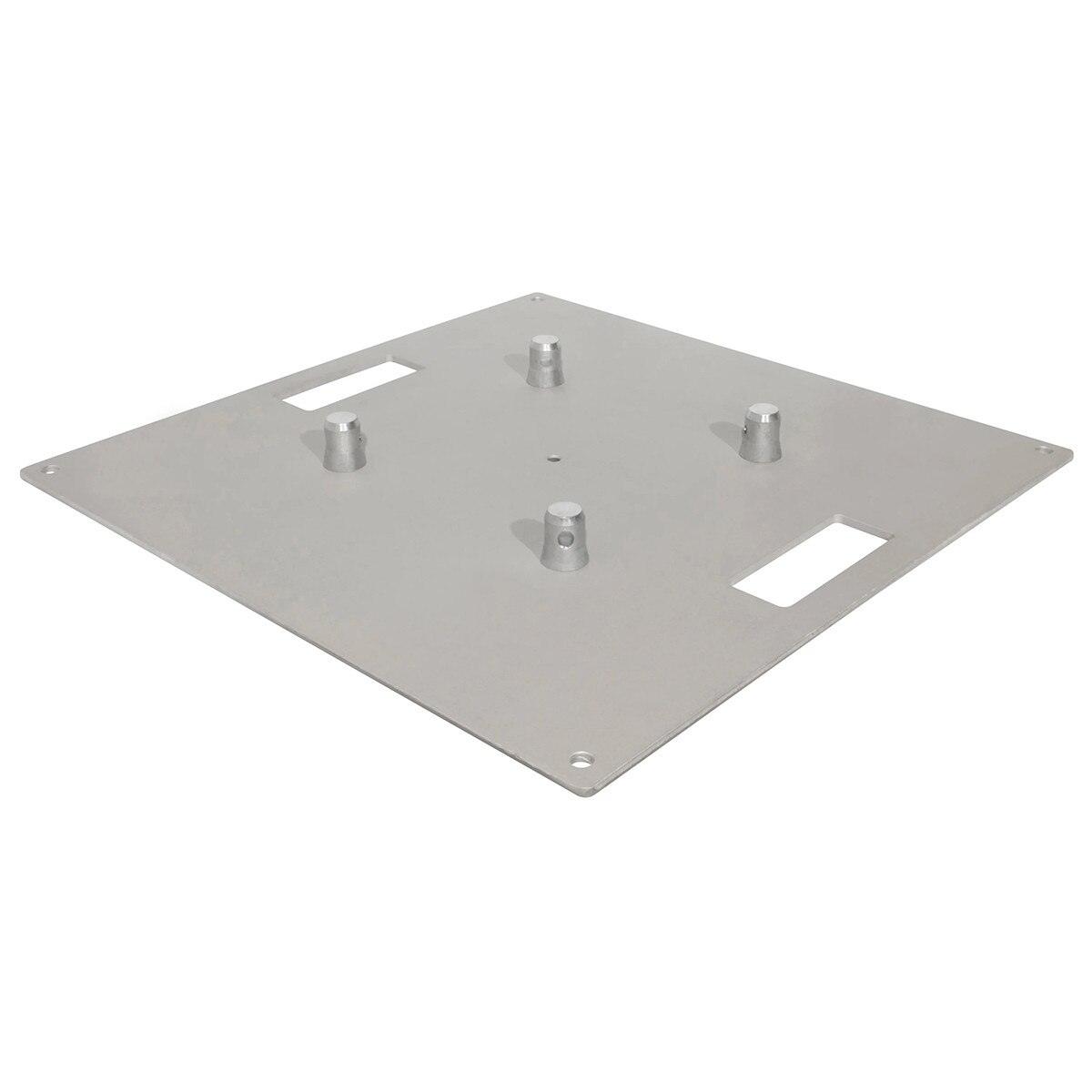

CT290-4124B 24" Base Plate:
- Thickness: 0.24" (6 mm)
- Dimensions: 24" x 24" (610 x 610 mm)
- Weight: 21.1 lbs (9.6 kg)

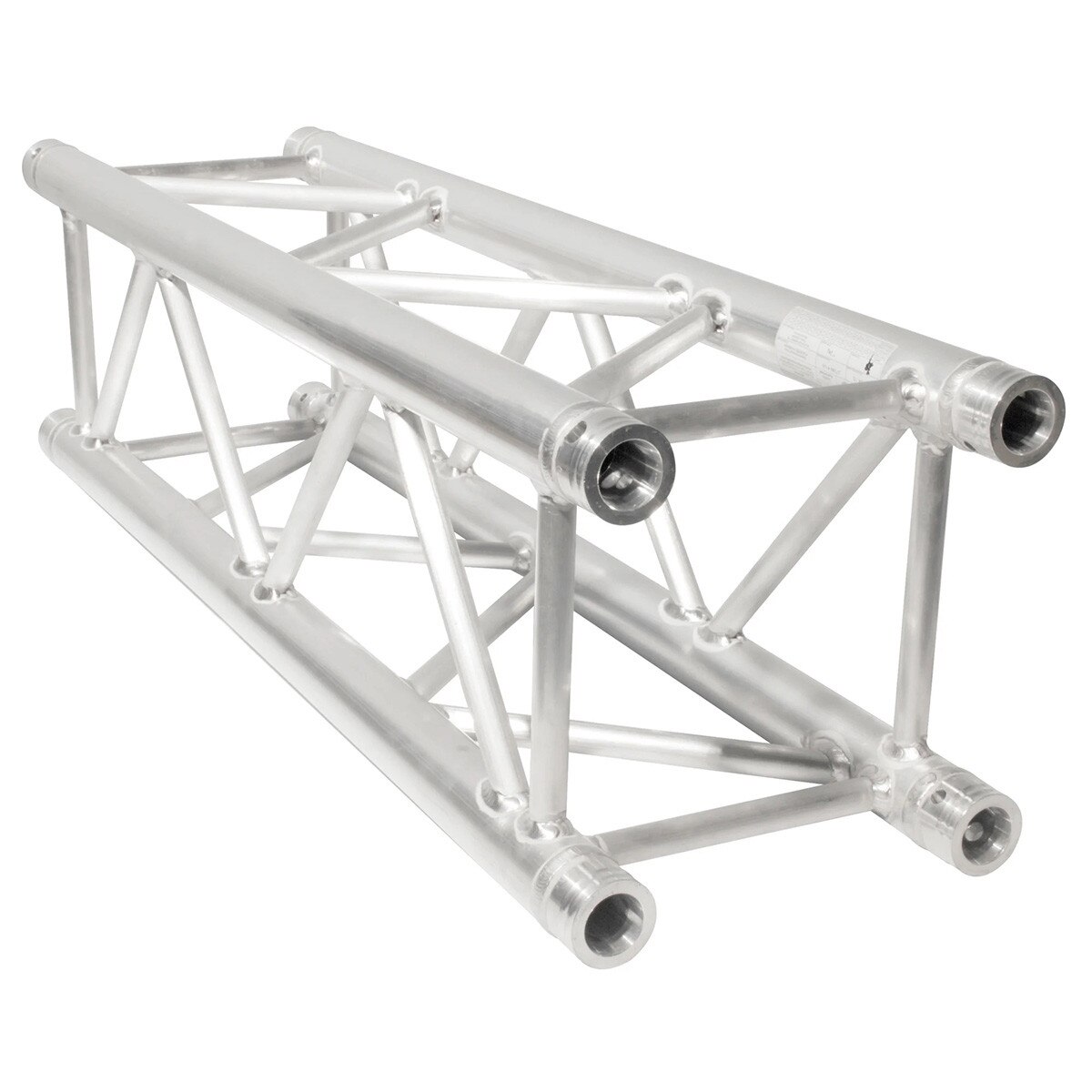

CT290-420S Truss Segment:
- Length: 6.56 ft (2 m)
- Outer diameter tube: 2" (50 mm)
- Dimensions: 11.42" x 11.42" (290 x 290 mm)
- Diagonal bracing: 0.75" (20 mm)
- Centerpoint load: 4,568 lbs (2,072 kg)
- Distributed load: 6,093 lbs (2,764 kg)
- Wall thickness: 0.08" (2 mm)
- Weight: 26.45 lbs (12 kg)
- Approvals: TUV, SLV
