VaporFlame VF6b

VaporFlame VF6b

A safe flame effect that uses compressed air and water to create an amazing  5-foot flame! It's perfect for where fog and pyro just won't do!

Features:​

• 5-inch to 5-foot flame effect
• 1 CFM Air
• 1/4 Gal/Hour water
• Attaches to any LED light with a 7.5-inch Gel Frame Slot
• Accepts “b” series adapter to bolt onto Blizzard Pro TOURNado Fixtures for an "all-in-one" effect solution

Specifications:

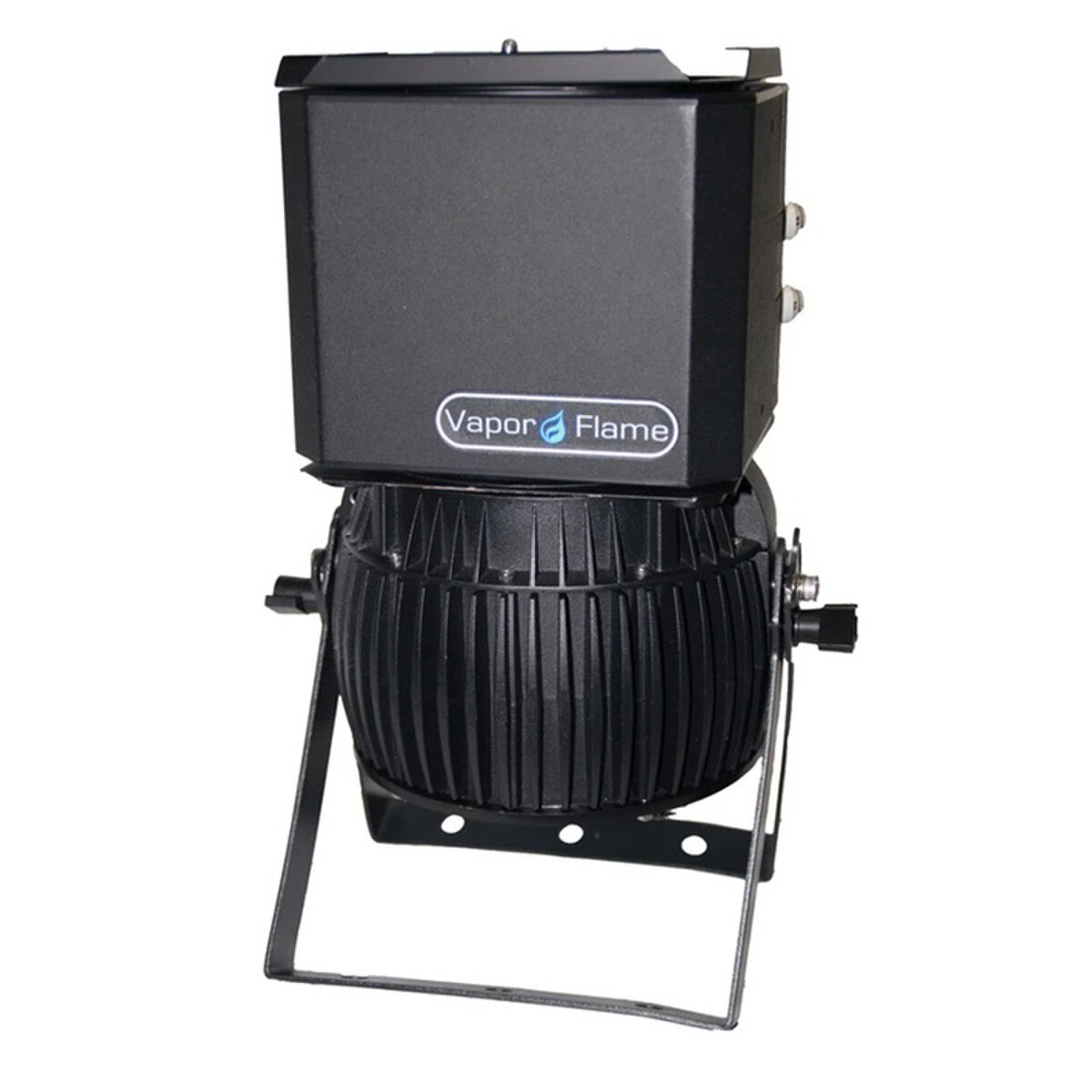

• The VF6b is a flame effect that attaches to the standard 7.5-inch gel frame slot on an LED Leko or Par, fixture turning a standard light into a VaporFlame effect fixture.  Our most versatile fixture, the VF6b can create a range of effects from a low 5-inch flame to a 5-foot blaze and can be mounted at any angle.
• No heat or flammable material makes the VaporFlame safe to use in close proximity to artists, gear, and scenic pieces.

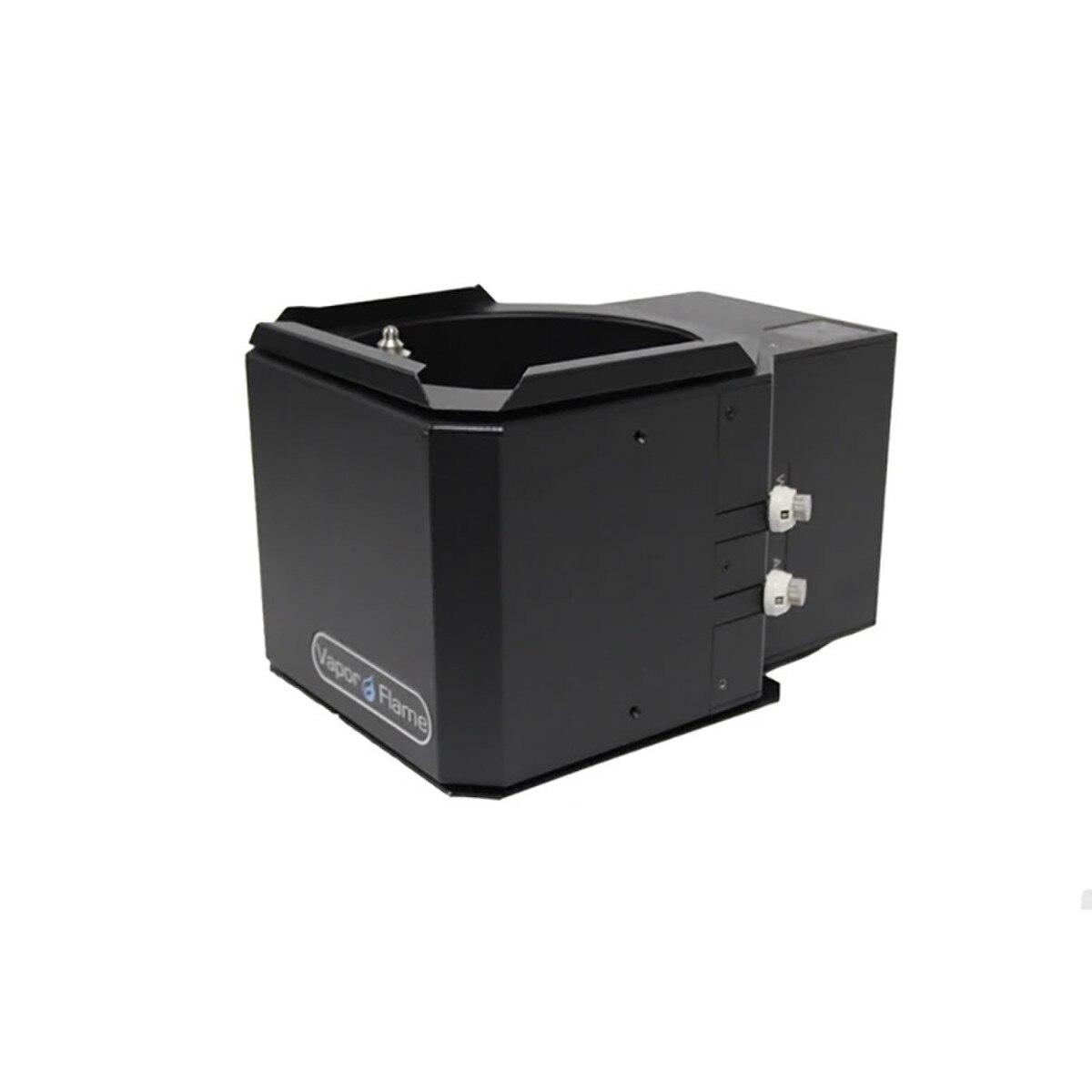

• The VF6b takes 2 channels of DMX, for individual control of the air and water output.  Adjustment dials allow the user to control the fullness of the flame from the unit, creating the most realistic fake flame available.
• Connected to any potable water line and air supply, the VF6b consumes only 1/4th gallon of water per hour and 1 cfm of air. VaporFlame fixtures atomize their vapor plumes so as not to collect on gear or surfaces.

The Go-Kit:

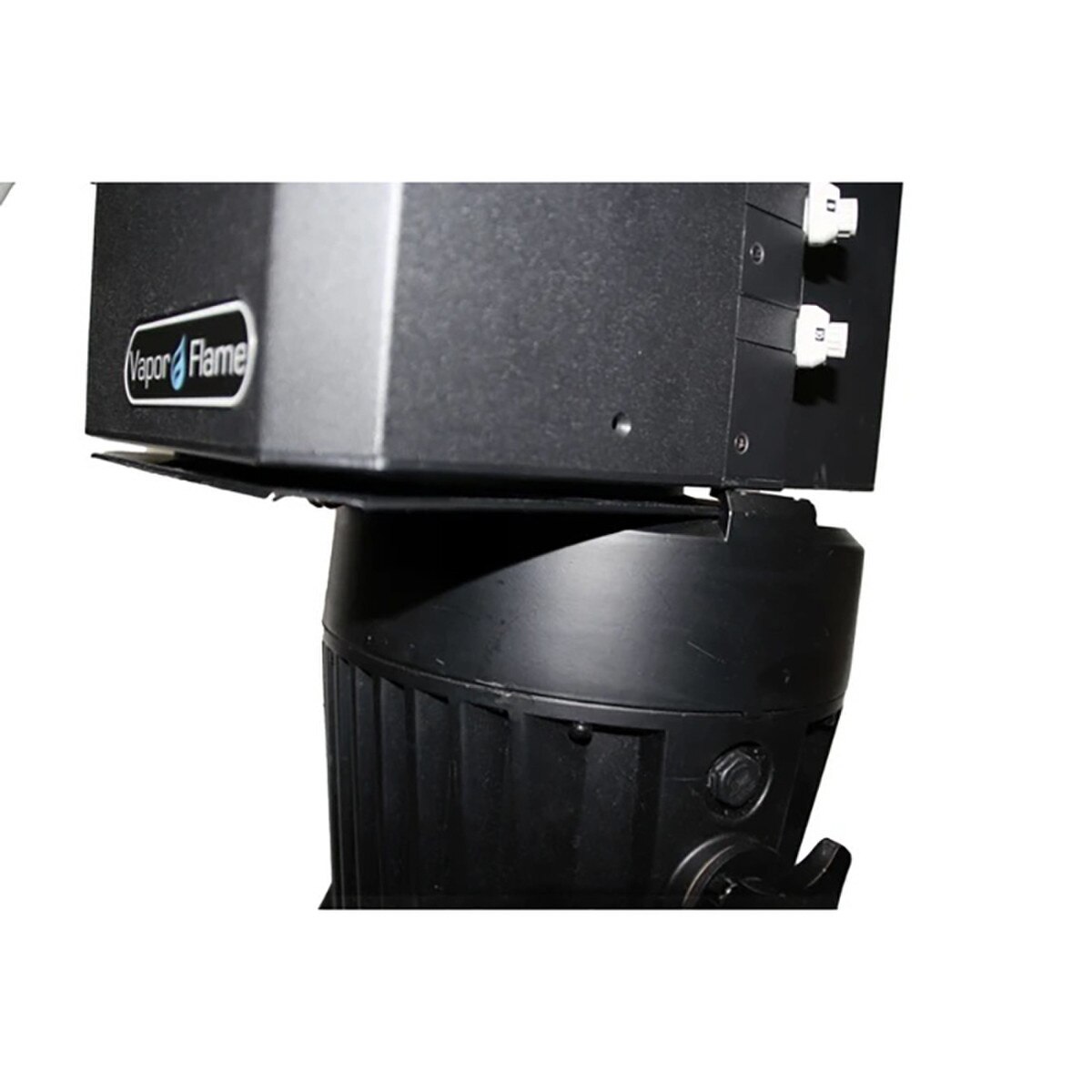

• The VF6b units feature the ability to bolt directly to the face of the Blizzard TOURNado lighting fixture. The Go-Kit from VaporFlame allows a more secure connection between the VaporFlame units and the lighting fixtures. Ideal for theatrical use, overhead installations or in close proximity to guests.

VF6b Manual.pdf
VF6b Manual Quick Start.pdf
VF6b Cut Sheet.pdf
