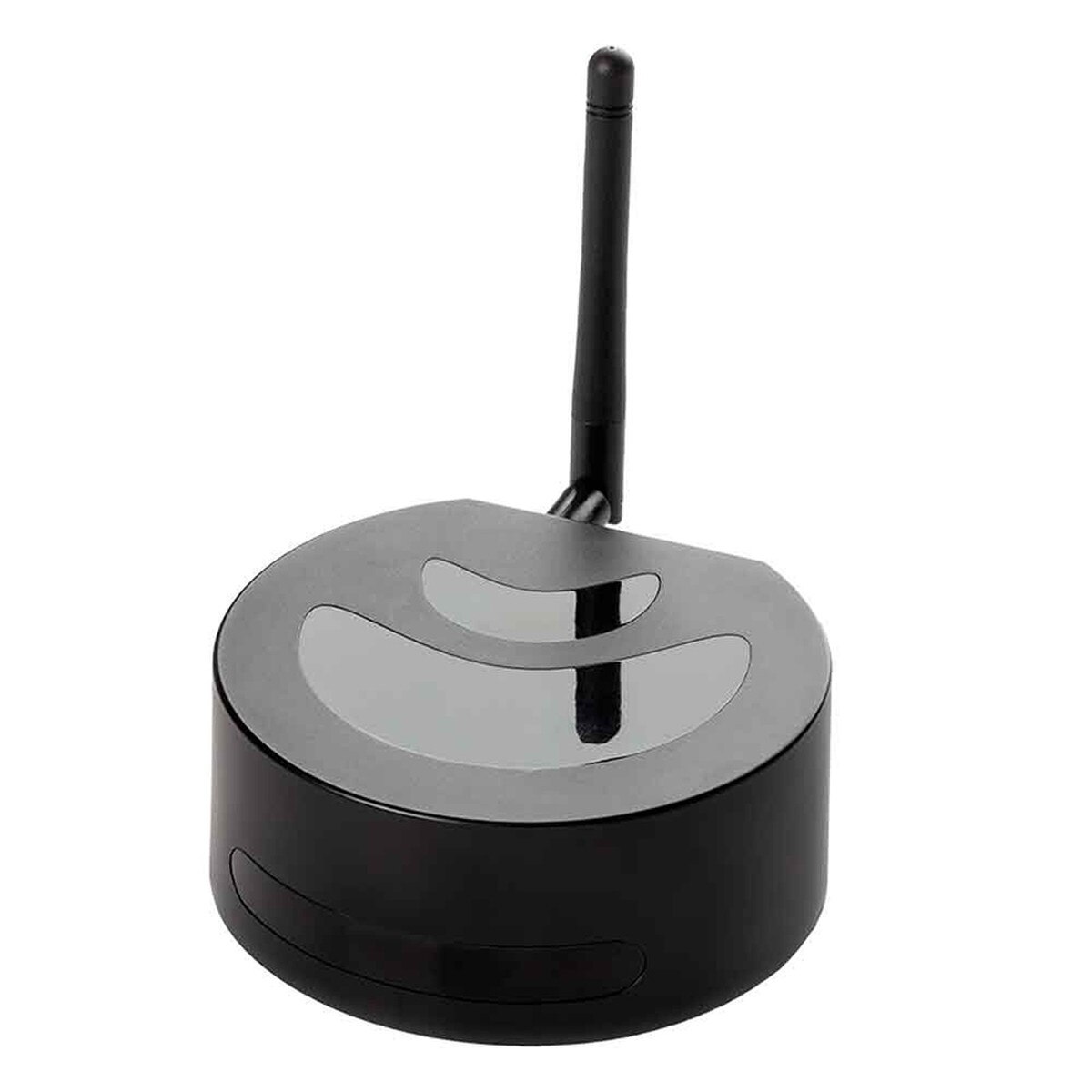

W-DMX Orb RX - Wireless DMX Receiver

At A Glance:

W-DMX Orb RX gives you cable-free control over your lighting setup, so you won't have to run cables from your controller to your fixtures.

Details:

Light it up like a pro!

Orb gives you cable-free control over your lighting set-up, so there is no more running cables from your controller to your fixtures. It is available as a transmitter or a receiver—either way, it’s plug-and-play. Connect the transmitter to your controller and the receiver to your fixtures… and boom, instant wireless control!

And you get the same rock-solid W-DMX performance loved by the lighting professionals.

Experience Wireless DMX

Orb uses W-DMX technology – an incredibly reliable wireless alternative to the DMX cable.

It is also completely compatible with other W-DMX and LumenRadio CRMX products so as your business grows, you don’t have to replace everything all at once. Start with Orb and Stick and later use them together with more advanced products like LumenRadio’s Aurora or Stardust.

Technical Specifications:

• Power supply DC: USB-C 5 VDC (power supply included)
• Dimensions (W x H x D): 99 x 97 x 43 [mm]
• Antenna connector: RP-SMA
• Frequency range: 2402 – 2480 MHz (ISM band)
• Max. RF output power: 35 mW
• Supported protocols: DMX-512A
• Supported RF protocols (RX): CRMX, CRMX2 , W-DMX G3, G4, G4S & G5
