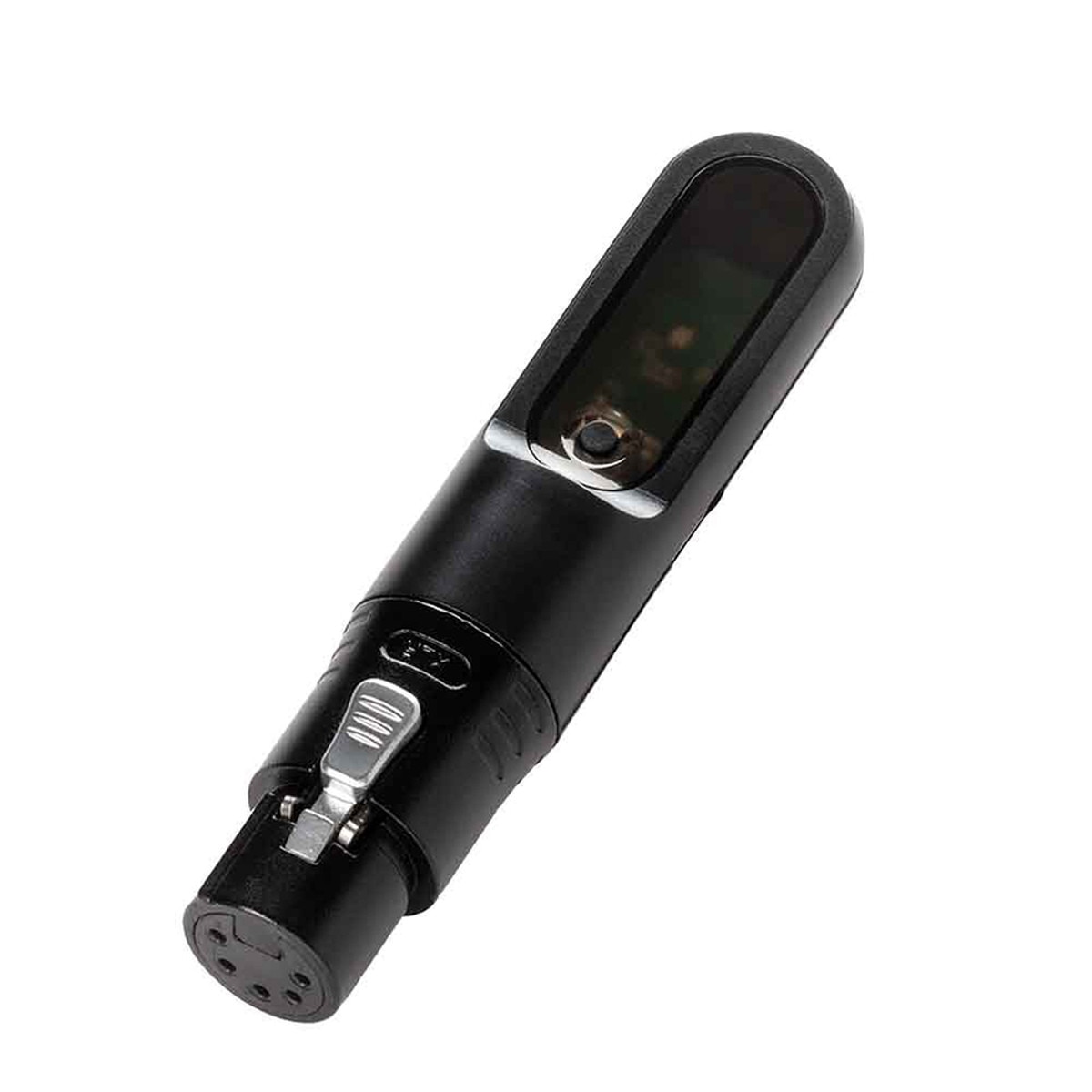

W-DMX Stick RX - Wireless DMX Plug-in Receiver
Details
At A Glance:
- Handy, hassle-free plug-and-play tech
- W-DMX Stick RX works as a receiver together with the Orb transmitter giving you wireless DMX lighting control by simply plugging into each fixture.
Details:
Light it up like a pro!
Stick gives you cable-free control over your lighting setup, so there are no more running cables from your controller to your fixtures. Simply plug it straight into each fixture where the DMX cable would have gone and use it as a receiver together with the Orb transmitter.
Handy and hassle-free plug-and-play technology.
Experience Wireless DMX:
Stick uses W-DMX technology – an incredibly reliable wireless alternative to the DMX cable.
It is also completely compatible with other W-DMX and LumenRadio CRMX products, so as your business grows, you don’t have to replace everything all at once. Start with Orb and Stick and later use them together with more advanced products like LumenRadio’s Aurora or Stardust.
Technical Specifications:
- Power supply DC: USB-C 5 VDC (not included)
- Dimensions (W x H x D): 21 x 23 x 98 [mm]
- Antenna: Built-in
- Frequency range: 2402 – 2480 MHz (ISM band)
- Max. RF output power: 10 mW
- Supported protocols: DMX-512A
- RF protocols (RX): CRMX/CRMX(2) & W-DMX G3/G4/G4S/G5
W-DMX LR830-3003 Spec Sheet.pdf
W-DMX LR830-3003 Quick Start Guide.pdf
