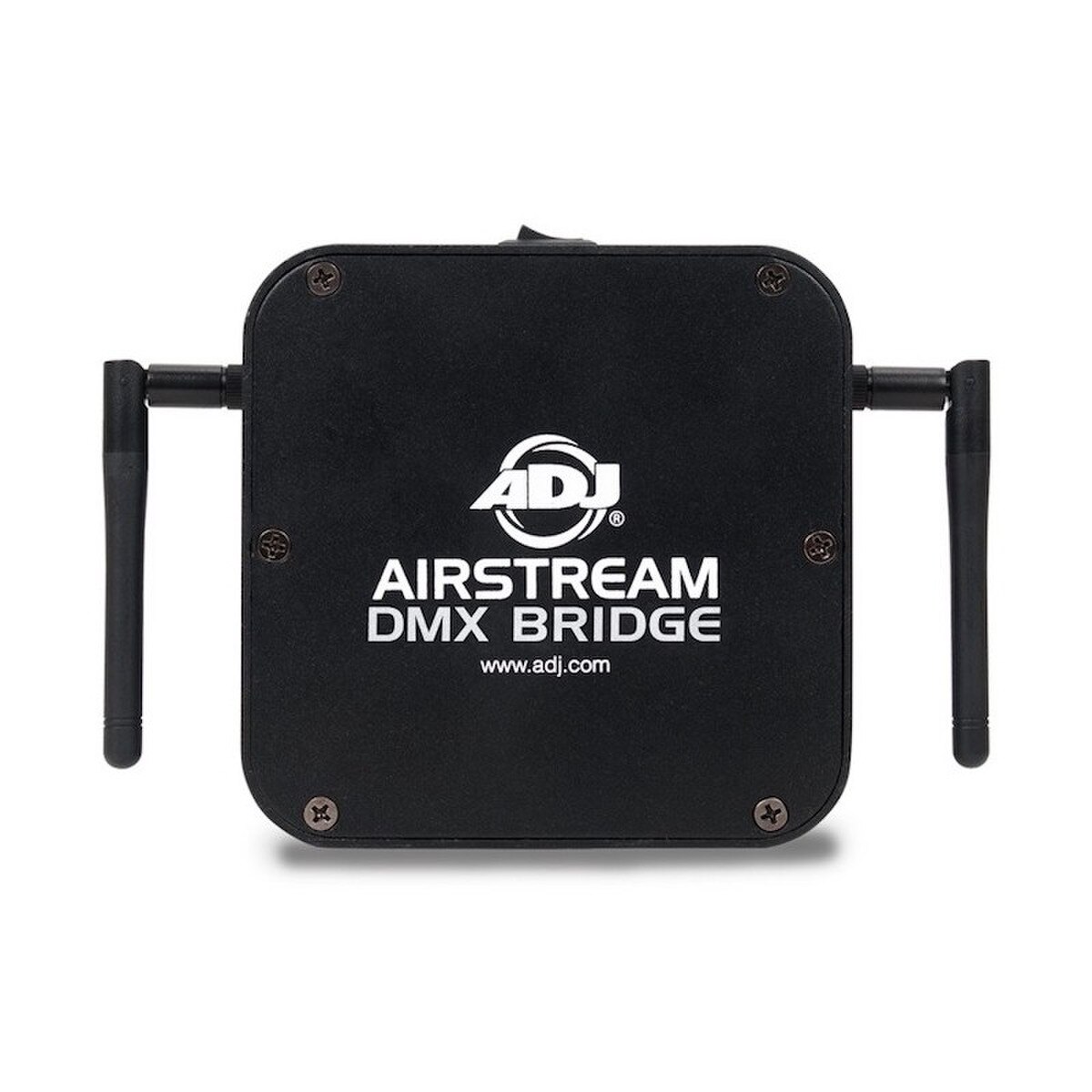

ADJ Airstream DMX Bridge

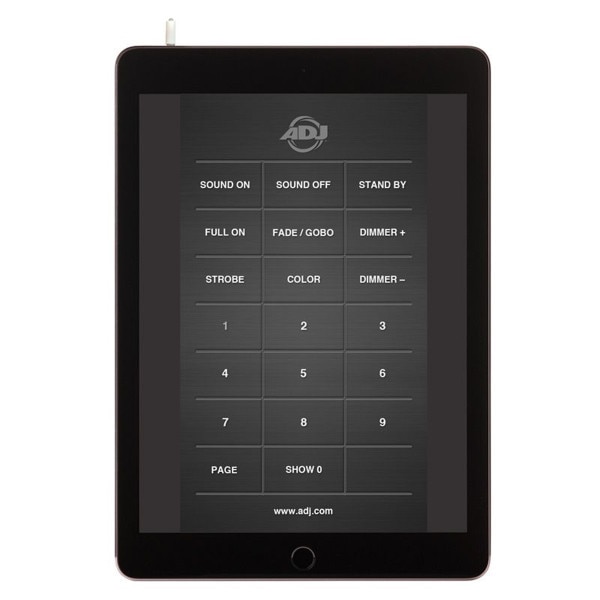

The ADJ Airstream DMX Bridge is a powerful DMX control software for iOS mobile devices (iPad and iPhone) that may be downloaded from the App Store. The hardware creates a wireless WIFI DMX network to control DMX lighting fixtures. It is compatible with ADJ WiFLY and Elation Professional E-FLY products. Users may also control non-WiFLY products from the unit’s 3-pin DMX output. Airstream DMX Bridge features ADJ’s 2,500 foot “EXR” extended range wireless DMX transceiver.
- Creates a wireless DMX network to control DMX lighting fixtures using Airstream DMX App for iOS devices
- Compatible with all ADJ WiFLY and Elation Efly products
- Control non-WiFLY products throughout the 3-pin XLR Out connection
- Airstream DMX App available in the App Store
- WiFLY wireless signal indicator on side panel
- Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects
- Quick lock bracket included
- Up to 2500 wireless feet (open line of sight) when using other “EXR Extended Range” WiFLY products
- One transmitter can send to many receivers using the same radio channel
- Receivers automatically listen for transmitters (no pairing required)
- 14 WiFLY Channels
- 3-pin DMX Out
- Wireless Frequency: 2.4 GHz DSSS
- Power Supply: DC 9-12V
- Dimensions (LxWxH): 5”x7”x2.5”/125x175x62mm
- Weight: 1 lbs./0.5 kg.
- Compatibility: Requires iOS 8.4 or later. Compatible with iPhone, iPad and iPod Touch.
DMX BRIDGE USER MANUAL
