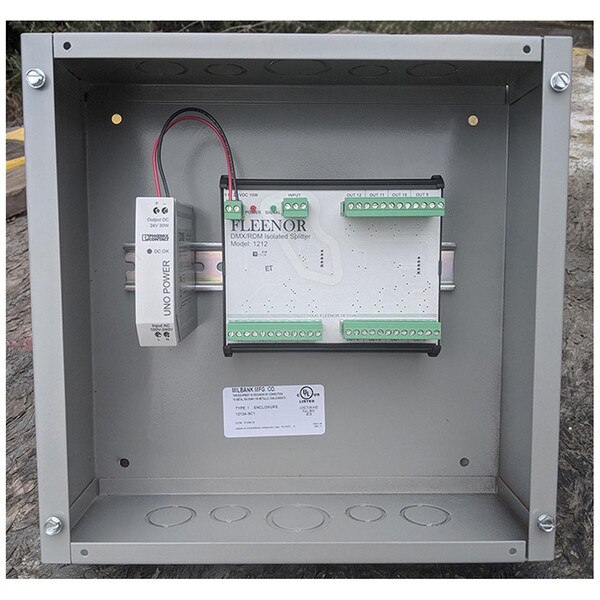

Doug Fleenor Bi-Directional DMX512/RDM Isolated Splitter - DIN Rail Mounted in Junction Box - 12 Output 1 Input

The 1212-DIN is a bi-directional DMX512/RDM isolated splitter with a fully isolated input. The twelve outputs are separately driven, but are not isolated from one another.

Specifications:

• Input circuit: Protected EIA-485 receiver (LT1785)
• Input protection: Undamaged by up to 60 Volts continuous, 15KV transients
• Input signal: DMX512, DMX512/1990, DMX512-A, or RDM
• Signal connectors: Pluggable Phoenix terminal blocks: three 12-position for the outputs, one 3-position for the input
• Termination: Input and all outputs are terminated per RDM specifications
• Power input: 9-24 VDC, 10W, 2-position pluggable Phoenix terminal block
• Indicators: Red POWER LED lights when unit is powered on Green SIGNAL LED lights when DMX512 or RDM is present
• Cooling: Convection cooling, no fan required
• Isolation: DMX512/RDM input is optically isolated to 1,500 Volts.
• Color: Black DIN rail tray with white circuit board
• Size and weight: 1212-DIN: 2"H × 4.25"D × 6"W, 10 ounces
• 1212-DIN-JBOX: 12”H × 4”D × 12”W, 3 pounds
• 1212-DIN-JBOX-PS: 12”H × 4”D × 12”W, 3 pounds
• Environmental: 0-40 °C (32-104 °F), 10-90% humidity, non-condensing
• Mounting: DIN rail or junction box
