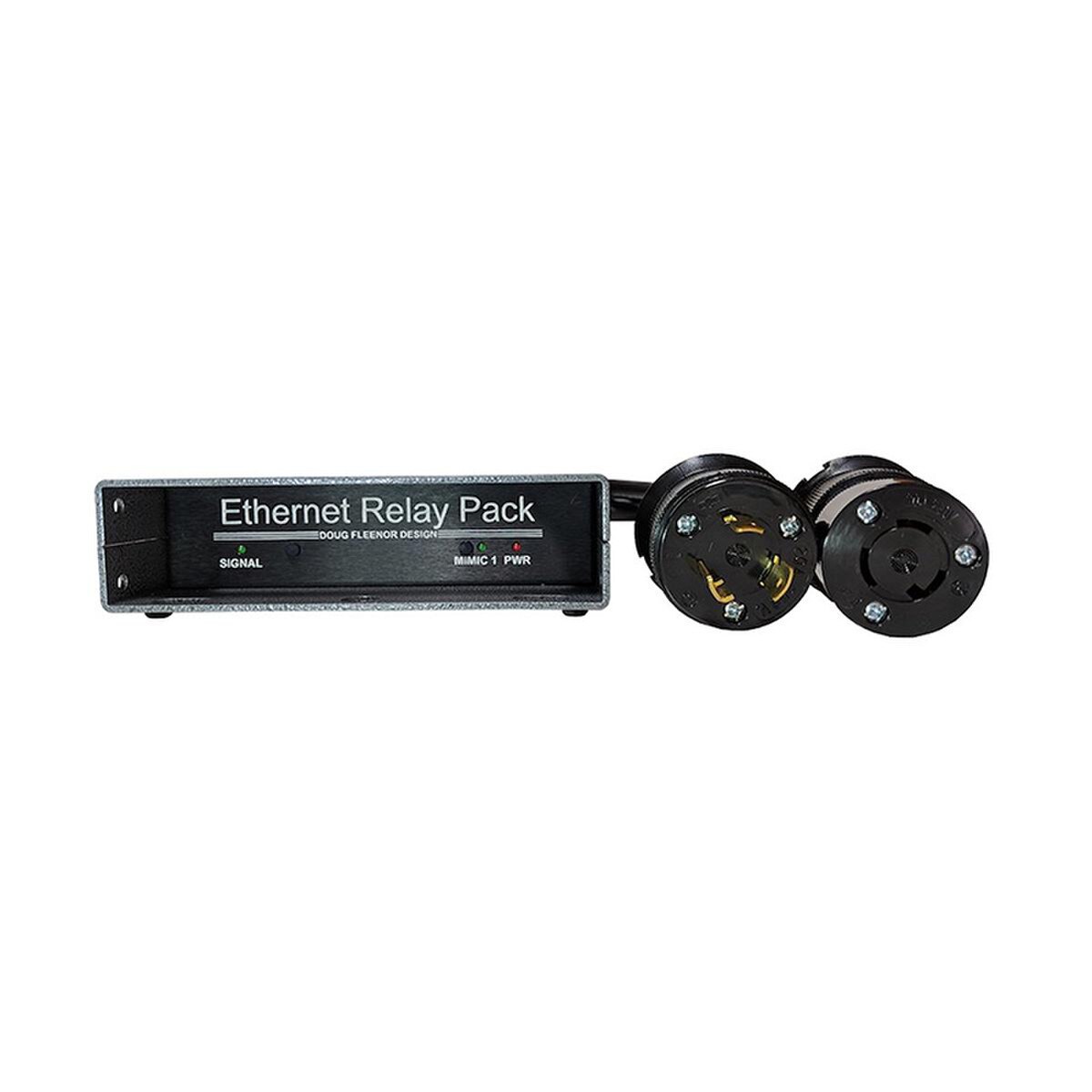

Doug Fleenor Ethernet Control Relay Pack - 240VAC Input and Output w/ 1 Channel - 20A 2 Pole in Junction Box

The E1REL20A-JBOX and E1REL20A-2POLE-JBOX use ArtNet and sACN (E1.31) Ethernet protocols for control of a relay. They can switch up to a 20 amp line voltage load and are built with a 30 amp relay for robust performance.

Specifications:

• Certification: ETL Listed to the UL 508 standard.
• Input signal: E1.31 sACN and ArtNet
• Input circuit: 100BASE-TX Fast Ethernet, Crossover Detection
• Input connector: Neutrik Ethercon
• Power input: 100 to 240 Volts, 50/60 hertz, 4 watts (plus load).
• Power wiring: 10mm Euro Strip UL 30a-450 Volt M3 Screw terminal block.
• Power output: Input power is switched to output.
• Output rating: 20 amps.
• Output device: Omron G8P.
• Mechanical life:
• 10,000,000 operations minimum.
• Electrical life:
• 250,000 operations minimum at 5 Amps.
• 125,000 operations minimum at 20 Amps.
• Environmental: 0-40° C (32-104° F), 10-90% humidity, non-condensing. Indoor use only.
• Color: Gray.
• Size and weight: 12"H × 4"D × 12"W, 8 pounds.
