  • Antari DarkFX Drive 4 Power Supply

Antari DarkFX Drive 4 Power Supply

(0)No Reviews yet
$419.00
SKU: Antari DFX-PD4

Add this item to get free shipping! (Motor Freight Excluded)

Details

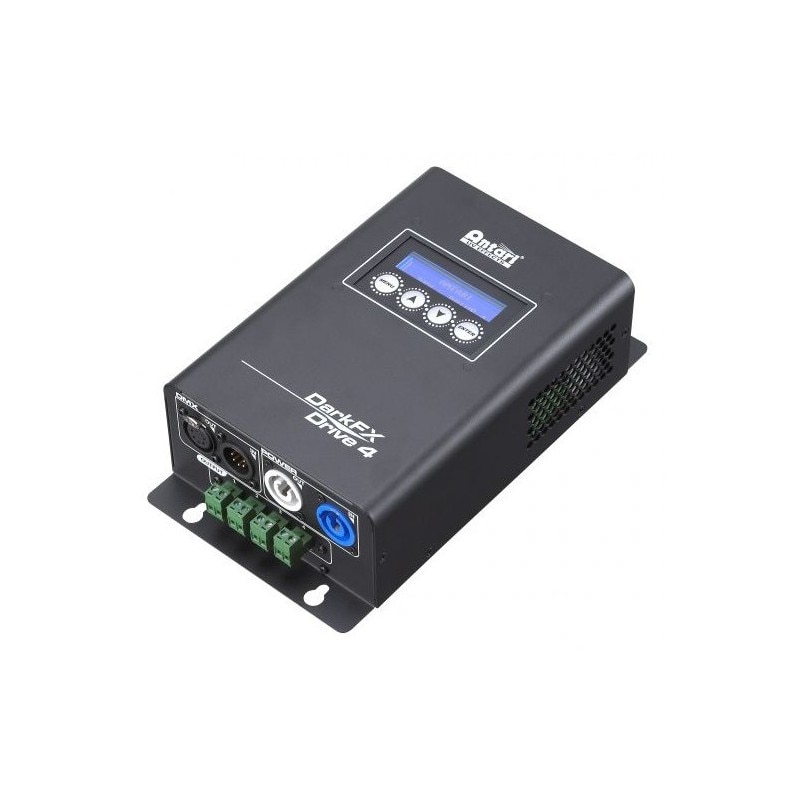

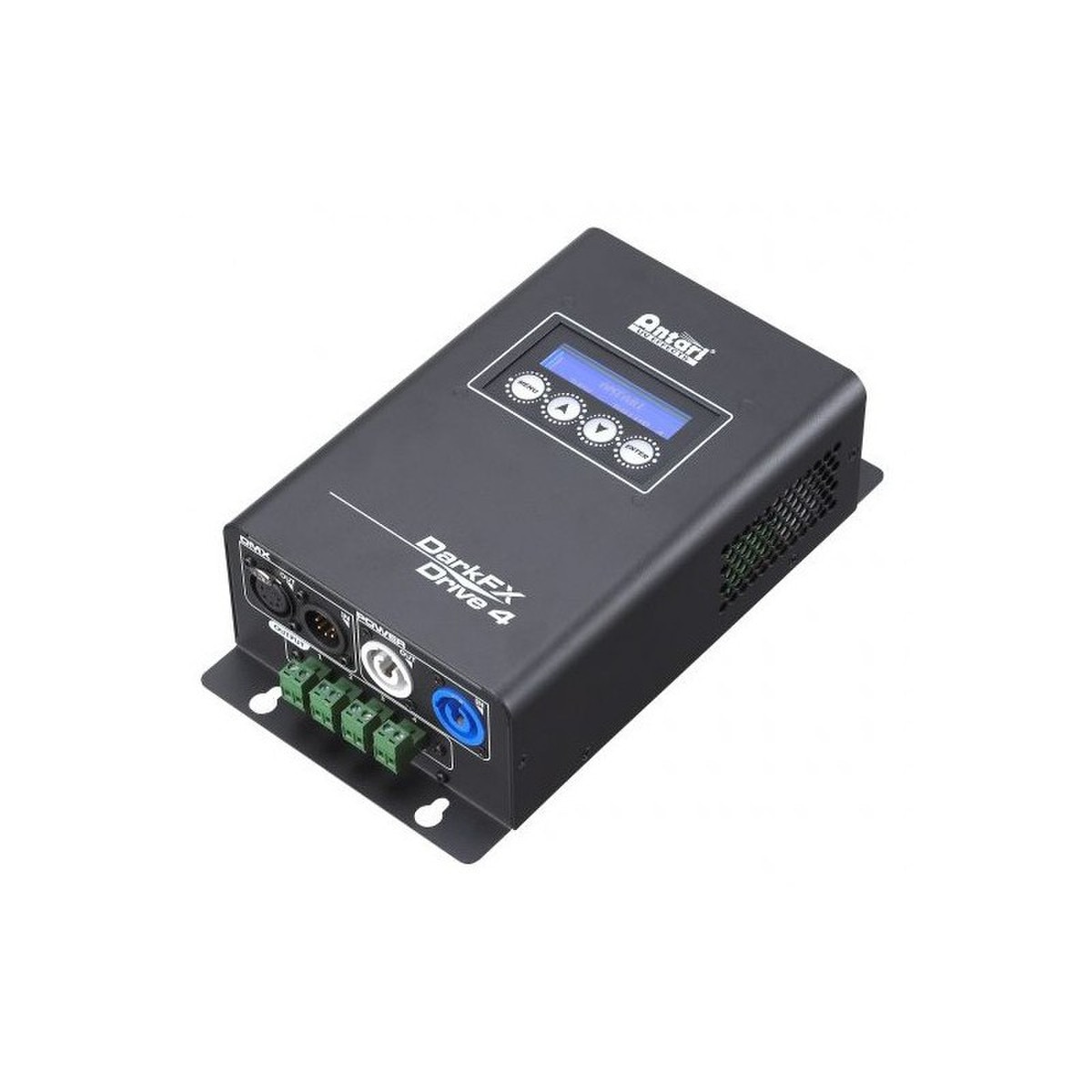

The Antari DarkFX Drive 4 is an IP20 rated compact driver exclusively designed for the Antari DarkFX Strip 510 and DarkFX Spot 510IP high-power UV fixtures. It features four bare-wire terminal blocks which can support up to four Antari DarkFX fixtures, two DMX channels, dimmer, linear dimming curve, and strobe effects, a four button 2 x 16 digit control display, 5-pin DMX and powerCON in/out connections, a metal housing, and a multi-voltage universal auto switching power supply (100-240V 50-60Hz).

Features:

  • 2 Channel DMX Control for DarkFX Strip 510 and DarkFX Spot 510IP
  • 0-20Hz Strobe Effect
  • Variable Dimming Curve Modes

Specifications:

  • Control/Connections:
    • (2) DMX Channel Modes (1 / 2)
    • 4 Button 16 Digit Control Display
    • 5-pin DMX In/Out
    • PowerCON Power In/Out
  • Physical:
    • Dimensions (L x W x H): 8.5 x 5.3 x 2.9" (216 x 135 x 72.4mm)
    • Dry Weight: 3.6 lbs (1.62kg)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 500 Hz Refresh Rate
    • Maximum Power Consumption: 58W @110V / 65W @220V
  • Approvals/Ratings:
    • CE, IP20
