Antari DarkFX 510 IP Outdoor Rated UV Spot Fixture

(0)No Reviews yet
$389.00
SKU: Antari DFX-IPS510

Add this item to get free shipping! (Motor Freight Excluded)

Details

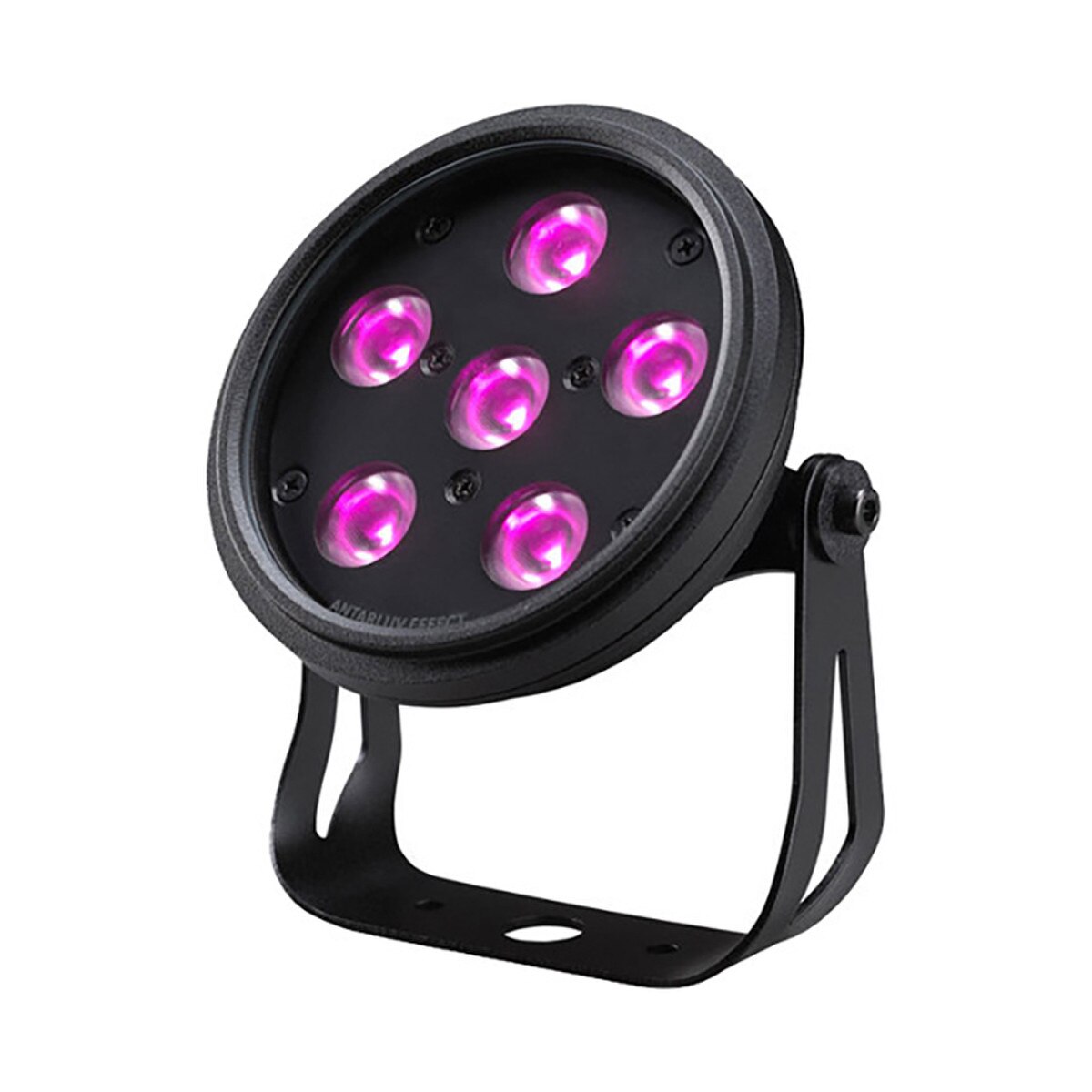

The Antari DarkFX Spot 510IP is an IP65 rated efficient high-output, low-power consumption UV LED spot. It delivers a peak wavelength of 365nm and radiant flux output of 4500mW at full intensity with minimum visible light. Featuring, (6) 1.9W high power UV LEDs, a 15 degrees narrow beam angle, special optics to prevent wear degradation from high UV exposure, flicker free operation for TV and film, a die-cast aluminum housing, this fiture is perfect for a wide variety of UV needs. It also comes with a 22AWG power/data bare wire end pigtail cable attached on the back. The Antari DarkFX Drive 4 fixture driver (sold separately) is required for power and DMX control.

Features:

  • IP65 rated high-efficiency UV LED spot
  • 15 degrees narrow beam angle

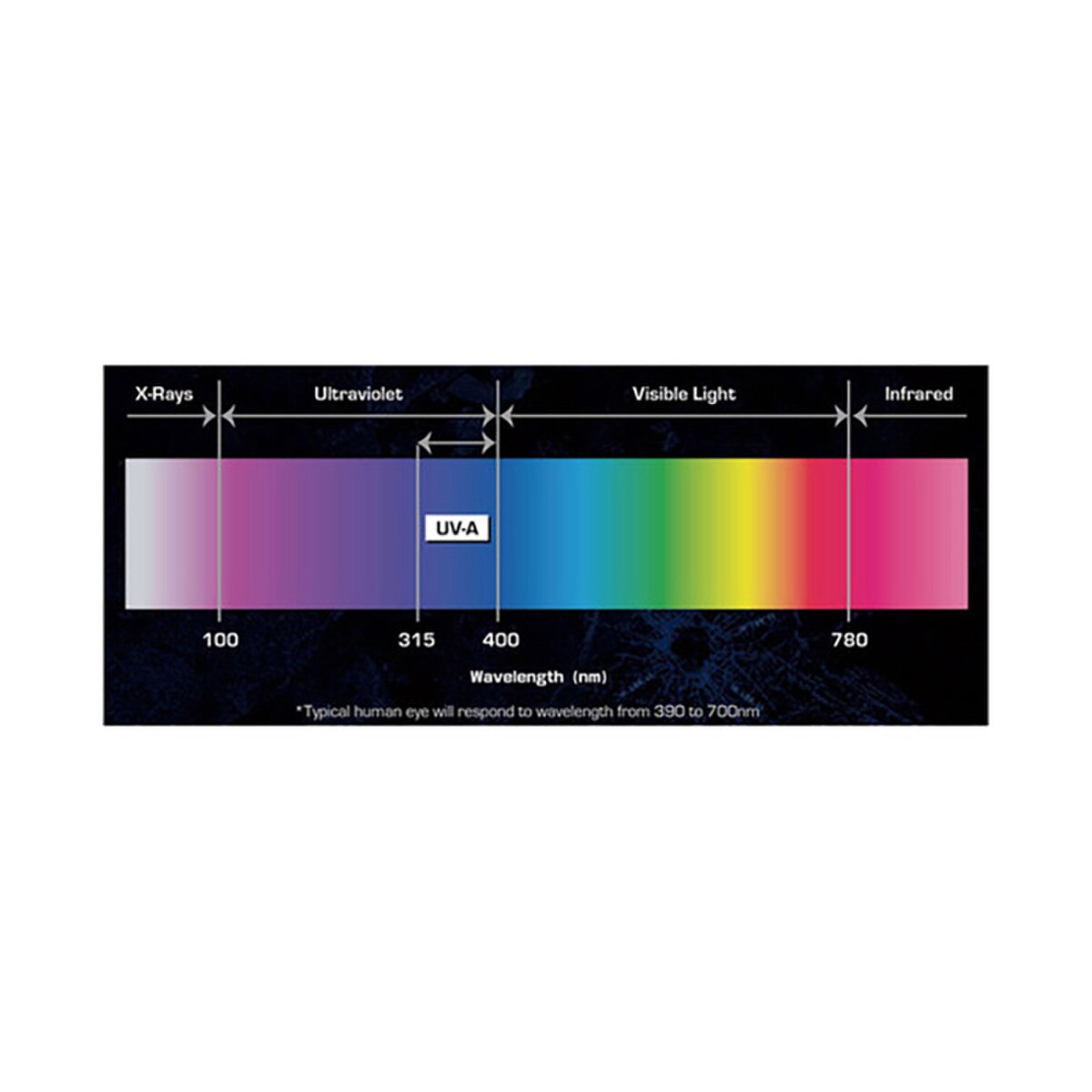

  • Peak wavelength at 365nm
  • Minimal visible light
  • High output 4500mW at full intensity
  • Special optics to prevent wear degradation from high UV exposure
  • Flicker free operation for TV and film

Specifications:

  • Source:
    • (6) 1.9W high-power UV LEDs
    • Average LED Life: 20,000 hrs*
  • Photometric Data:
    • Optics: 15 degrees
    • Peak Wavelength: 365nm
    • Radiant Flux Output: 4500mW
  • Control/Connections:
    • DarkFX Drive 4 power/DMX fixture driver (sold separately)

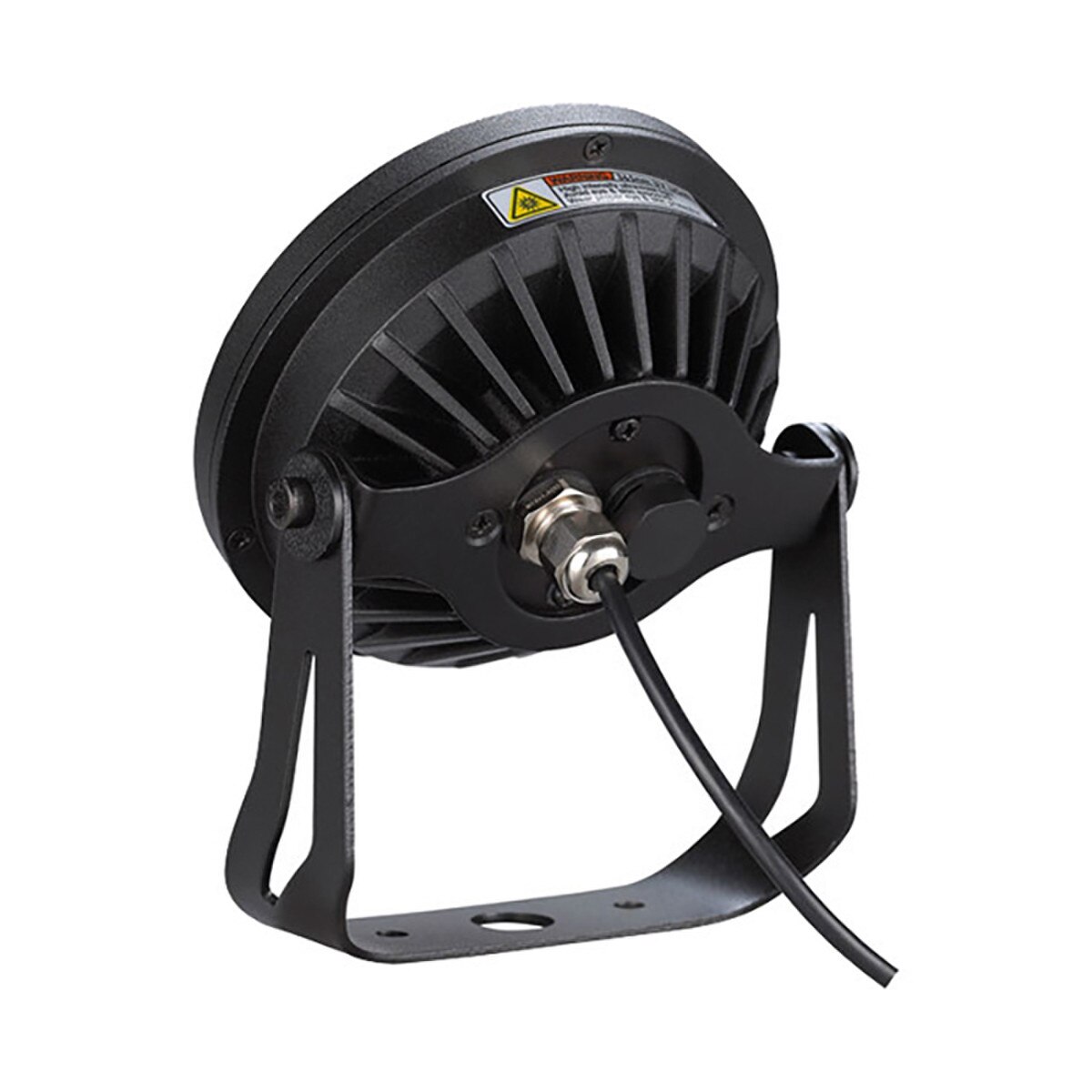

    • Cable Connection: 22 AWG bare-wire cable
  • Physical:
    • Dimensions (L x W x H): 4.4" x 1.96" x 5.3" (110.5mm x 49.8mm x 134.25mm)
    • Dry Weight: 0.71 lbs (1.6kg)
  • Electrical/Thermal:
    • DC 20-24V
    • Maximum Power Consumption: 12W
  • Approvals/Ratings:
    • CE, IP65

*LED Life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (On-Off cycling), control, and dimming.
