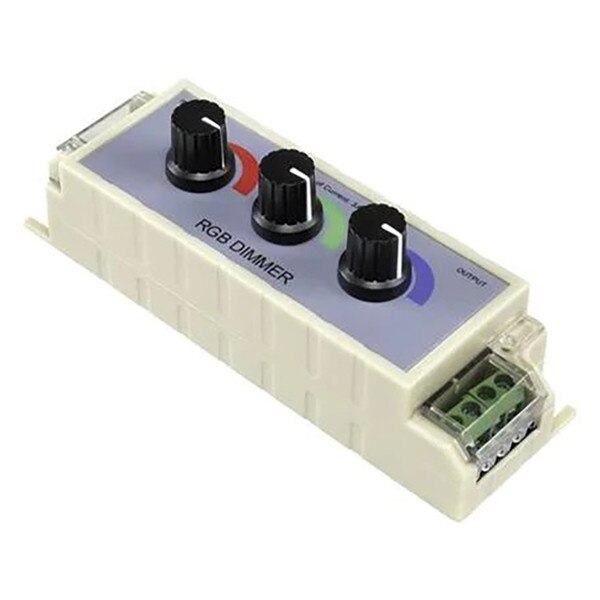

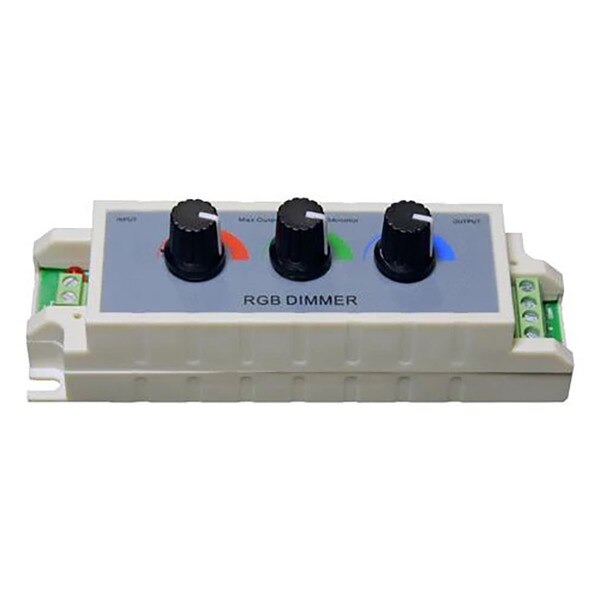

Blizzard Komply Knob3 3 Channel RGB LED Dimmer

At A Glance:

• Stepless 3-channel RGB dimming
• Infinitely adjustable brightness
• Endless RGB color combinations

Stepless RGB Dimming:

This compact unit provides the ability to independently control the intensity levels of the red, green, and blue channels of our RGB LED strips, to manually adjust the desired color and brightness.

This is done by means of three rotary knobs located on the top of the housing. Maximum load is 3 amps per channel, 9 amps total.

Overview:

• Working temp: -20-60 °C
• Simple and inexpensive control of RGB LED strips
• 100% secure connections
• Easy installation

Power:

• Max load current: 3A per channel
• 3-channel output
• Power input: DC12V (only)

Warranty:

• 2-year limited warranty

Dimensions & Weight:

• 5.1" L x 1.5" W x 2" H
• 0.25 lbs
