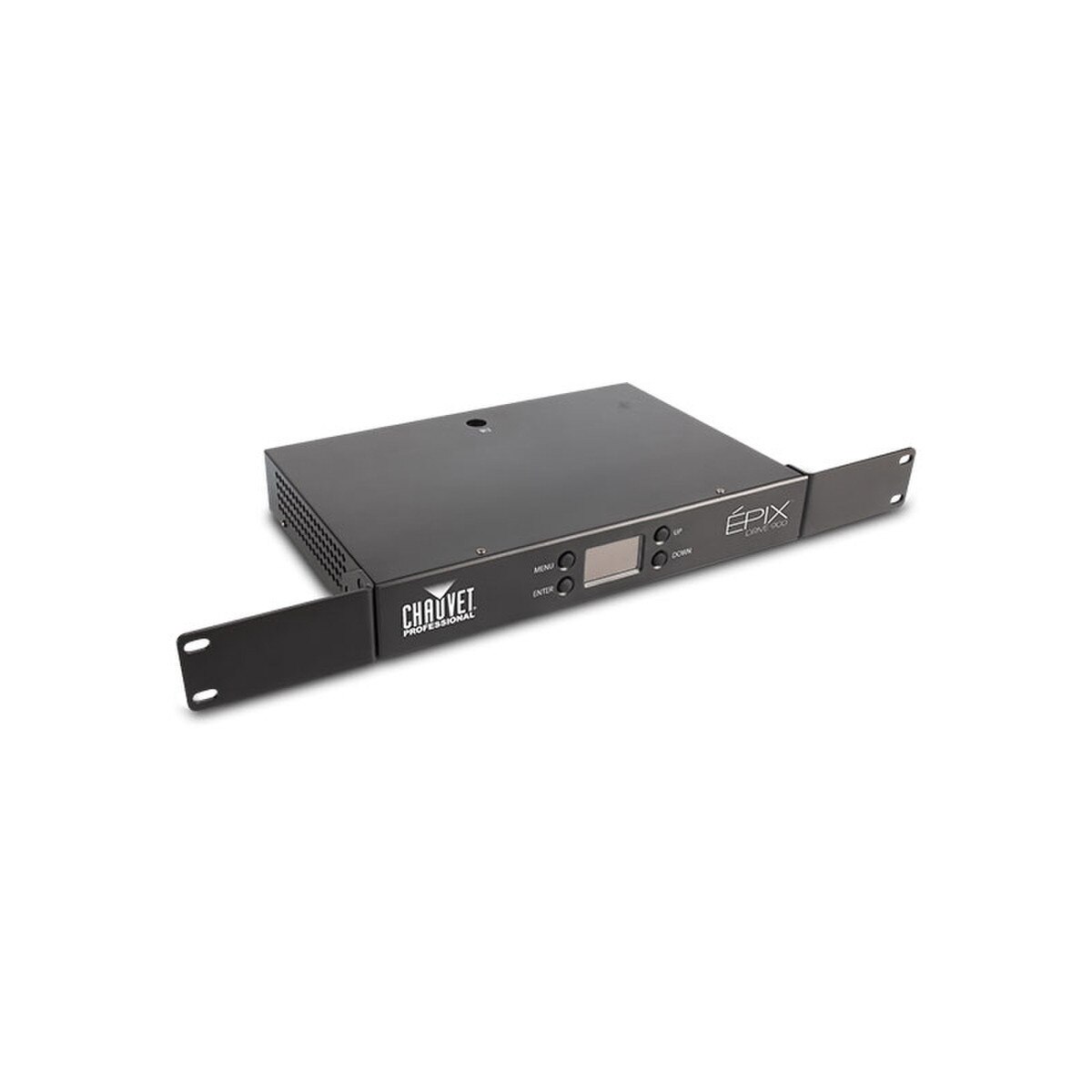

Chauvet Professional EPIX Drive 900

1Review
$670.00
SKU: Chauvet Professional EPIXDRIVE900

Details

Chauvet Professional EPIXDRIVE900 Épix Drive 900 hosts the processing and power supply for the Épix Tour system. It supports either 18 Épix Strip Tours or 6 Épix Bar Tours, or any combination of the two, with a total capacity of 900 LEDs. Épix Drive 900 supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the Épix lights.

Features:

  • The processing and power center of the Epix Tour system will drive any combination of Epix Tour products, up to 900 LEDs
  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
  • Quickly and easily configure the Epix Drive 900 using the built-in OLED display
  • Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
  • Supports up to 18 Epix Strip Tours or 6 Epix Bar Tours
  • Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable
  • Advanced power management design allows you to position the Drive 900 up to 65' away from your last fixture (using shielded cable)
  • Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate

Specifications:

Construction / Physical:

  • Dimensions (with rack ears): 19.02" x 7.60" x 1.97" (483 x 193 x 50 mm)
  • Dimensions (without rack ears): 11.14" x 7.60" x 1.97" (283 x 193 x 50 mm)
  • Weight: 5.42 lbs (2.46 kg)
  • Weight (shipping weight): 7.72 lbs (3.5 kg)
  • Threaded Bolt: M12
  • Exterior Color: Black
  • Housing Material: Steel
  • Rackmount: 1U

Connections:

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Device Outputs (4-pin XLR): 1
  • Physical Linking: 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
  • Data Connectors: Neutrik etherCON
  • Cable Length (power): 5' (1.5 m)
  • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
  • Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210' (64 m)
  • Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65' (20 m)
  • Max. cable length (shielded cables) between Epix Tour fixtures: 60' (18 m)
  • Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300' (91 m)
  • Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150' (45 m)
  • Max. cable length (unshielded cables) between Epix Tour fixtures: 100' (30 m)

Control:

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels: 6 Art-Net/sACN Universes
  • Electrical:
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 120V; 11 units @ 208V; 12 units @ 230V
  • Power and Current: 299W, 2.53A @ 120V, 60 Hz
  • Power and Current: 299W, 1.44A @ 208V, 60 Hz
  • Power and Current: 299W, 1.31A @ 230V, 50 Hz
  • Power and Current (resting): 23W, 0.195A @ 120V, 60 Hz
  • Power and Current (resting): 32W, 0.156A @ 208V, 60 Hz
  • Power and Current (resting): 32W, 0.133A @ 230V, 50 Hz
  • Maximum Load: 18 EPIX Strip Tour or 6 EPIX Bar Tour (per output)

Cables:

  • 4PXLREXT16IN
  • 4PXLREXT5FT
  • 4PXLREXT50FT

Certifications / Qualifications:

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4°F to 113°F (-20°C to 45°C)

What's Included:

  • Épix Drive 900
  • Neutrik powerCON power cord
  • Rack ears (2)
  • Bag of rack ear mounting screws
  • Rubber feet (4)

Optional Accessories:

  • ArKaos Media Master Express + KN software
  • Clamps
  • Neutrik powerCON cables
  • Neutrik etherCON cables
  • 4-pin XLR cables
  • Required Accessories:
  • ÉPIX Drive 900

Quick_Reference_Guide_96257_File_1.pdf
