Chauvet Professional EPIX Strip Tour

Chauvet Professional EPIX Strip Tour

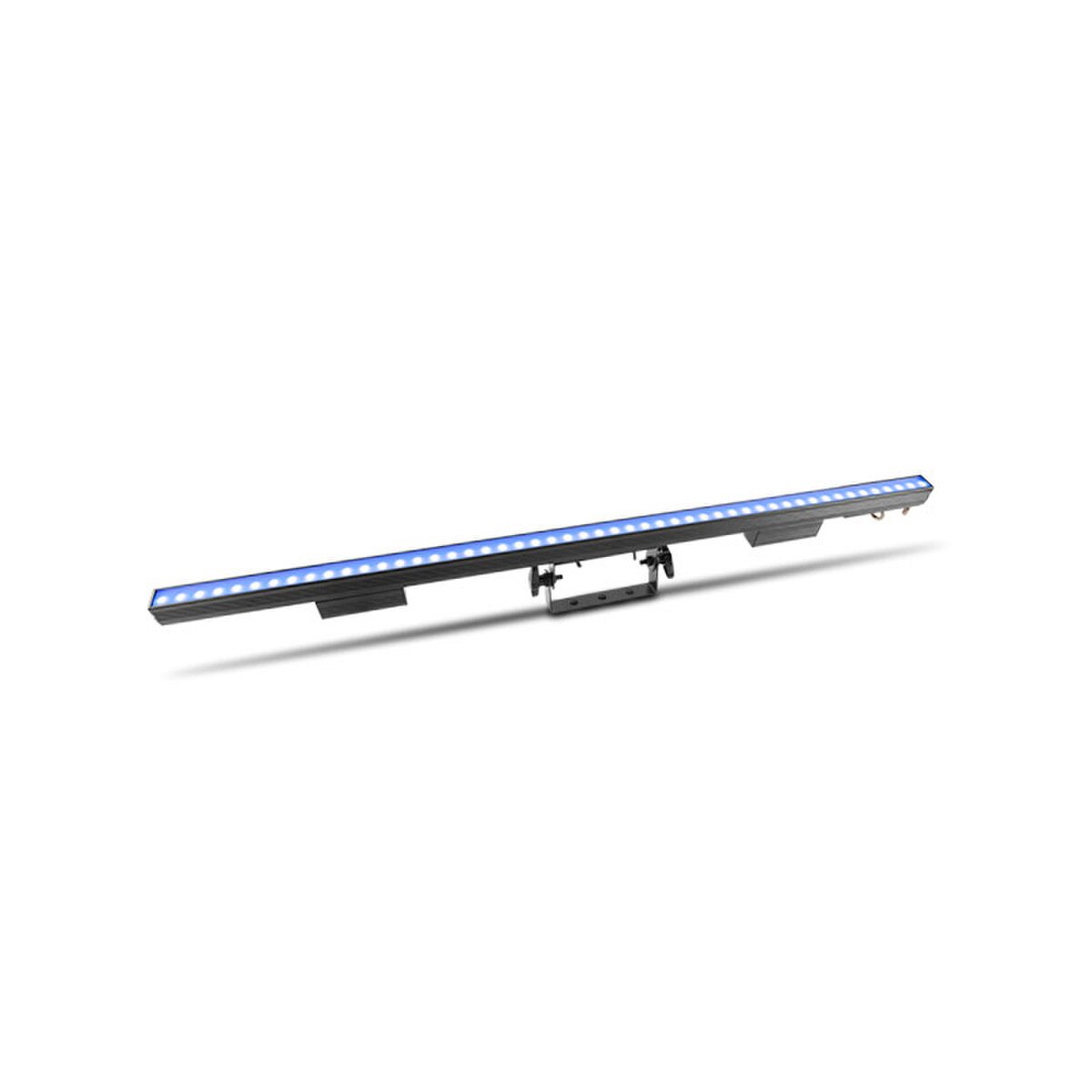

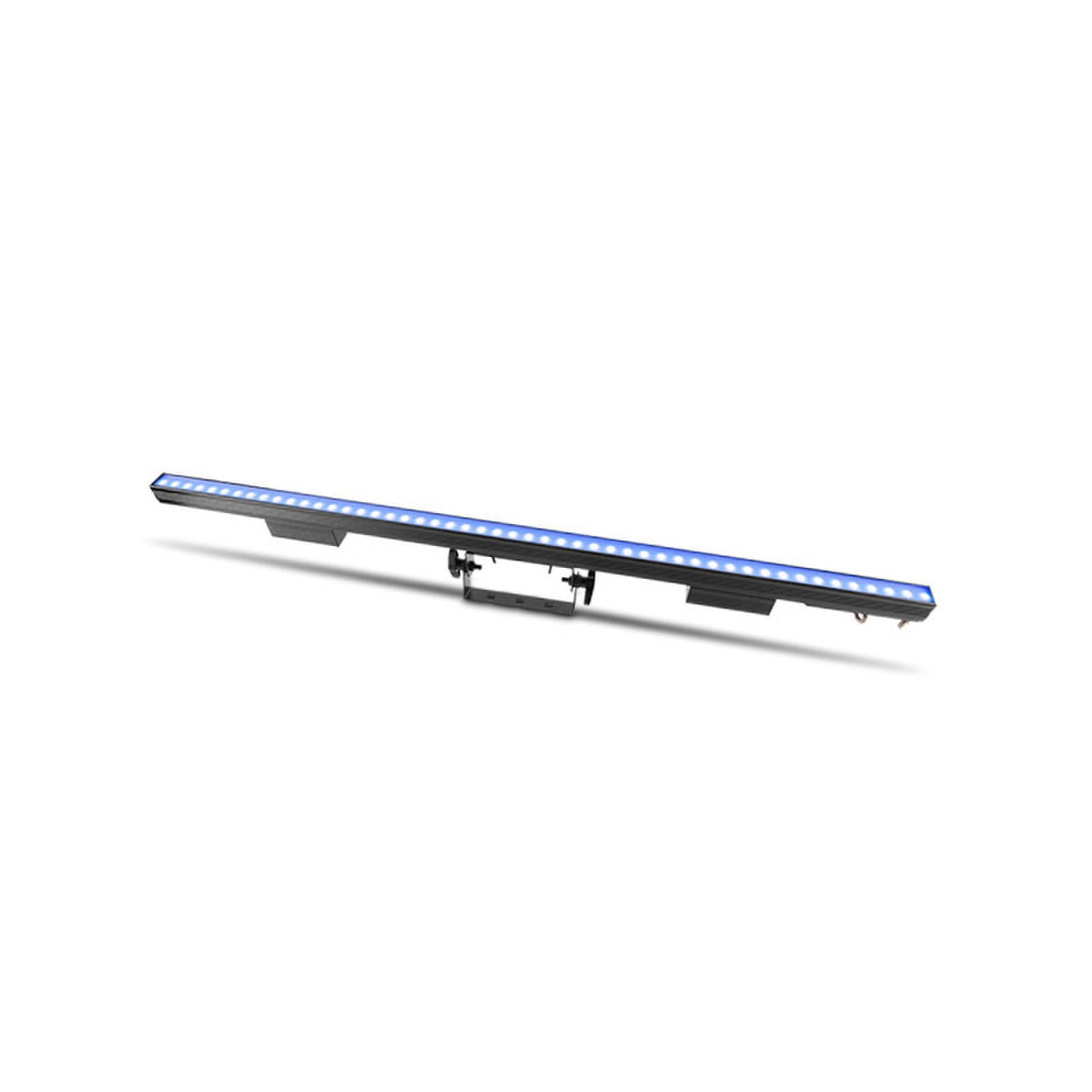

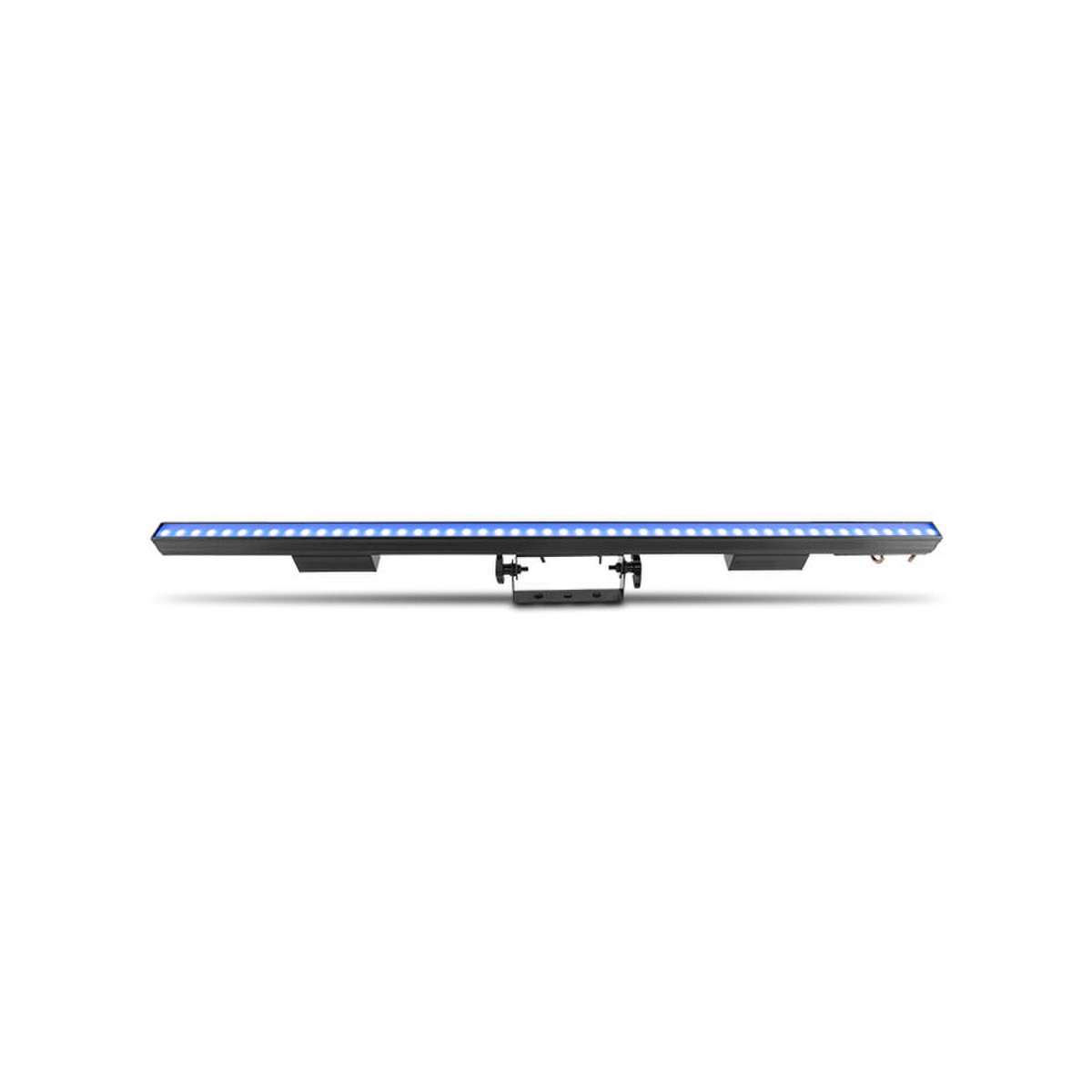

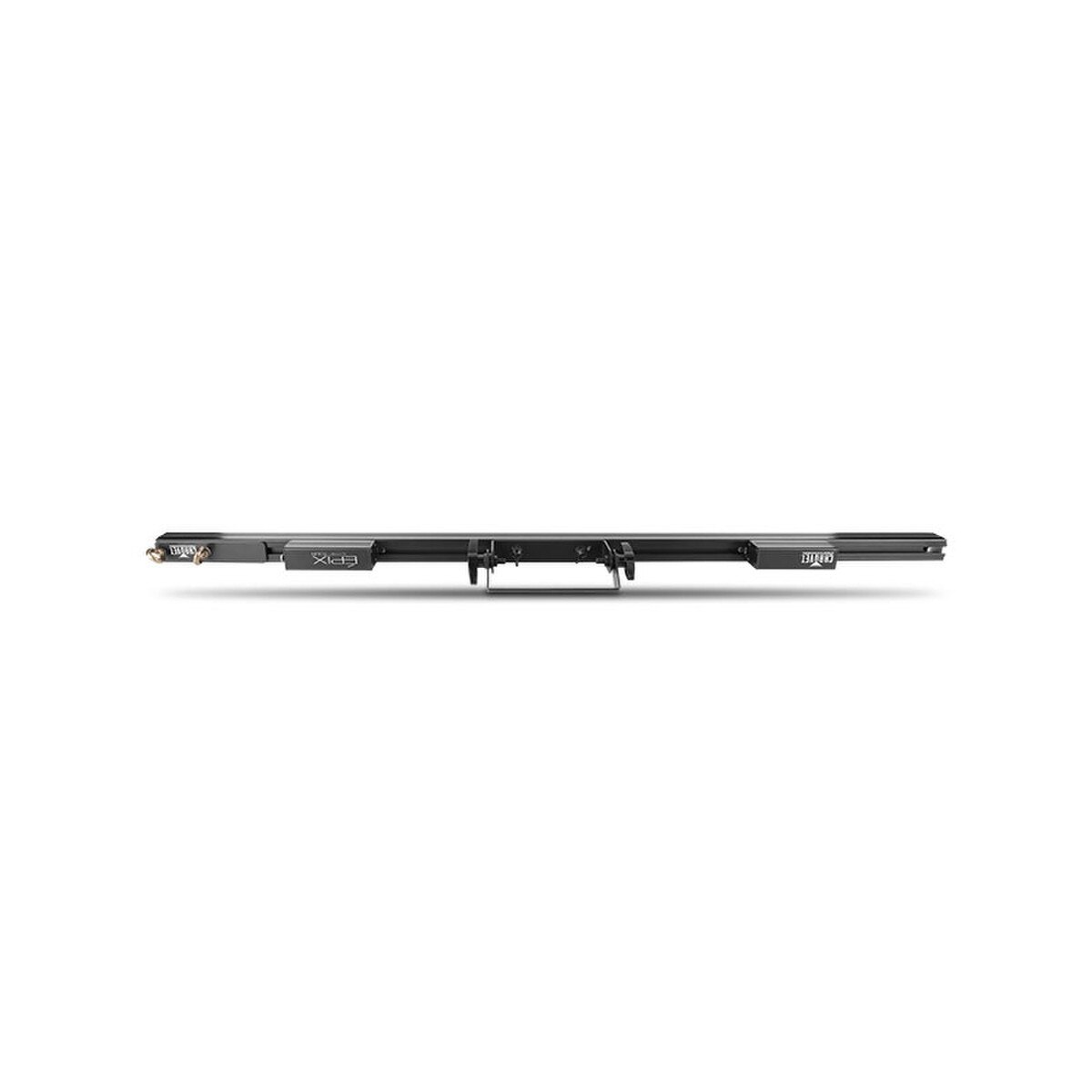

Épix Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125° viewing angle. Power and control it through the Épix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN). For added versatility and more creative options, a dome accessory is available to widen the viewing angle to up to 180°.

Features:

• Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics
• Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
• Increase viewing angle by using the optional dome accessory - see related items below
• ÉPIX Drive 900 required for operation

Specifications:

Optical:

• Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle: 125°
• Viewing Angle (with optional dome accessory): 180°
• Illuminance (white frost filter installed): 1,094 NITS
• Illuminance (with optional dome accessory): 701 NITS
• Illuminance (black stealth filter installed): 267 NITS
• Pixels: 50 x 1
• Pixel Pitch: 20 mm
• Refresh Rate: 4,700 Hz

Construction / Physical:

• Dimensions: 39.37" x 4.72" x 1.18" (1000 x 120 x 30 mm)
• Dimensions (with optional dome accessory): 39.37" x 5.31" x 1.18" (1000 x 135 x 30 mm)
• Weight: 3.44 lb (1.56 kg)
• Weight (with optional dome accessory): 3.51 lbs (1.59 kg)
• Exterior Color: Black
• Housing Material: Aluminum

Connections:

• Data Connectors: 4-pin XLR
• Physical Linking: 18 inline Epix Strip Tour
• Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
• Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210' (64 m)
• Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65' (20 m)
• Max. cable length (shielded cables) between Epix Tour fixtures: 60' (18 m)
• Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300' (91 m)
• Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150' (45 m)
• Max. cable length (unshielded cables) between Epix Tour fixtures: 100' (30 m)

Control:

• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels: 150

Electrical:

• Power and Current: 17W, 0.14A @ 120V, 60 Hz
• Power and Current: 17W, 0.08A @ 208V, 60 Hz
• Power and Current: 17W, 0.07A @ 230V, 50 Hz

Cables:

• 4PXLREXT16IN
• 4PXLREXT5FT
• 4PXLREXT50FT

Certifications / Qualifications:

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4°F to 113°F (-20°C to 45°C)

What's Included:

• ÉPIX Strip Tour
• White Frost Filter

Optional Accessories:

• ArKaos Media Master Express + KN software
• Clamps
• Dome accessory
• 4-pin XLR cables
• Required Accessories:
• ÉPIX Drive 900
• VIP Driver
