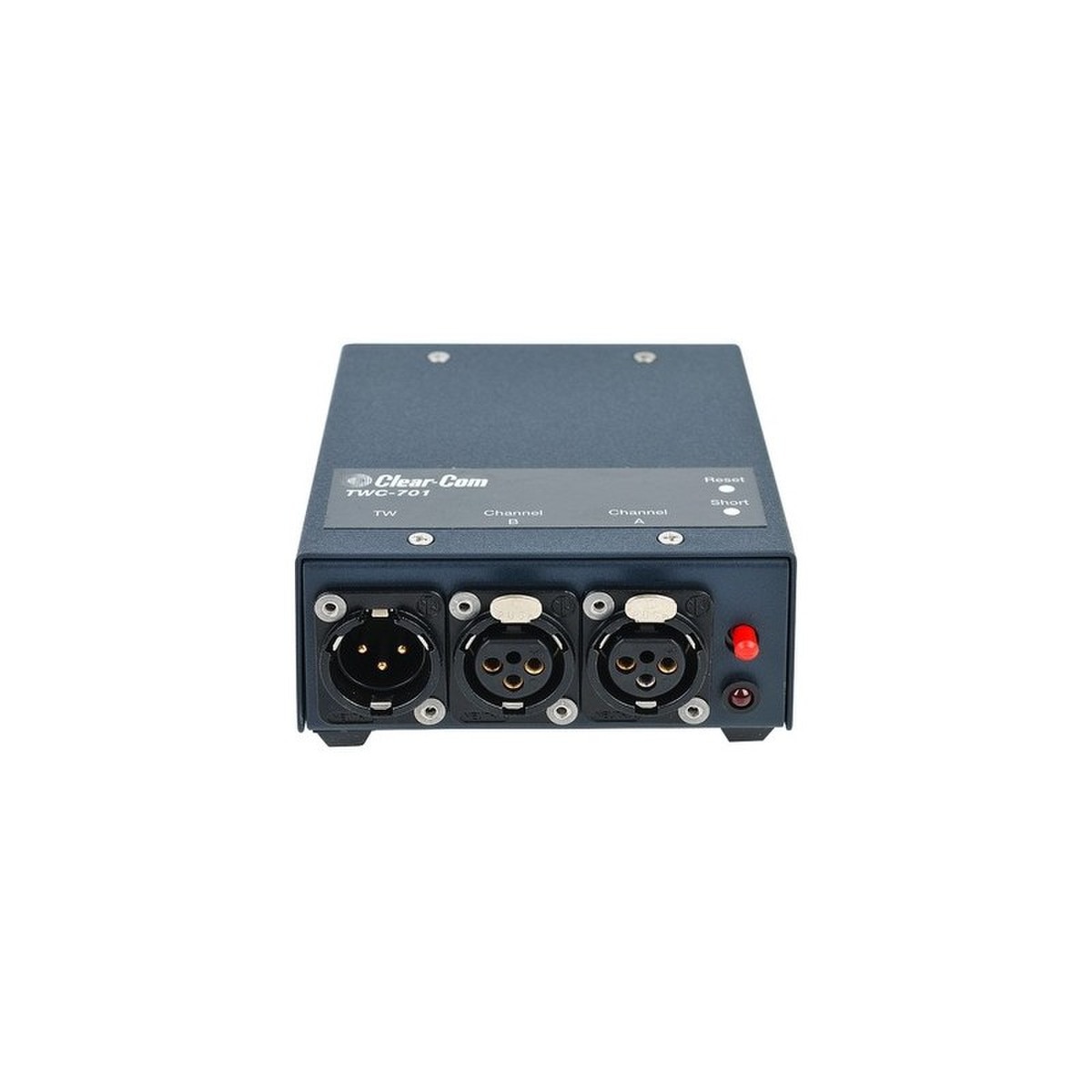

Clear Com 2-Channel Cable Adapter

This 2-Channel, 3-Pin XLR Cable Adapter combines two intercom channels on a single 3-pin cable for beltpacks with the TW option. REQUIRED item for RS-703 to connect belt packs to the main station.

Technical Specifications:

• Rear Panel Connectors:
  • Intercom in (2) XLR3F
  • TW (1) XLR3M
• Rear Panel Controls & Indicators:
  • (1) Reset switch
  • (1) Overload LED
• Power Requirements:
  • Input Voltage: 20-30 VDC
  • Input Current: (idle) <= 30mA
  • Current Trip: 1.6A
• Environmental: 32˚ to 122˚ F (0˚ to 50˚C)
• Dimensions: 4 in. W x 2.0 in. H x 5.0 in. D (101mm x 51mm x 127 mm)
• Weight: 1.1 lbs. (0.503 kg)
