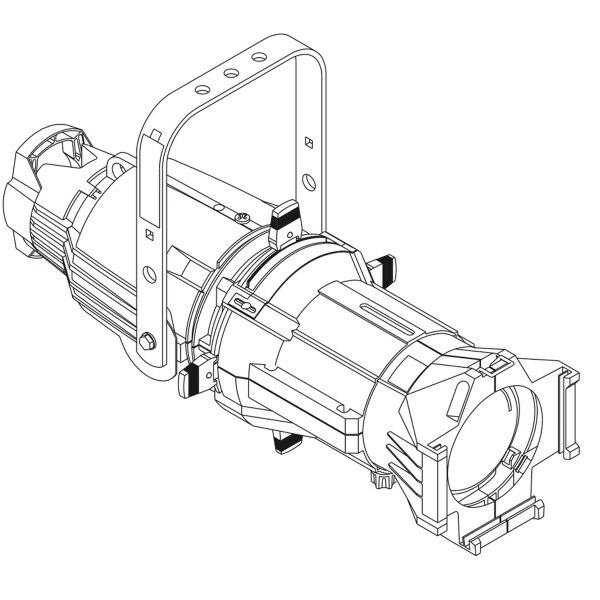

ETC Source Four Ellipsoidal 19 Degree - GSP (stage pin) installed - White (419-1B)
Details
We are not an authorized ETC dealer. Please contact manufacturer for warranty information.
ETC Source Four White Ellipsoidal 19° - Stage Pin Connector Installed (419-1B)
The fixture that changed the lighting industry.
Source Four combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses, for the coolest beam on the market. That means your gels, patterns and shutters last longer and your performance space stays cooler.
No other light offers such optical brilliance. Source Four's revolutionary technology gives you a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. The EDLT lens tube option for 19º, 26º, 36º and 50º field angles makes the Source Four even better for ultra-crisp, high-contrast pattern projections.
Rated for up to 750 watts, the Source Four is perfect for punching through saturated colours and performing the longest throws. Ultra-efficient for more lumens per watt: at 575 watts the Source Four literally outshines 1000W ellipsoidals. And at 750 watts, well, no point comparing - there are no other luminaires in its class.
Product Accessories:
- Stage Pin Connector Installed
- C-Clamp - included
- 6.25" Color Frame - included
- A-size gobos and gobo holders
- B-size gobos and gobo holders
- HPL Lamps

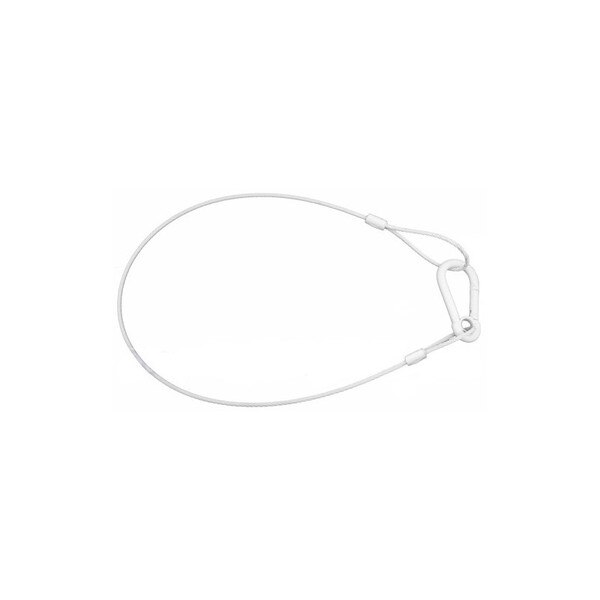

- Safety Cable
- Drop-In Iris

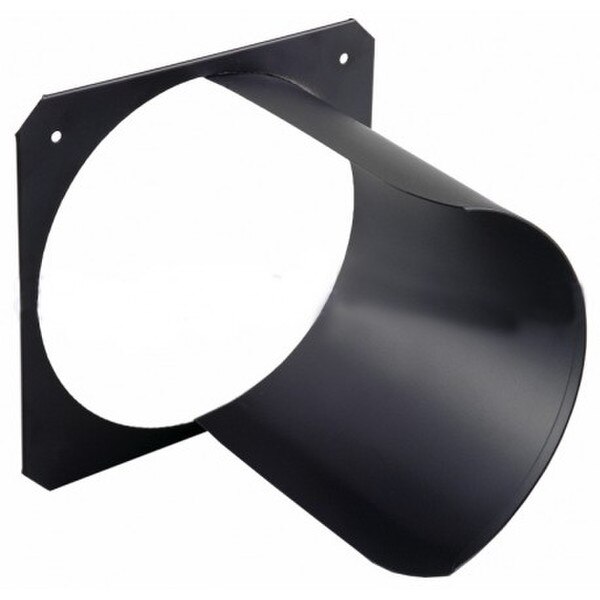

- 6.25" Top Hat
Product Features:
- 19º field angle
- Rated up to 750W
- Super-efficient HPL lamp
- Faceted dichroic reflector removes 90% of IR heat from beam
- Interchangeable lens tubes
- Rotating barrel ± 25º
- Three-plane stainless-steel shutter blade assembly
- Tool-free lamp adjustment
- Insulated rear handle
- Rugged die-cast aluminum construction
Assembly_&_Spare_Parts_36066_File_5.pdf
Beam_Spread_Chart_36066_File_6.pdf
26_Degree_CAD_Drawing_36066_File_4.dwg
Gobo_Magnification_Calculator_36067_File_6.xls
Data_Sheet_36071_File_1.pdf
User_Manual_36066_File_2.pdf
