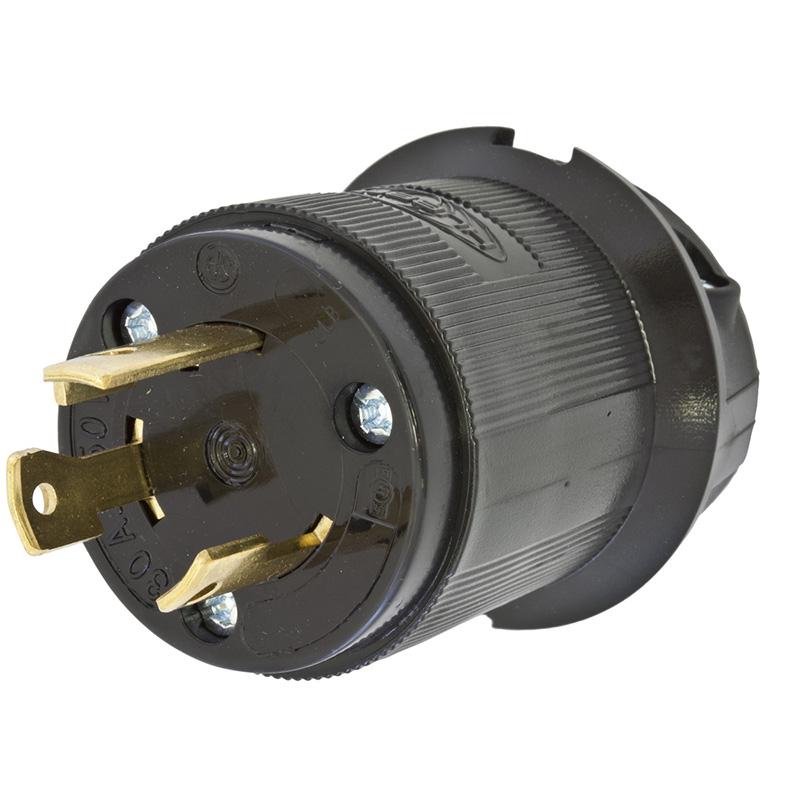

Hubbell HBL2621BK M L6-30 3w 250v Black
Details
Locking Devices, Twist-Lock®, Insulgrip® Plug, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30P, All black nylon.
WIRING_HBL2621BK_spec.pdf
General:
- Application: Extra Heavy Duty Industrial
- Color: Black, Noir
- Cord Range: 0.360"-0.930" (9-24)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Horsepower - Maximum: 2
- Item Type: 30A Insulgrip® Plug
- UL 498
- Fed.Spec. W-C-596
- CSA C22.2 No.42
- Material: Nylon
- Material - Mounting Hardware: Cord Mounted
- Number Of Poles: 2-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
Performance:
- Electrical-Current Interrupting - Certified for current interrupting at full rated current
- Electrical - Dielectric Voltage - Withstands 2,000V minimum
- Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
- Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Mechanical - Flammability - HB or better per UL94/CSA 22.2 No.0.17
- Environmental - Moisture Resistance - IP20 Suitability
- Environmental - Operating Temperatures - Maximum Continuous 75°C
- Minimum -40°C (w/o impact)
- UPC: 783585172248
Dimensions:
- 2.75 in x 2.26 in x 2.26 in
- Display Size: Standard Sized
- Height: 2.26 in
- Length: 2.75 in
- Weight: 0.25 lb
- Width: 2.26 in
Electrical Ratings:
- Amperage Rating: 30 A
- Connectivity: Pressure Terminal Screws
- Current / Amperage Rating: 30 A
- Current Rating: 30 A
- Dielectric Strength: Withstands 2,000V minimum
- Phase: Single Phase
- Voltage Rating: 250 VAC
- Voltage Rating Description: 250 VAC
Conductor Related:
- Cord Type: All Listed Portables
- Number Of Wires: 3-Wire Grounding
- Wire Size: #16 AWG to #8 AWG
Certifications and Compliance:
- Industry Standard(s)
- Certified to CSA C22.2 No.42
- Fed.Spec. W-C-596
- Listed to UL 498
- Nema Rating: L6-30P
Logistics:
- Carton Quantity: 30
