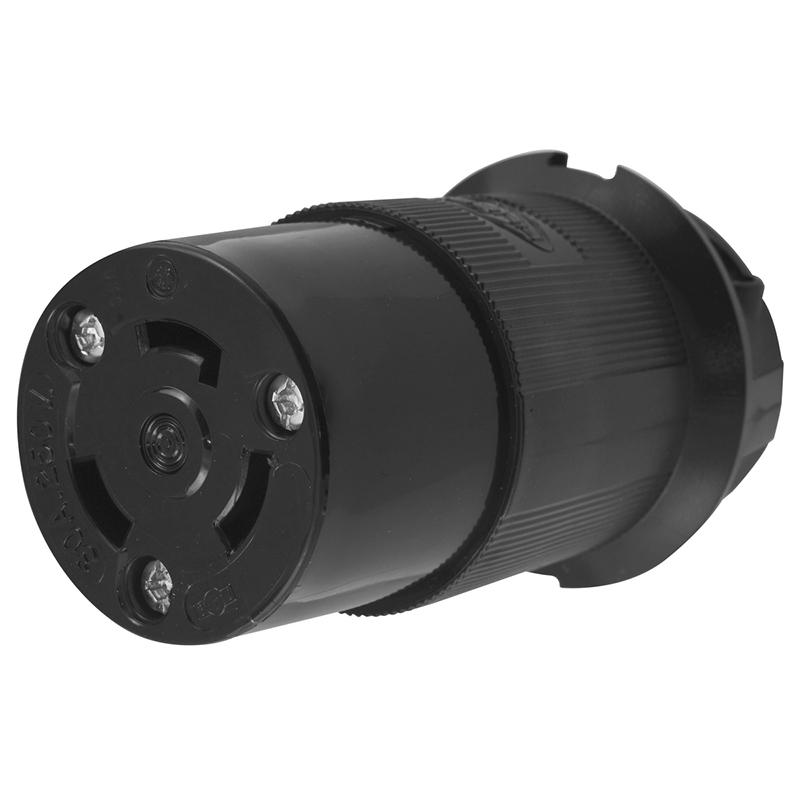

Hubbell HBL2623BK Twist-Lock Insulgrip Female Connector - 30A 250V - Black

Twist-Lock® Insulgrip® Connector, 30A, 250V AC, 2-Pole, 3 Wire Grounding, NEMA L6 Nylon


Features:

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants

General:

• Application: Heavy Duty Industrial
• Color: Black
• Cord Range: 0.360"-0.930" (9-24)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: 30A Insulgrip® Connector
• UL 498
• Fed.Spec. W-C-596
• CSA C22.2 No.42
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical-Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C
• Minimum -40°C (w/o impact)
• UPC: 783585172255

Dimensions

• 3.86 in x 2.26 in x 2.26 in
• Display Size: Standard
• Height: 2.26 in
• Length: 3.86 in
• Weight: 0.35 lb
• Width: 2.26 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 250 VAC
• Voltage Rating Description: 250 VAC

Conductor Related:

• Number Of Wires: 3-Wire Grounding
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Industry Standard(s)
• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating: L6-30R

Logistics:

• Carton Quantity: 30
