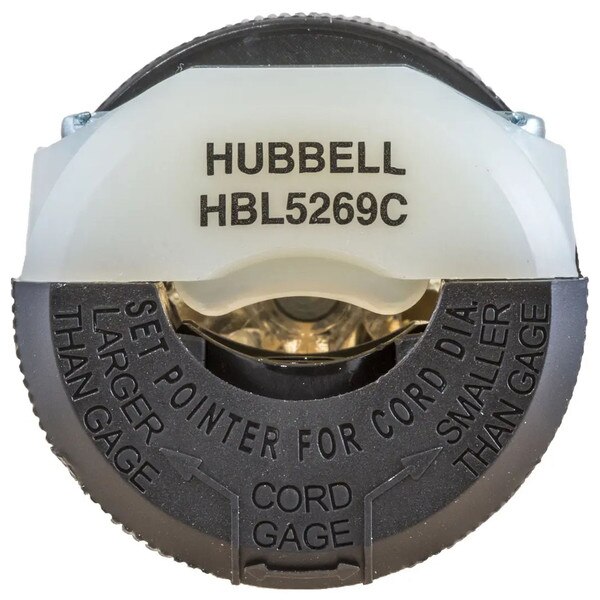

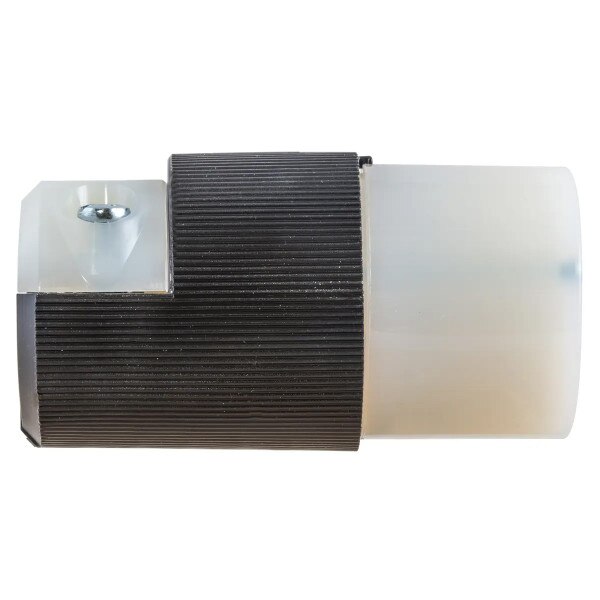

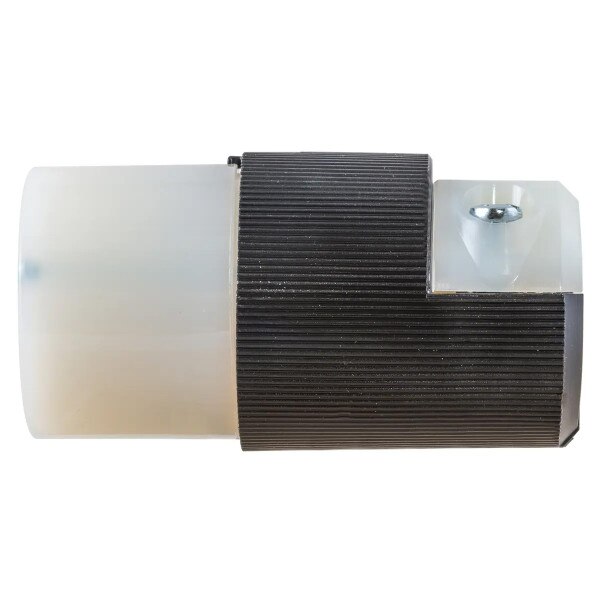

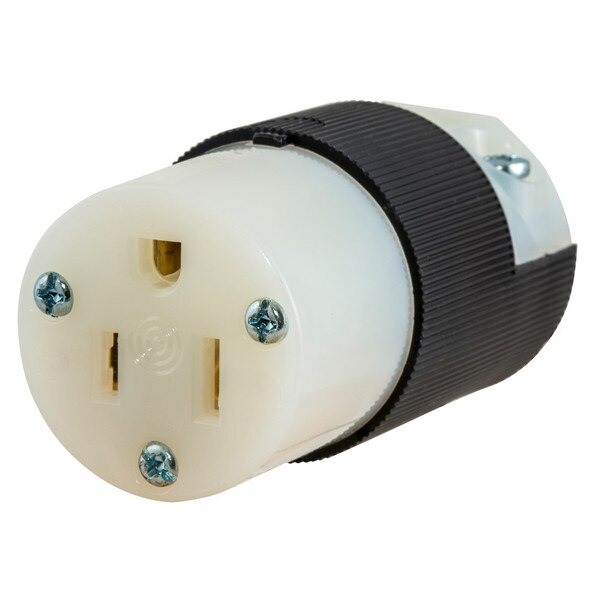

Hubbell HBL5269C Insulgrip 5-15R Edison - 15A 125V Female Connector - BK and WH
Details
Features:
- Body Style: Straight
- Standard: NEMA
- Amperage: 15A
- Voltage: 125V
- Poles and Wires: 2 Pole, 3-Wire Grounding
- Wiring Method: Back Wire
- Hospital Grade: No
- Plug/Connector Grade: Insulgrip
- Color: Black and White
- NEMA No.: 5-15R
- Cord Diameter: .230"-.720" (5.8-18.3)
- Type: 2 Pole, 3 Wire, Grounding
- Rating: 15A, 125V
- Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
- IP Suitability: IP20
- Housing Material: Nylon-Black
- Retainer Material: Polycarbonate-Clear
- Cord Clamp Material: Nylon-Natural
- Terminal Screw Material: #8-32 Brass, Multiple Drive
- Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
- Contact Holder Material: Nylon-Natural
- Power Contacts Material: .040" (1.0) Copper Alloy
- Dielectric Voltage: Withstands 2,000V minimum
- Current Interrupting: Certified for current interrupting at full rated current
- Temperature Rise: Max 30 degrees C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green)
- Terminal Accommodation: #18-#10 AWG copper stranded conductor
- Product Identification: Ratings are a permanent part of the device
- Flammability: UL 94 HB or better
- Operating Temperatures: Maximum continuous 75 degrees C, minimum -40 degrees C (w/o impact)
- Weight: 0.150 lbs
