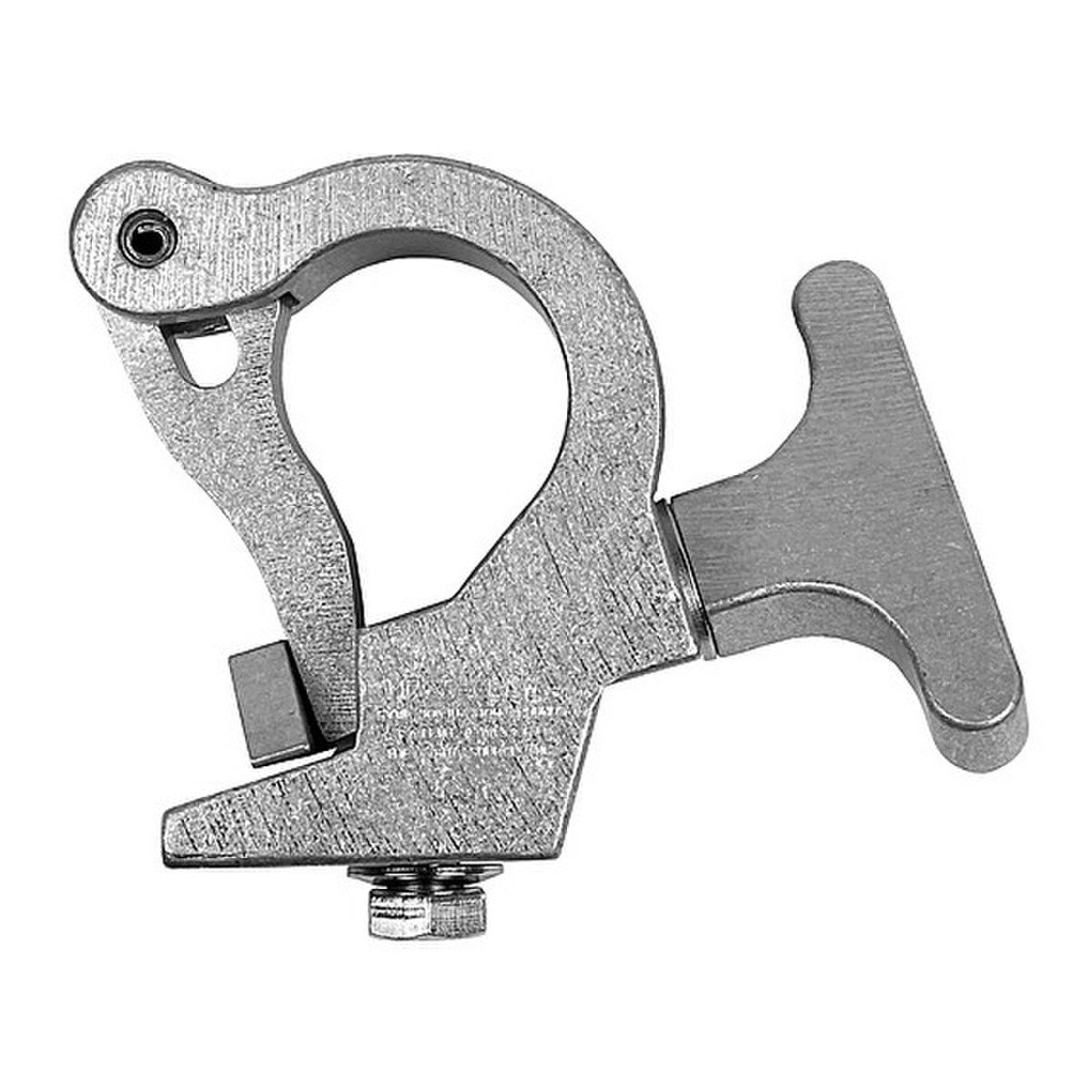

Light Source Mega-Claw - Aluminum Finish - Light Source MWM

The new standard for hanging intelligent lighting fixtures. Allows one man to hang intelligent fixtures. Simply flip the link up, place clamp over the pipe and the Mega-Claw holds the weight of the fixture for you while you secure it with the solid 3/4" thick handle. The Mega-Claw will fit onto (1-1/2" Pipe) 1.9" OD to 2" OD.

Specifications:



• Minimum Size: 1.5" pipe, 1.90" OD pipe
• Maximum Size: 2" OD truss tube
• Safe Vertical Working Load: 1,100 lbs (500kg)
• Hardware:
  • 1/2"-13 x 1" grade 5 hex head fixture mounting bolt with 1" diameter 600 pound belleville spring washer for tensioning
  • 1/2"-13 x 4" trapezoidal head bolt for securing link to pipe
• Dimensions: 4.375" Tall x 6" Wide x 2" Thick
• Weight: 2 lb (0.9kg)
