Light Source Mega-Coupler - Black Anodized - Light Source MLB

(0)No Reviews yet
$32.77
QuantityPrice
1 – 11$32.77
12 – 23$31.79
24 – 35$31.13
36 – 47$30.48
48 +$30.15
SKU: Light Source MLB

If you add this item, you're only $216 away from free shipping! (Motor Freight / Fluids / Oversized Excluded)

Details

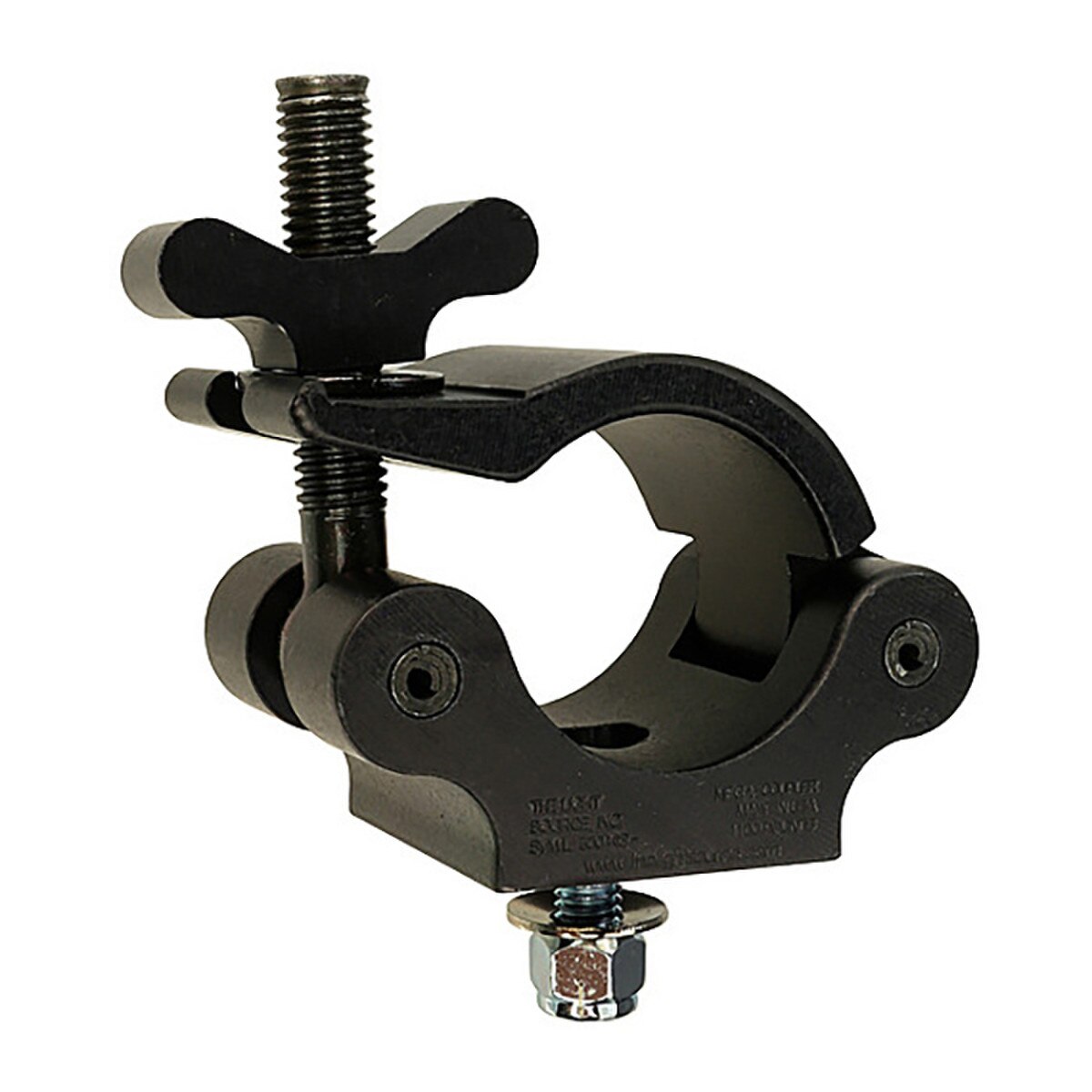

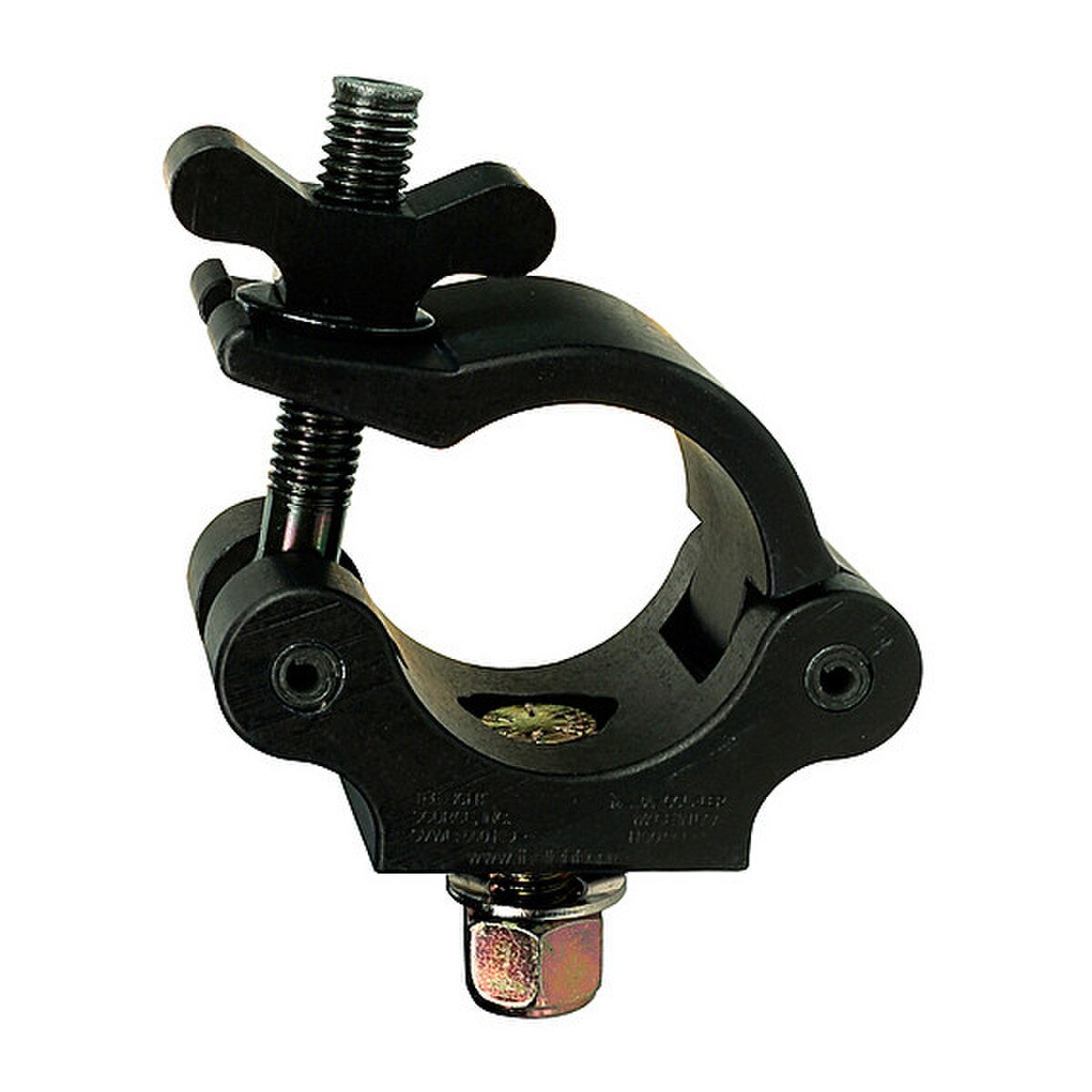

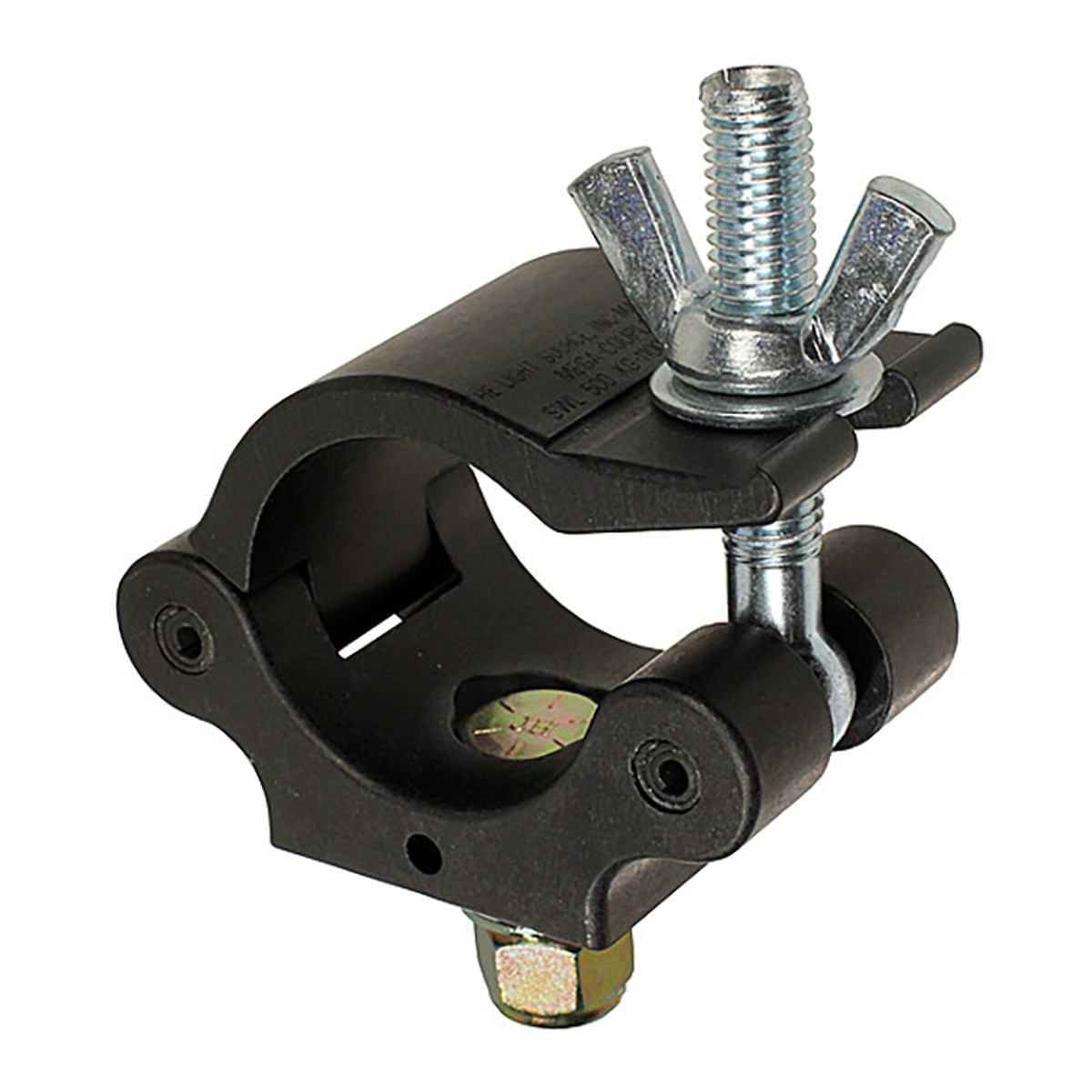

The Mega-Coupler has solid wing nut tabs that are stronger than regular steel wing nuts. The grade 8 Hex Head Cap Screw locks securely into the hex milled pocket so that the nylock nut can be tightened while the clamp is installed


The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2 " OD truss tube and has the industry compatible 14 mm thick base.


Although 1/2" is the most frequently used hardware size, the Mega-Coupler also comes in a 3/8" and 1/4" size. Other Mega-Coupler options include stainless steel hardware, steel wing nuts, Metric M-12 and M-10 hardware.

Specifications:
Minimum Size:

  • 1.25" pipe, 1.66" OD pipe

Maximum Size:

  • 1.5" pipe, 1.90" OD pipe, 2" OD truss tube

Working Load Limit:

  • 1,100 lb 500kg, for 1/2" and 3/8" hardware 450 lb for 1/4" hardware

Hardware:
Standard Hardware:

  • 1/2-13 × 1 1/4" Hex Head grade 8 zinc plated steel bolt with nylock nut
  • 1" Belleville Washer Weight 1.14 lbs. (MLB-NN – 1.11 lbs.) (MLB3/8 – 1.07 lbs.)

Case Quantities:

  • 24

Quick_Reference_Guide_4394_File_1.pdf
Mega Coupler Spec Sheet.pdf
