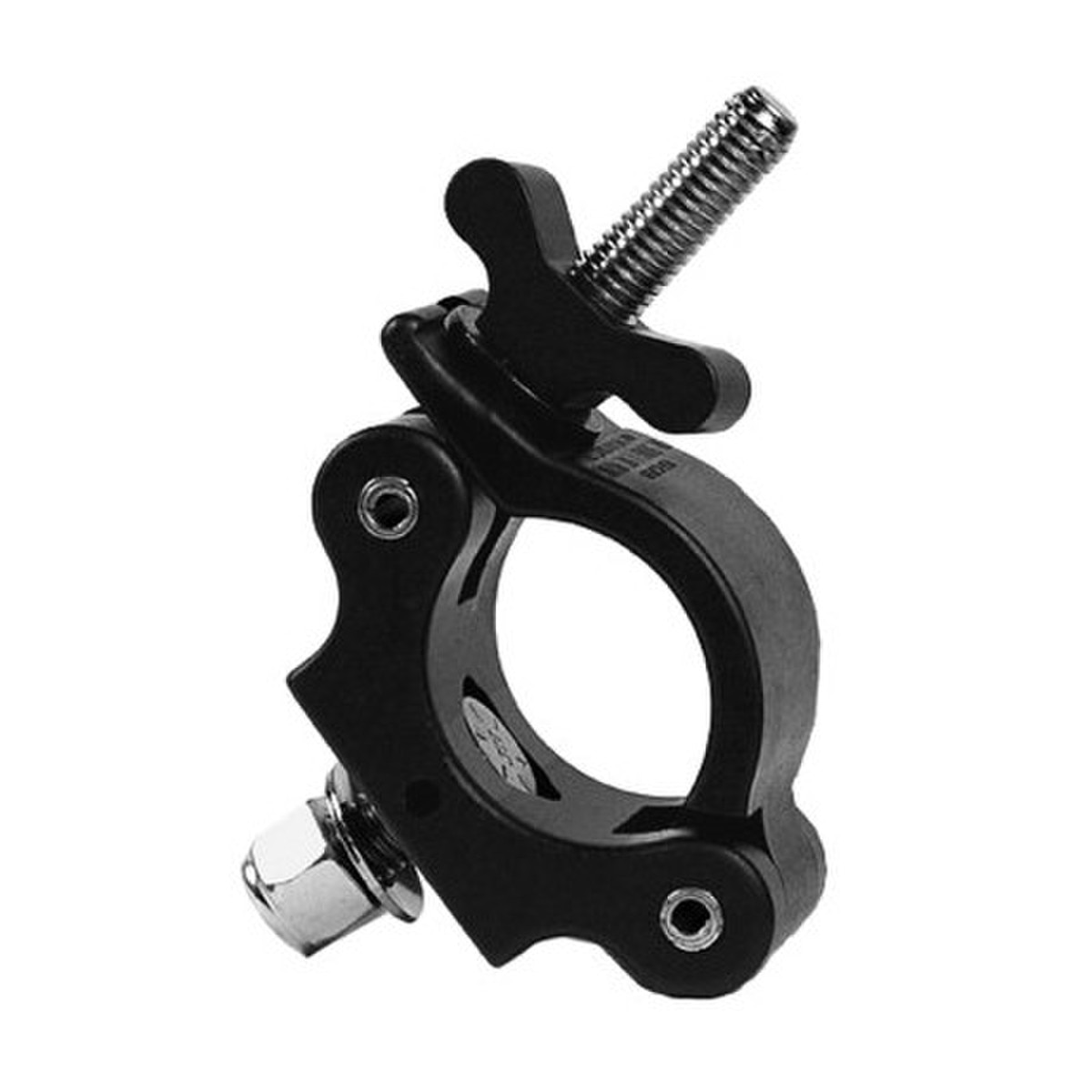

Light Source Mega Coupler with 3/8in. Hex Head Bolt - Black Anodized - Light Source MLB3/8
Details
Light Source's Mega-Coupler has solid nut tabs that won’t break off. The Mega-Coupler uses standard half inch by 1-1/4 inch long hex head grade 8 bolts to secure your load.
The bolt head locks into a hex milled pocket so that you can tighten the nylock nut while the clamp is installed. It has an industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2" OD truss tubes.
The bolt head locks into a hex milled pocket so that you can tighten the nylock nut while the clamp is installed. It has an industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2" OD truss tubes.
Specifications:
- Minimum Size: 1.25" pipe, 1.66" OD pipe
- Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Safe Vertical Working Load: 1,100 lbs (500kg)
- Hardware:
- 3/8 x 1.5" Hex Head grade 8 zinc plated steel bolt with nylock nut
- 1" Belleville Washer
- Weight: 1.2 lbs
