Light Source Mega-Coupler with Eye Nut - Aluminum Finish - Clearance
Details

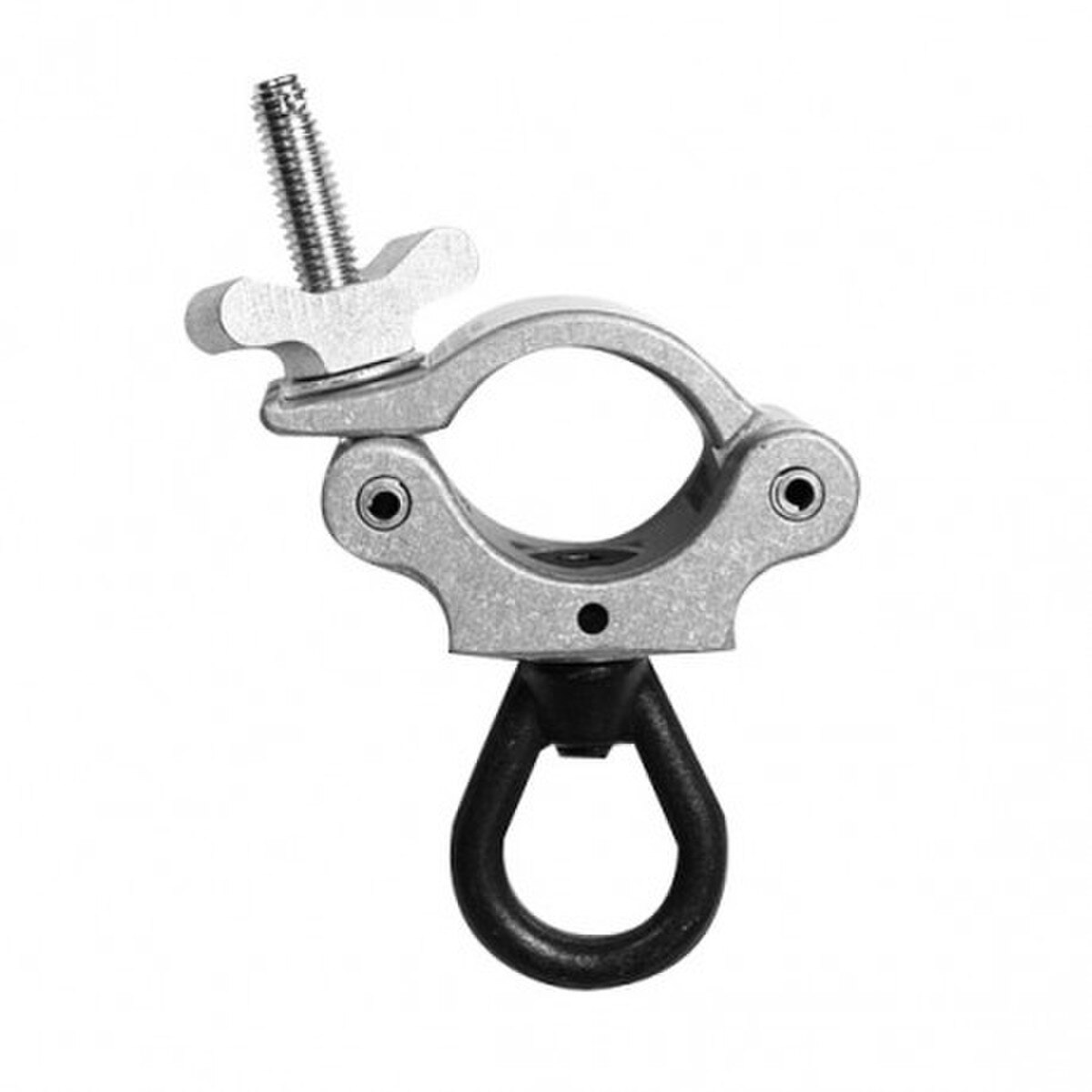

The Mega-Coupler with Eye Nut has a Forged Steel Eye Nut for making rigging connections from a pipe or truss. The Forged Eye Nut is secured to the Mega-Coupler with a 1/2" flathead socket screw with permanent loctite. The Eye Nut rigging connection is 2 3/4" below the pipe and is able to swivel for proper orientation before loading.
The Mega-Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Mega-Coupler has a wide wing nut for fastening the clamp to the pipe or tube.
Specifications:
- Minimum Size: 1.25" pipe, 1.66" OD pipe
- Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Safe Vertical Working Load: 1100 lbs (500 kg)
- Hardware:
- Forged steel eye nut
- 1/2" flathead socket screw with permanent loctite
- Dimensions: 2.5" Tall x 2" Wide x 0.4" Thick
- Pear-shaped I.D.
- I.D. Dimensions: 1.2" x 1.5"
- Weight: 1.3 lbs
