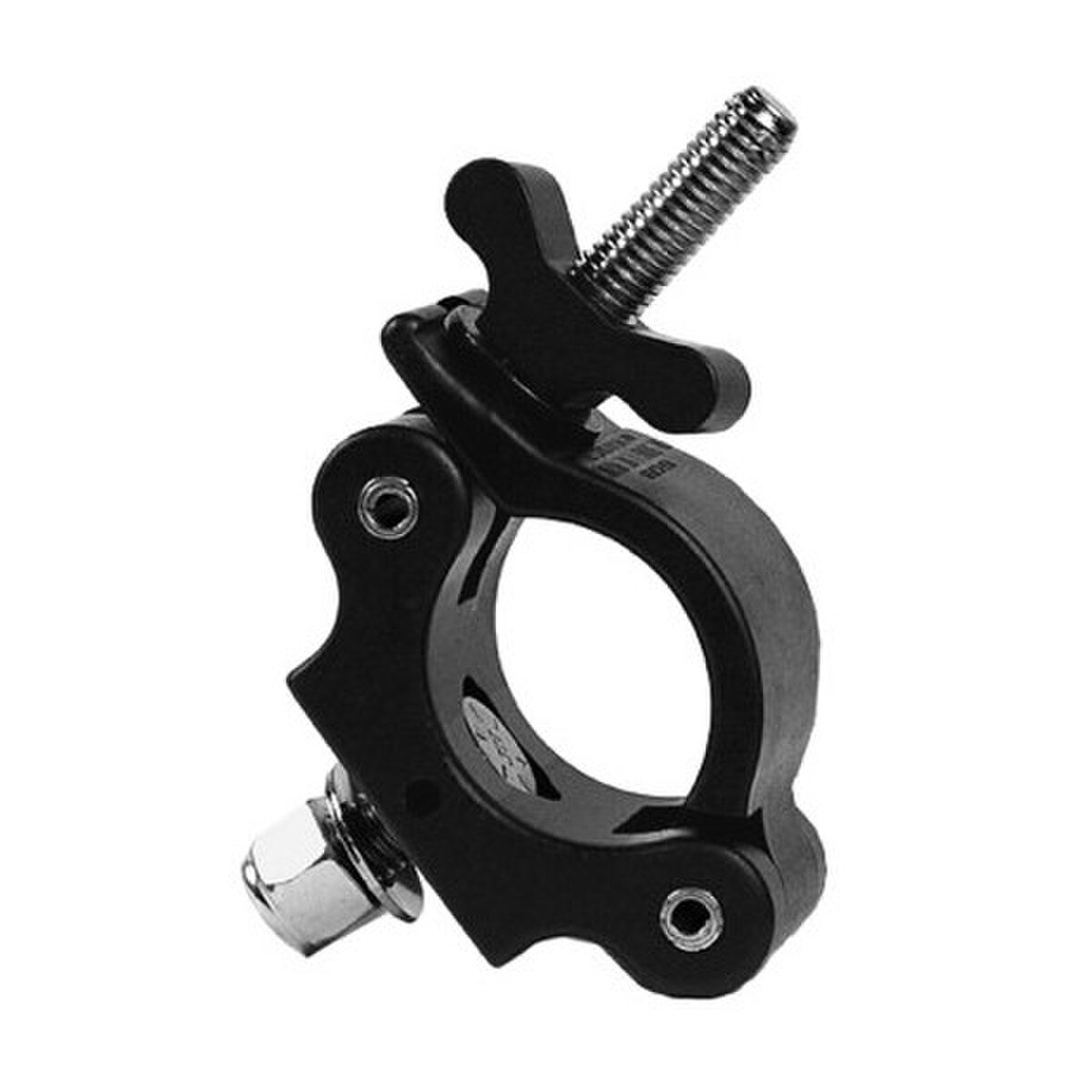

Light Source Mega Coupler with Stainless Steel Hardware - Black Anodized

The Mega-Coupler has solid wing nut tabs that are stronger than regular steel wing nuts. The grade 8 Hex Head Cap Screw locks securely into the hex milled pocket so that the nylock nut can be tightened while the clamp is installed


The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2 " OD truss tube and has the industry compatible 14 mm thick base.


Although 1/2" is the most frequently used hardware size, the Mega-Coupler also comes in a 3/8" and 1/4" size. Other Mega-Coupler options include stainless steel hardware, steel wing nuts, Metric M-12 and M-10 hardware.


For countersunk Mega-Couplers, see the Flat Head Mega-Coupler section.

For replacement parts, see the Spare Parts section.

Specifications:

• Minimum Size: 1.25" pipe, 1.66" OD pipe
• Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
• Safe Vertical Working Load: 1,100 lb (500kg)
• Hardware:
  • 1/2-13 tpi x 1 1/4" Hex Head grade 8 stainless steel bolt with nyloc nut
  • 1" Belleville Washer
• Weight: 1.2 lbs
