Light Source Mega-Drop Down - 24 Inch - Black Anodized
Details

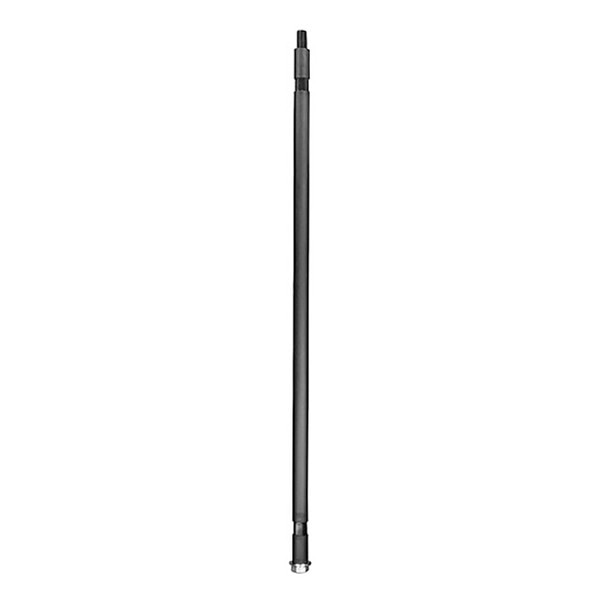

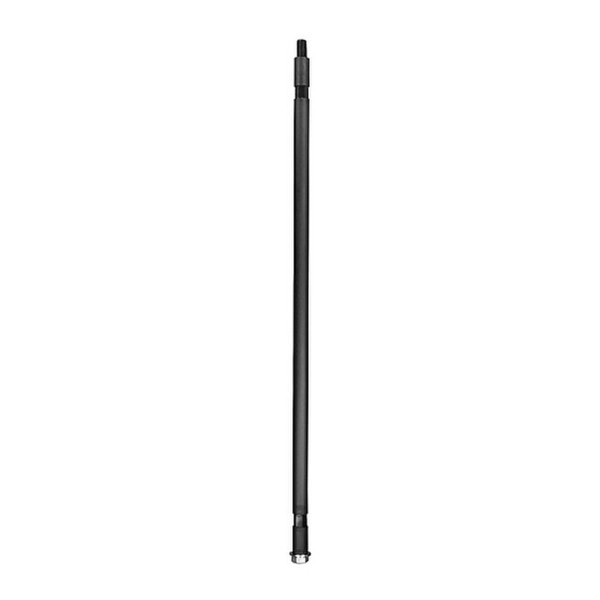

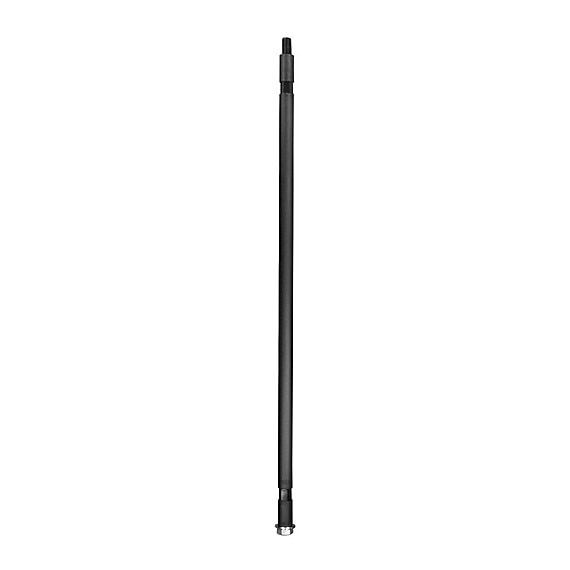

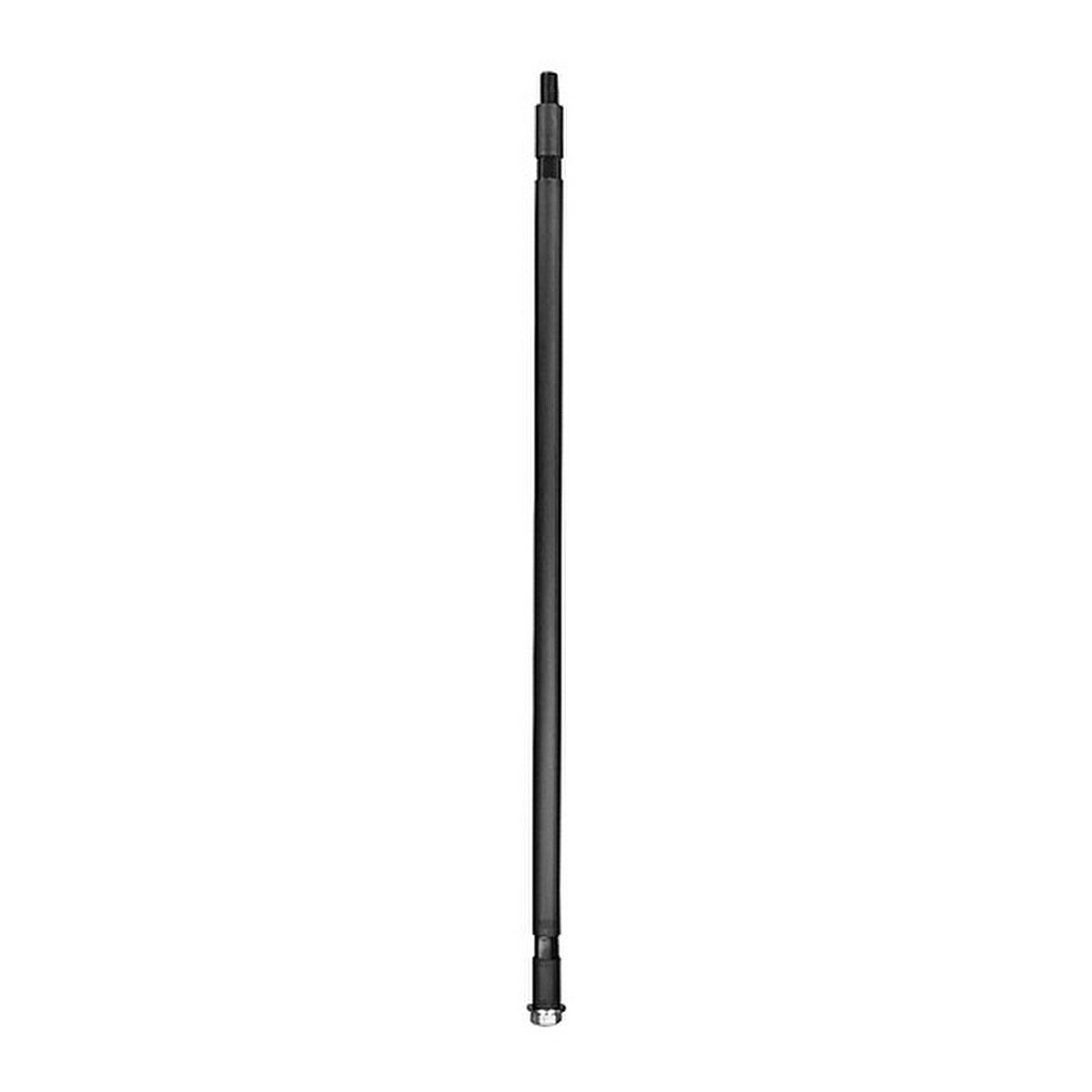

The Mega-Drop Down is a quick and inexpensive way to solve a lot of problems when you need to place a light fixture below the pipe or grid. The Mega-Drop Down is made from solid 3/4" diameter 6061 T-6 aircraft grade aluminum.

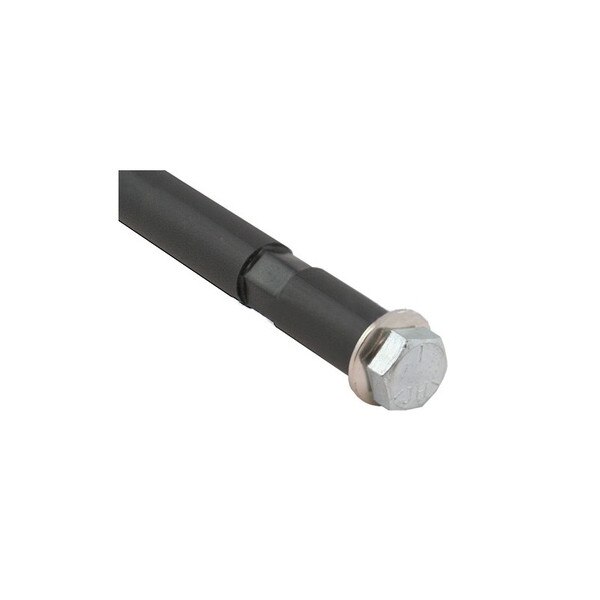

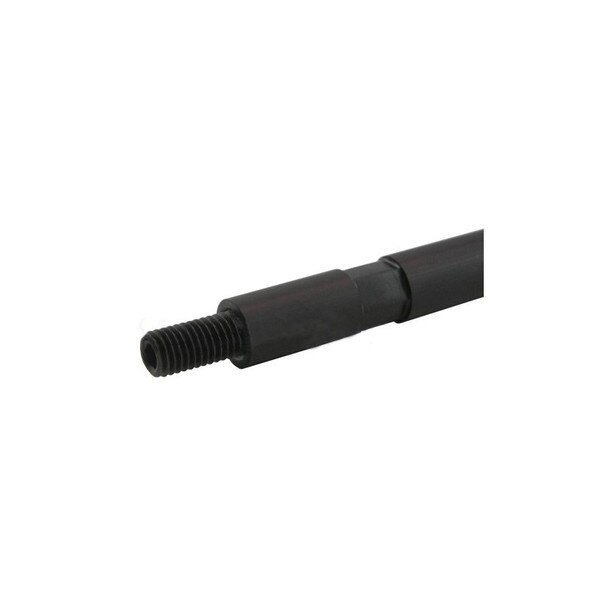

It has a 1/2-13 tpi x 2" steel stud to fasten into a Mega-Clamp, or another clamp that has 1/2"-13 female threads. The other end of the Mega-Drop Down has 1/2-13 female threads to bolt the light ficture's yoke to the drop down with a 1/2-13 grade 5 zinc plated bolt and Belleville washer.
When assembling the Drop down to the Mega-Clamp (or other clamp), use Loctite Red or other permanent threadlocking compound to make the connection secure.
Quick_Reference_Guide_4394_File_1.pdf
It has a 1/2-13 tpi x 2" steel stud to fasten into a Mega-Clamp, or another clamp that has 1/2"-13 female threads. The other end of the Mega-Drop Down has 1/2-13 female threads to bolt the light ficture's yoke to the drop down with a 1/2-13 grade 5 zinc plated bolt and Belleville washer.
When assembling the Drop down to the Mega-Clamp (or other clamp), use Loctite Red or other permanent threadlocking compound to make the connection secure.
Specifications:
- Safe Vertical Working Load: 600 lbs
- Hardware:
- 1/2-13 tpi x 2" Steel stud to fasten into a Mega-Clamp
- 1/2"-13 1" grade 5 hex head zinc plated cap screw with a Belleville washer
- Dimensions: 3/4" x 24"
Quick_Reference_Guide_4394_File_1.pdf
Ratings & Reviews
1 review
easy transaction
by Brian Bickel -
worked perfectly for our purposes.
