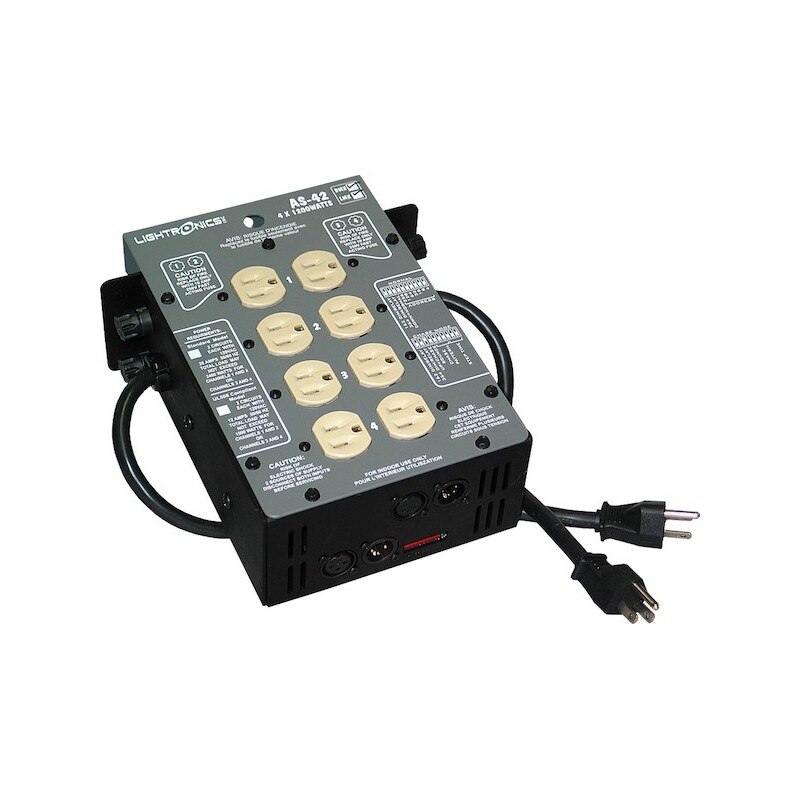

Lightronics AS42 Series Portable Dimmer - 4 Channel 1200W

The AS42D is a compact portable 4 channel light dimmer. It has a maximum capacity of 1200W per channel and maximum total load capacity of 4800W. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS42D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.

Specifications:

• 4 Channels
• 1200W per Channel
• 8 Built in Chases
• DMX-512 & LMX-128
• Relay Mode Switchable
• Fuses
• Edison Outputs
• 120V


Specification_Sheet_99118_File_1.pdf
User_Manual_99118_File_2.pdf
