Lightronics AS42 Series Portable Dimmer - 4 Ch, 1200W, UL-508 Compliant - 12A Mains Circuit Breaker

(0)No Reviews yet
$471.75
SKU: Lightronics AS42D - UB

Details

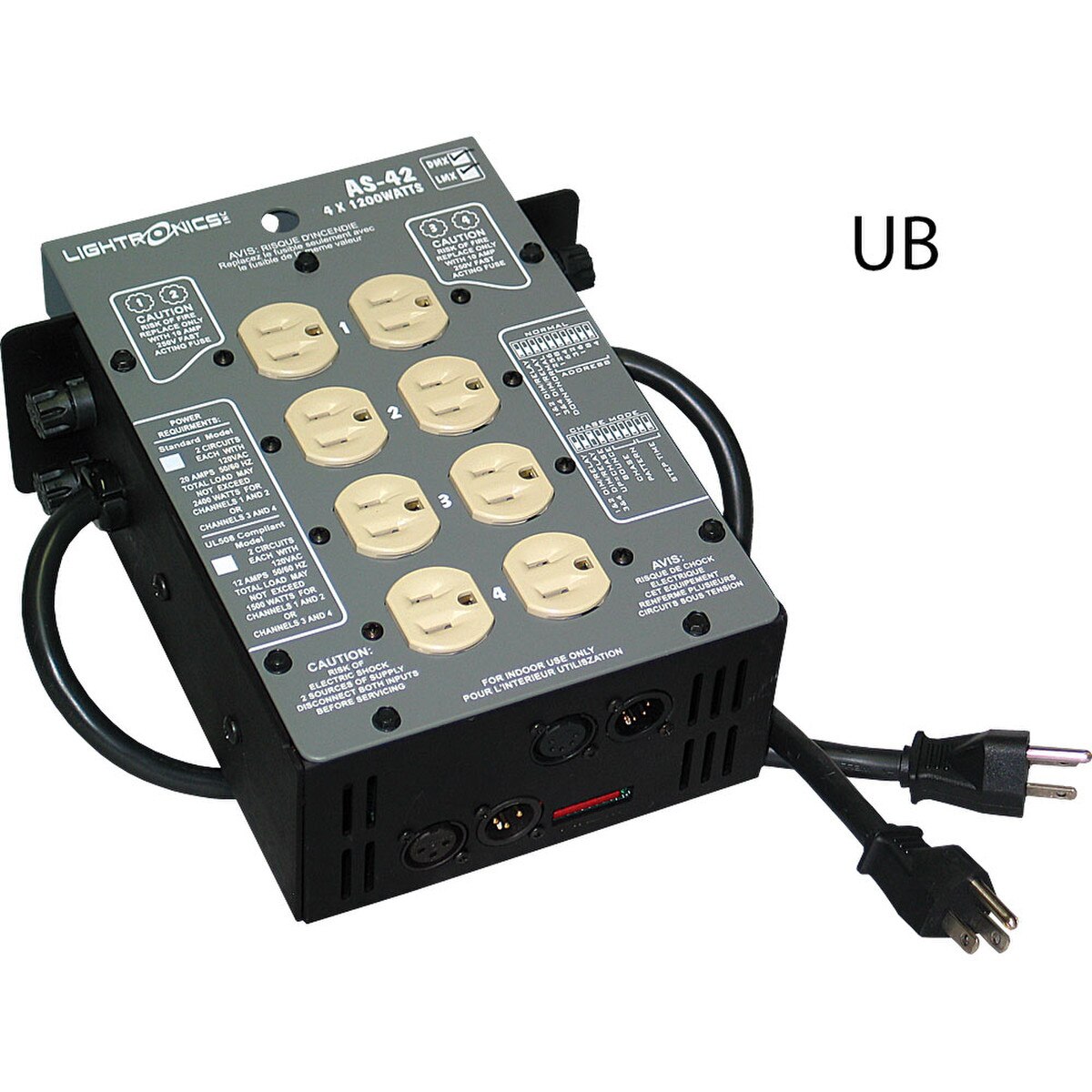

The AS42D-UB is a UL-508 Compliant compact portable 4 channel light dimmer. It has a maximum capacity of 1200W per channel and maximum total load capacity of 4800W. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS42D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.

Specifications:

  • 4 Channels
  • 1200W per Channel
  • 8 Built in Chases
  • DMX-512 & LMX-128
  • Relay Mode Switchable
  • Fuses
  • Edison Outputs
  • 120V
  • UB - UL-508 Compliant - 12A mains circuit breaker, 2880W total power

Options:

  • CB - Circuit Breaker Option
  • ST - Stagepin output
  • UB - UL-508 Compliant - 12 Amp mains circuit breaker, 2880 Watts total power
  • UT - UL-508 Compliant - Twistlock power input connector
  • 230V - 230 Volt operation
