Lightronics Rack Mount Dimmer - 12 Channel - 1200W - DMX-512 5-Pin with Circuit Breaker
Details

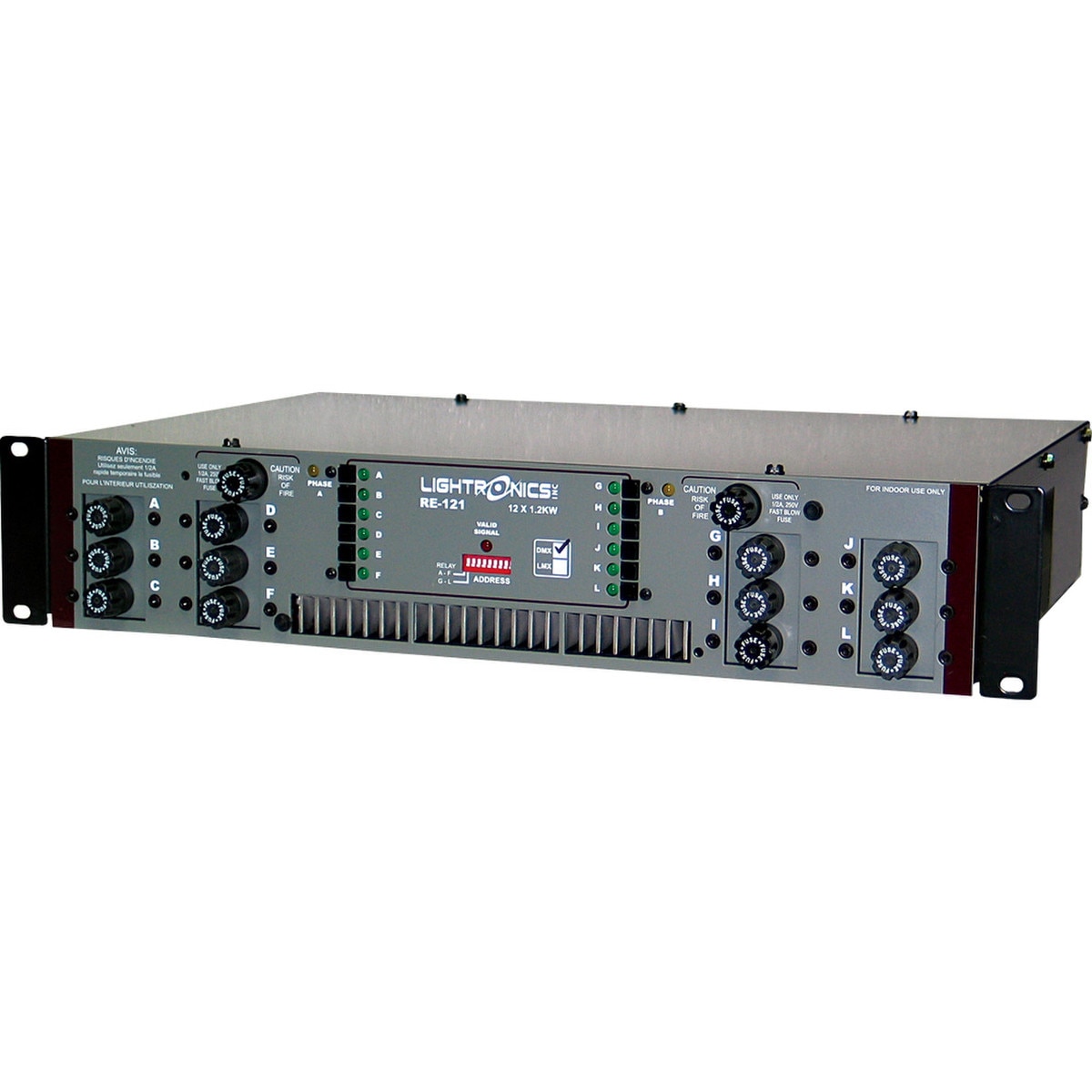

The RE121D is a 12 channel rack mount dimmer with a capacity of 1,200 watts per channel giving a total of 14,400 watts. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RE121D is controlled by a lighting control console. The unit uses the DMX-512 control protocol. Channels A - F and/or channels G - L may be switched to operate in "relay" mode. In relay mode, channels may be switched only to either to full on or full off depending on fader position.
Lightronics RE121D - CB Cutsheet.pdf
Lightronics RE121D - CB Manual.pdf
The RE121D is controlled by a lighting control console. The unit uses the DMX-512 control protocol. Channels A - F and/or channels G - L may be switched to operate in "relay" mode. In relay mode, channels may be switched only to either to full on or full off depending on fader position.
Specifications:
- 12 Channels
- 1200W per Channel
- 10 Amp Fast Acting Fuses
- Dim/Relay Mode per 6 Channel groups
- 120/240V 60 Amp
- DMX-512 Protocol
- UL-508 Compliant
- Optional Circuit Breakers
Options:
- CB - Circuit Breaker Option Available for RE-121D and RE-121L
- 230V - 230 Volt Operation
- ST - Stagepin Outlet Panel
- SO - Socapex Outlet Panel *Non UL-508 Compliant
- PL - Powerlock Outlet Panel *Non UL-508 Compliant
- DP - Edison Duplex Outlet Panel
- XT - Terminal / Barrier Connector Strip with Knockout Cover
