Lightronics Rack Mount Dimmer - 12 Channel - 1200W - DMX-512 5-Pin
Details

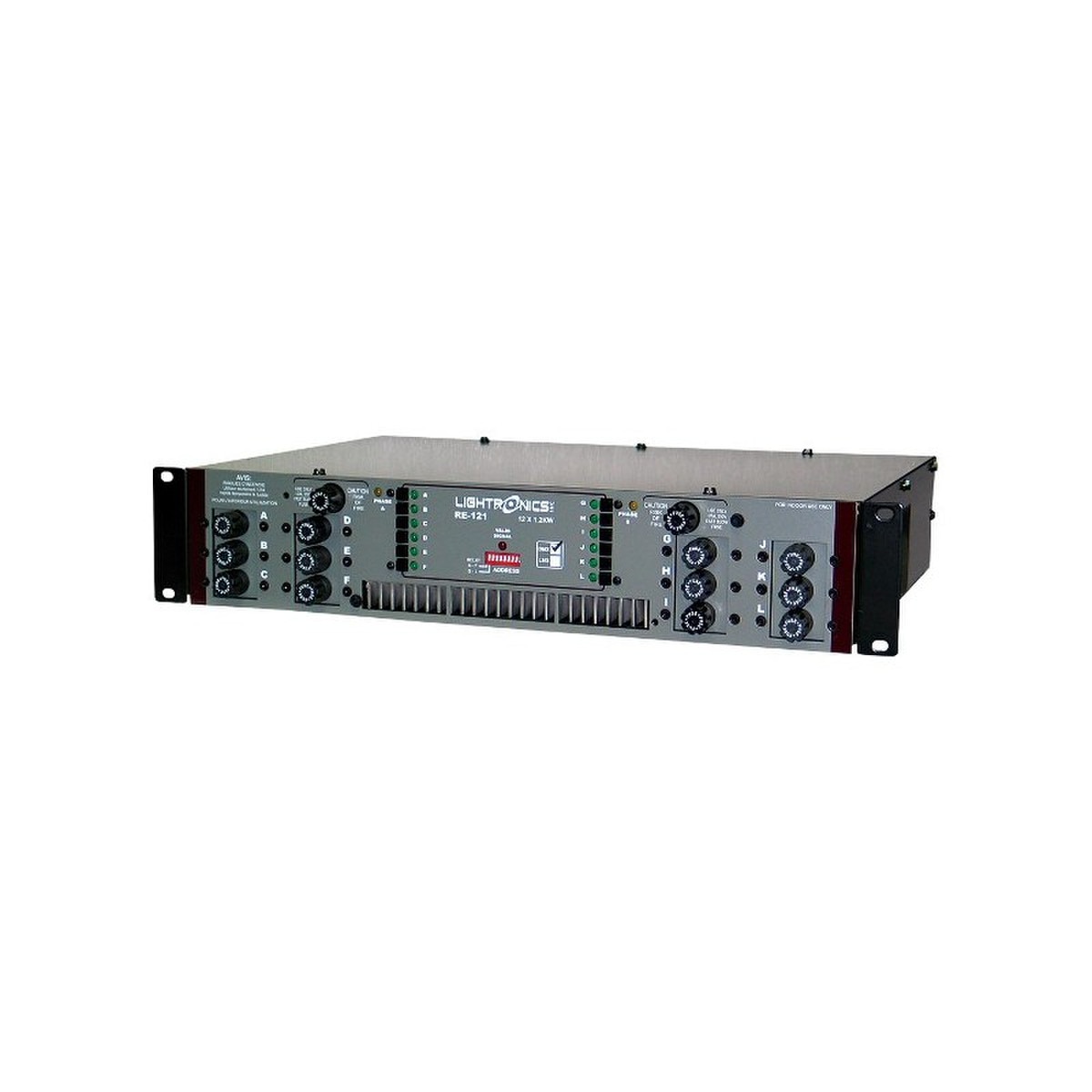

The RE121D is a 12 channel rack mount dimmer with a capacity of 1,200W per channel, giving a total of 14,400W. It is suitable for church, stage, theater, school, night clubs, live performances, and other event and artistic applications.
Specification_Sheet_88031_File_1.pdf
User_Manual_88031_File_2.pdf
The RE121D is controlled by a lighting control console. The unit uses the DMX-512 control protocol. Channels A - F and/or channels G - L may be switched to operate in relay mode. In relay mode, channels may be switched only to either full on or full off depending on fader position.
Specifications:
- 12 channels
- 1200W per channel
- 10A Fast Acting Fuses
- Dim/Relay mode per 6 channel groups
- 120 / 240V 60A
- DMX-512 Protocol
- UL-508 Compliant
- Optional Circuit Breakers
Options:
- Edison Duplex Outlet panel
- Terminal / Barrier Connector Strip with Knockout Cover
