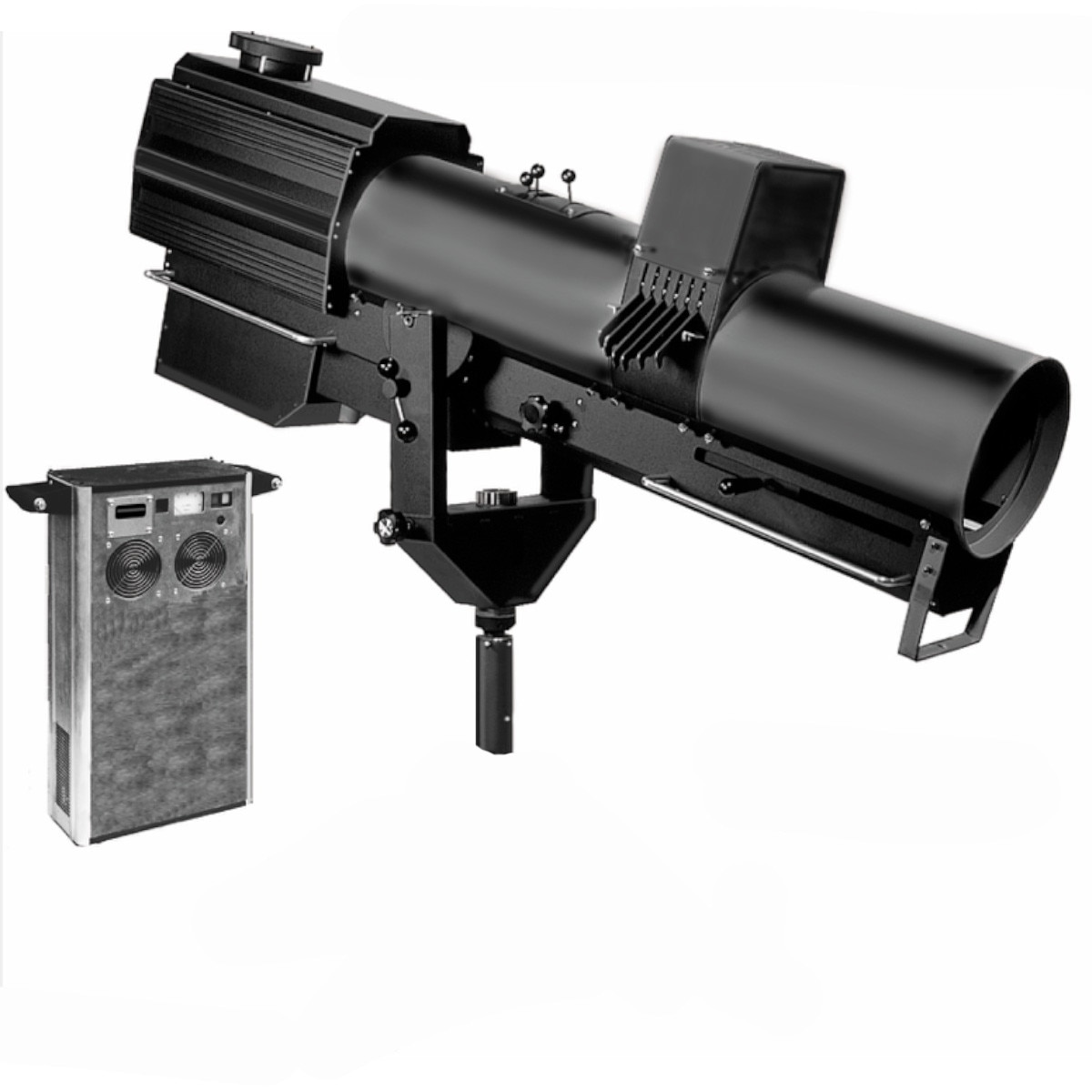

Lycian 1295 Extreme Long Throw 3/4K - w/ 3 Legged Folding Base
Details
A very powerful extreme long throw followspot that uses 3000W or 4000W Xenon lamps. As flicker-free as possible. Suitable for Hi-Def TV and film.
Product Features:
- Dichroic "cold mirror" reflector
- Optical grade lenses
- Gobo slot
- Nichrome iris
- Chopping shutter
- Fader
- Quick focus knob
- Operates with 3000W or 4000W lamps
- Moveable rear lamp assembly, adjustable on ballast
- Separate slot for diffuser, UV or correction filter
- Center mounted 6-color boomerang, uses industry standard color frame for gels and dichroics
- Single lever trombone with quarter-turn lock. Beam intensifies as the diameter is reduced
- Operable from left or right side via dual controls and reversible boomerang
- Ball bearing suspension for smooth and easy pan and tilt
- Rapid tilt balance adjustment and adjustable counterweight for customized balance
- Available with 3 legged folding base or rigid 4 legged base
- Easy access for cleaning and maintenance
- Ammeter and control for lamp current
- Elapsed time meter
- Outboard electronic power supply operates at 205-240V AC, 50 or 60 Hz
Photometrics with 3000w lamp | |||||
|---|---|---|---|---|---|
| Throw in Feet | 100 | 150 | 200 | 300 | 450 |
| Spot | |||||
| Footcandles | 2339 | 1039 | 584 | 260 | 90 |
| Min. Diameter - .5° | 1' | 1.5' | 2' | 3' | 4.5' |
| Max. Diameter - 3° | 6' | 9' | 12' | 18' | 27' |
| Flood | |||||
| Footcandles | 280 | 124 | 70 | 31 | 10 |
| Max. Diameter - 7.5° | 15' | 22.5' | 30' | 45' | 67' |
