OmniSistem Beta 3 - R12/R6 Active Compact Line Array System

(0)No Reviews yet
$5,443.50
SKU: OmniSistem B3-R12-R6A

Add this item to get free shipping! (Motor Freight / Fluids / Oversized Excluded)

Details

The Compact Active Line Array loudspeaker systems are used in applications including sound reinforcement for houses of worship, events, theme parks, multi-functional auditoriums, schools, transit terminals, and many more. The R Series Compact Active Line Array systems delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.

Features:

General:

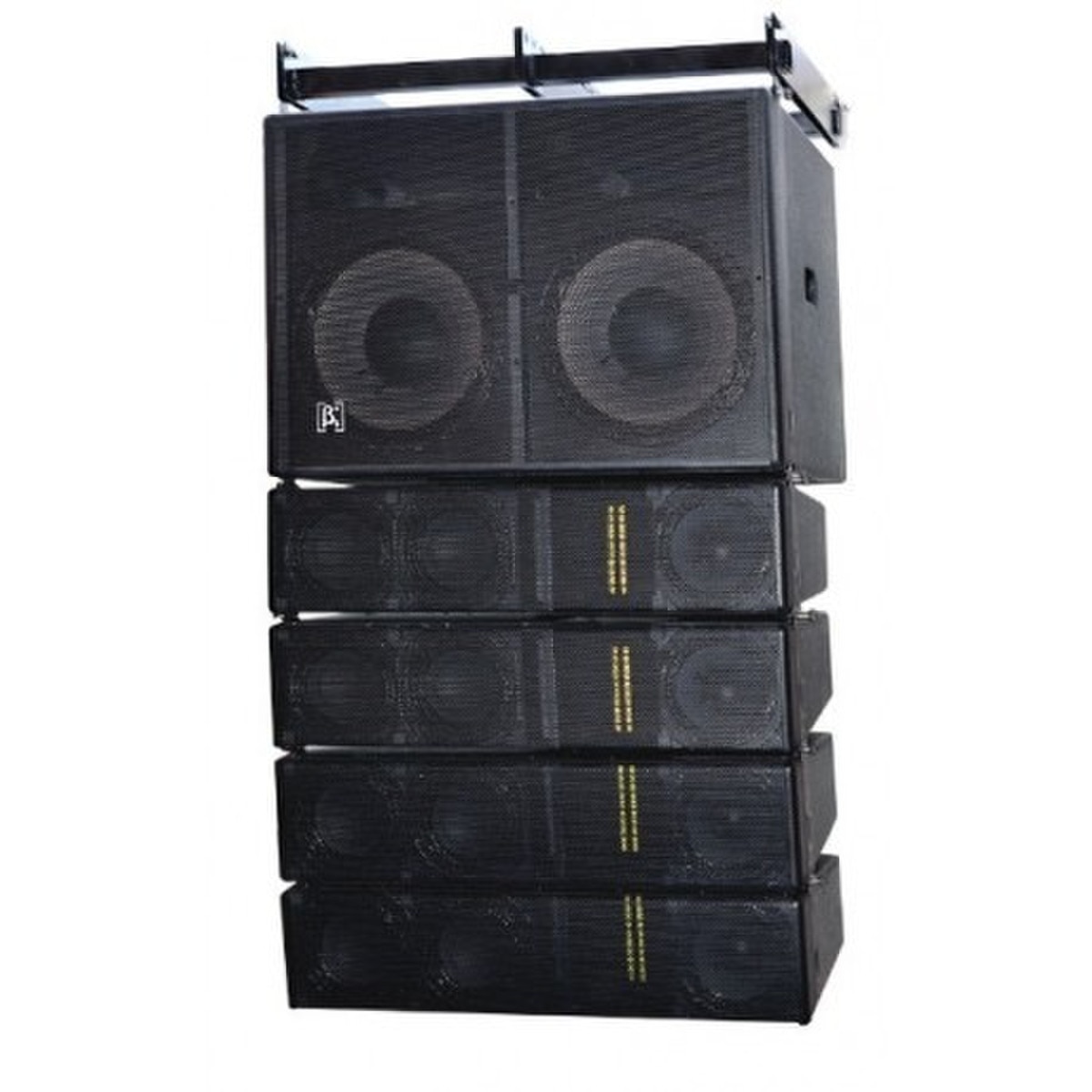

  • The system is comprised of 4 x R6 mid/high boxes (1 x Ribbon, 1 x 6.5" MF and 2 x 6.5" LF drivers per cabinet) and 1 x R12 Sub-woofer cabinet (2 x 12" LF drivers)
  • Stable 3000W amplifier module
  • 2 x NL4 input and output connectors on each cabinet
  • For optimum performance, use with a Beta Three digital speaker management processor
  • Integrated rigging and speaker cabling included
  • Rigging allows adjustment of R6 in 1 degrees increments
  • Designed for high speech intelligibility and natural sounding music
  • Suitable for use as a main system with or without sub speaker augmentation
  • Permanent installation
  • Powder coated grill
  • Durable Polyurethane textured base paint
  • Available in either black or white
Construction:
  • R6II: 15mm Birch Plywood
  • R12a: 18mm Birch Plywood
Transducers:
  • R6II: 1 x Ribbon HF + 1 x 6.5" MF + 2 x 6.5" LF
  • R12a: 2 x 12" LF
Frequency Response (-3dB):
  • 40Hz-20kHz
Rated Power:
  • 3000W
Maximum SPL:
  • 124dB/130dB (Peak)
  • Input Impedance (Line):
  • 20k 8Ω balanced input
Dispersion (H x V):
  • 90 degrees x 10 degrees
Connector:
  • R6II: NL4
  • R12a: XLR for input, XLR for output
Dimensions:
  • R6II: 16.5" x 8.3" x 29"
  • R12a: 29" x 26.3" x 21.3"
Net Weight:
  • R6II: 38.5 lbs
  • R12a: 115.5 lbs
Packing Dimensions (1 Piece/Pack):
  • R6II: 19.9" x 12.2" x 34.5"
  • R12a: 32.1" x 25.8" x 34.5"
  • Flying Frame: 30.7" x 8.9" x 34.3"
Gross Weight:
  • R6II: 45.1 lbs
  • R12a: 129.8 lbs
  • Flying Frame: 31.9 lbs

* Mounting Brackets & Related Accessories Sold Separately
