Rosco DMG SL1 Lamp Head 200 Watts (inc Flat Dome diffusion)

Rosco's DMG SL1 powered by Rosco’s patented MIX® technology.

Filmmakers no longer need to sacrifice F-stops for color-mixing technology. The DMG SL1 is a slim-profile, ultra-bright soft light that provides superior, full-spectrum color rendering for set lighting. The ultra-thin, lightweight fixture features a powerful array of emitters that can produce virtually any color desired, and white light that looks fantastic on skin tones.

Note: This fixture requires a driver and power supply to operate – sold separately.

Features:

MIX® Technology:

Rosco’s patented MIX technology features six LEDs: Red + Lime + Green + Blue + Amber + White. This proprietary blend of emitters enables DMG SL1 fixtures to produce a wider gamut of colors than comparable RGBW/RGBA fixtures. The red, lime, and amber LEDs have also been phosphor-converted. This process not only fills in the spectral gaps found in other color mixing lights, it also optimizes the fixture’s output to better match the sensors of digital cameras.

Enhanced Skin Tones:

Rosco’s MIX technology enables DMG fixtures to generate a full-spectrum white light with a 1700K – 10,000K color temperature range. When lighting talent with a DMG SL1, filmmakers will notice enhanced skin tone reflectance because the unique, phosphor-converted MIX® LEDs produce more of the wavelengths found in all human skin tones.

True Rosco Color™:

The wider color gamut created by Rosco’s MIX technology also enables the DMG SL1 to create over 130 True Rosco Color™ gel matches. These colors have been verified – by eye, by meter, and by camera – to match traditional tungsten and daylight sources with Rosco gels on them.

Multiple Control Options:

Set lighting technicians know that speed is of the essence when the cameras are rolling. There are no complicated menus on the DMG SL1. Simply choose between five different modes: White Mode, Color Mode, Gel Mode, Effects Mode and Source Match Mode – then adjust the settings of the light as needed. All of these features are available using the fixture’s Driver accessory (sold separately) or via the free myMIX app from a mobile device. The DMG SL1 is also RDM compatible and can be controlled via wired DMX, wireless DMX using CRMX from LumenRadio, and ArtNet.

What’s In The Box:

• DMG SL1 Lamp Head

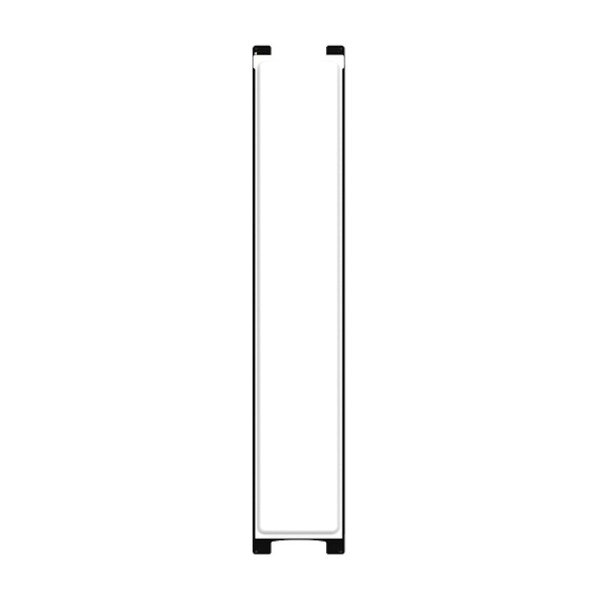

• Standard, Flat Diffuser Panel
• Note: Power Supply and Driver accessories are required and sold separately.

Specifications:

• Lux @ 1 meter (3.3 ft.): 4100 @ 3200K / 4036 @ 5600K
• Lux @ 3 meter (10 ft.): 552 @ 3200K / 544 @ 5600K
• Input Voltage: Via A/C Power Supply (sold separately): 100-240 VAC
• Input Voltage: Via Battery Adapter (sold separately): 12-35 VDC
• Maximum Power: 200W
• LED Colors: Red*, Green, Blue, Lime*, Amber*, White (4000K) * Denotes phosphor-converted LEDs that are unique to Rosco.
• Light Modes: WHITE / GEL (with True Rosco Color Gel Matches) / COLOR – HSI & XY (With Rec 709 & Rec 2020 overlays) / EFFECTS / SOURCE MATCH
• Color Temperature Range: 1700K – 10,000K
• Flicker-Free: Up to 4,000 FPS

Control Protocols: Via CT Driver (sold separately):

• Via Bluetooth using the myMIX app
• RDM enabled DMX 512 via 5-pin XLR
• Wireless via LumenRadio CRMX Timo FX transceiver
• ArtNet via LAN (RJ45) and WiFi (2.4 & 5.8GHz)

Construction:

• Dimensions: 44″ x 8″ x 1.4″ (111.8cm x 20.5cm x 3.7cm)
• Weight: 9.2 lbs (4.18 kg)
• Body Material: Aluminum
• Circuit Board Material: Aluminum

DMG MINI & DMG SL1 Datasheet
DMG Controller User Manual.pdf
DMG DMX Profiles.pdf
DMG MINI & DMG SL1 CE Declaration.pdf
DMG SL1 & MINI User Manual.pdf
DMG Warranty.pdf
Case Study: How To Create Custom Skin Tone Lighting The myMIX App & DMG Lights by Joel Svendsven
